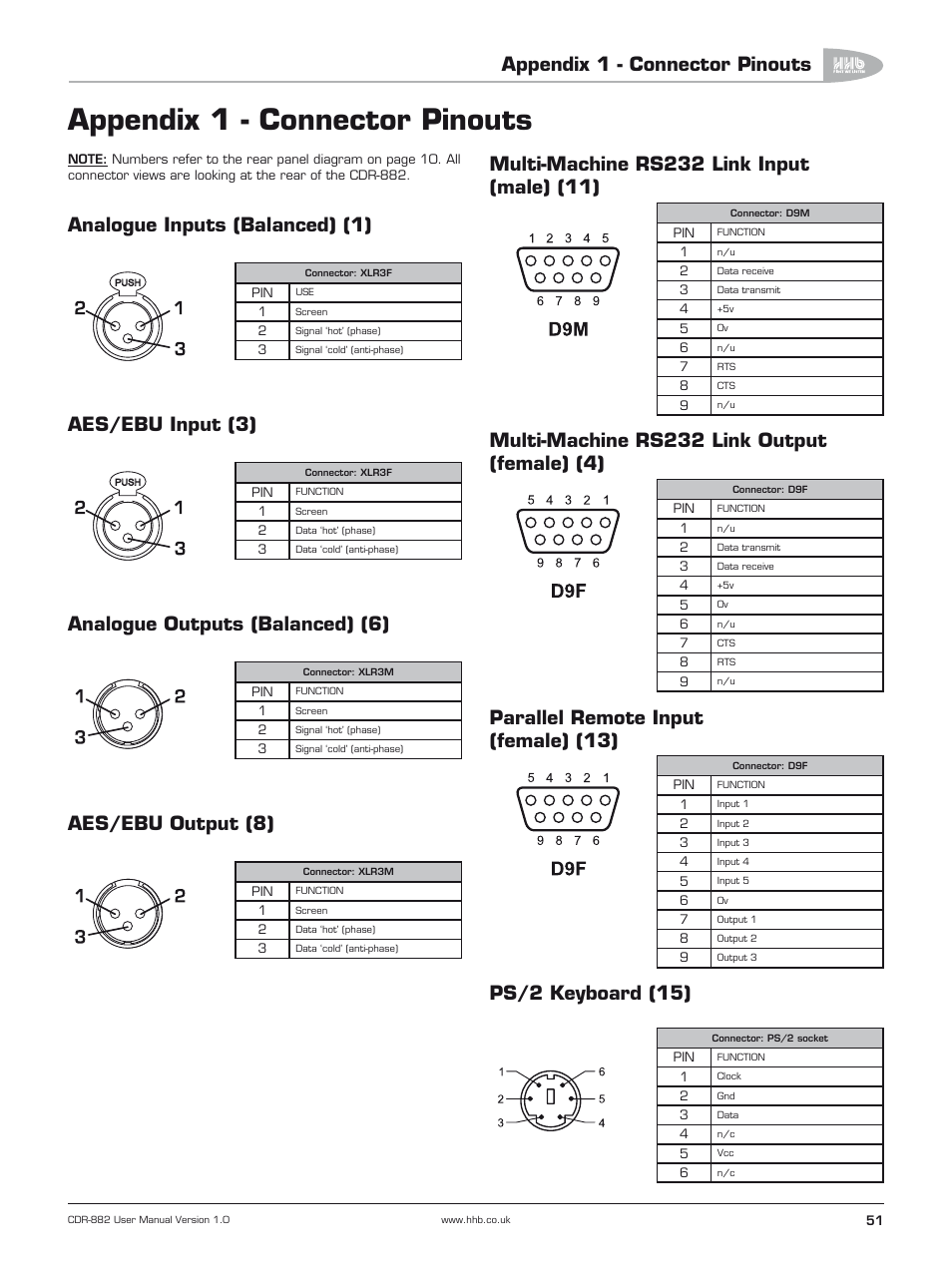

Appendix 1 - connector pinouts, Analogue inputs (balanced) (1), Aes/ebu input (3) – HHB comm CDR-882 User Manual

Page 52: Analogue outputs (balanced) (6), Aes/ebu output (8), Multi-machine rs232 link input (male) (11), Multi-machine rs232 link output (female) (4), Parallel remote input (female) (13), Ps/2 keyboard (15)

Appendix 1 - connector pinouts, Analogue inputs (balanced) (1), Aes/ebu input (3) | Analogue outputs (balanced) (6), Aes/ebu output (8), Multi-machine rs232 link input (male) (11), Multi-machine rs232 link output (female) (4), Parallel remote input (female) (13), Ps/2 keyboard (15) | HHB comm CDR-882 User Manual | Page 52 / 66 Appendix 1 - connector pinouts, Analogue inputs (balanced) (1), Aes/ebu input (3) | Analogue outputs (balanced) (6), Aes/ebu output (8), Multi-machine rs232 link input (male) (11), Multi-machine rs232 link output (female) (4), Parallel remote input (female) (13), Ps/2 keyboard (15) | HHB comm CDR-882 User Manual | Page 52 / 66
