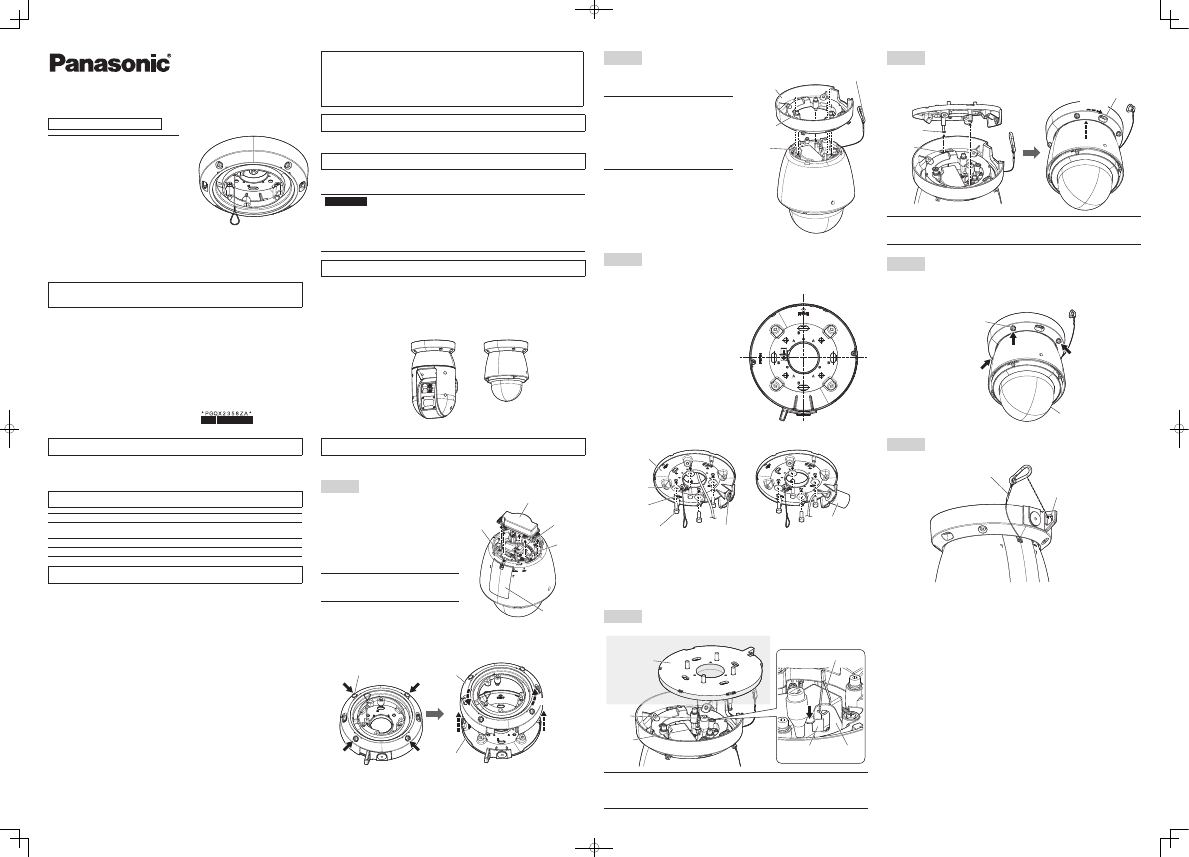

i-PRO WV-QCL500-S Ceiling Mount Bracket (Silver) User Manual

Operating instructions, Wv-qcl500-s, Ceiling mount bracket

Operating Instructions

Included Installation Instructions

Ceiling Mount Bracket

Model No.

WV-QCL500-S

Caution:

Before attempting to connect or operate this product, please read these instructions carefully.

Notice:

This equipment is not suitable for use in locations where children are likely to be present.
Do not install this product in locations where ordinary persons can easily reach.
For information about screws and brackets required for installation, refer to the

corresponding section of this document.

Standard accessories

Operating Instructions (this document) ........................................................................................1 pc.

Other items that are needed (not included)

M8 screw .................................................................................................................................. 4 pcs.
M8 flat washer / spring washer ................................................................................... 4 pcs. for each

IMPORTANT

The installation surface is horizontal.
Minimum pullout strength: 1539 N {346 lbf} (per 1 pc.)
This value indicates the minimum pull-out strength required value per screw. For information

about the minimum pull-out strength, refer to our support website .

Select screws according to the material of the location that the camera will be mounted to.

In this case, wood screws and nails should not be used.

Precautions for installation



In order to prevent injury, the product must be securely mounted to the ceiling
according to the Installation Guide of this bracket.



Mounting method for this product

This product is designed to be used as a pendant mount camera. If the product is mounted on a
desktop or at a slant, the camera may not work correctly and its lifetime may be shortened.



Make sure to remove this product if it will no longer be used.

Step 2

Attach the cover of this product to the top of the camera.

Recommended tightening torque

: 2.45 N·m {1.81 lbf·ft}

NOTE

Do not use the “cable cover” included with

the camera.

Use a 4 mm {5/32 inches} hexagon

wrench (locally procured) to tighten the
camera fixing screws (3 places).

As shown in the illustration at right, put the

safety wire on the outside of the cover of
this product.

Step 3

Get the ceiling ready and attach the base of this product to the ceiling.

Fixing screws: M8 screws
(flat washer / spring washer)
Minimum pullout strength: 1539 N {346 lbf} (per 1 pc.)

Make screw holes or anchor holes in the ceiling,

and also wiring holes if necessary.
Possible installation dimensions
A: 71.8 mm × 71.8 mm {2-3/16 inches × 2-3/16 inches}
B: 120.5 mm × 120.5 mm {4-3/4 inches × 4-3/4 inches}

When wiring through the ceiling, make a ø30 mm

{ø1-3/16 inches} hole in the center.

Cover

Camera fixing

screws (3 places)

Positioning

pin (3 places)

Safety wire

Step 5

Put the cover of this product which has been attached to the top
of the camera so the fitting holes (2 places) fit over the
positioning pins on the base that has been fixed to the ceiling,
the turn clockwise approximately 10° to temporarily fix in place.

Approx. 10°

Fitting hole

(2 places)

Positioning pin

(2 places)

Fitting hole (2 places)

NOTE

When temporarily fixing the camera to the base of this product, make sure you are

holding the cover of this product.

Step 6

Tighten the cover fixing screws (4 places) alternating diagonally
with a 4 mm {5/32 inches} hexagon wrench (locally procured) to
fix the cover attached to the camera to this product. (

)

Recommended tightening torque

: 2.45 N·m {1.81 lbf·ft}

Fixing screws

for cover portion

(4 pleces)

When wiring through the ceiling

Base

Fixing screws (4 pcs.)

(M8: locally procured)

Cap for the

female thread

for the conduit

Flat washer (4 pcs.)

(M8: locally procured)

Spring washer (4 pcs.)

(M8: locally procured)

When wiring through the side hole

Conduit



When using the conduit on the ceiling
for wiring, remove the cap for the female
thread for the conduit by using a
hexagon wrench (ISO 2936, width across
flats S=5 mm {3/16 inches}).
The female thread for conduit is compliant
with ANSI NPSM (parallel pipe threads) 3/4
or ISO 228-1 (parallel pipe threads) G3/4.

Step 4

Hang the camera from the base of this product with the installed
auxiliary wire and connect the cables.

Surface of the base

installed on the

ceiling

Installed

auxiliary

wire

Wire hook

Wire stopper

Installed auxiliary wire

Ceiling

NOTE

There are some cables to be connected that need to be waterproofed. Refer to the

Installation Guide for the camera for information on which cables need waterproofing and
how to waterproof them.

Step 7

Attach the safety wire of the camera to the wire hook section on
the base of this product.

Safety wire

Wire hook section

Refer to the Operating Instructions for the camera for information about further adjustments
(connecting power to the camera, adjusting the angular field of view).

Installation

These instructions use the PTZ type camera (WV-X6531N) to describe installation. Refer to the
Installation Guide for each camera for detailed installation information and procedures.

Step 1

Make preparations before installation.

1 Where necessary, remove the cable

case and insert an SD memory card.

When the only necessary connection to

camera is an Ethernet cable

Do not remove the cable case.

When using 24 V AC, EXT I/O device, or
audio input / output device

Remove the cable case.

NOTE

Waterproof the unused cables using the

waterproof tape (camera accessory).

2 Remove the cover from the base of this product.

Loosen the cover fixing screws (4 places)

using a 4 mm {5/32 inches} hexagon wrench
(locally procured).

Rotate the cover approximately 10°

counterclockwise and remove.

Cover fixing

screws (4 places)

Cover

Base

Approx. 10°

Main sunshield

rear cover

Power

cable

RJ45 (female)

Network cable

Alarm input/

output·

Audio input/

output cable

Cable case

Before attempting to connect or install this product, please read these instructions carefully

and save this manual for future use.

The external appearance and other parts shown in this manual may differ from the actual

product within the scope that will not interfere with normal use due to improvement of the
product.

Panasonic i-PRO Sensing Solutions Co., Ltd. assumes no responsibility for injuries or

property damage resulting from failures arising out of improper installation or

operation inconsistent with this documentation.

Preface

This product is used to mount the PTZ type camera on the ceiling.
For the latest information about the supported cameras, refer to our support website
(https://security.panasonic.com/training_support/support/info/).

Specifications

Ambient operating temperature: –50 °C to +60 °C {–58 °F to +140 °F}
Dimensions:

ø229 mm × 55 mm (H)
{ø9-1/32 inches × 2-5/32 inches (H)}

Mass:

Approx. 1.3 k

{2.87 lbs}

Finish:

Aluminum die cast Silver

Precaution



Refer installation work to the dealer.

Installation work requires technique and experience. Failure to observe this may cause fire,
electric shock, injury, or damage to the product.
Be sure to consult the dealer.



Install the product securely on a ceiling in accordance with the installation
instructions.

Failure to observe this may cause injury or accidents.



Do not use this bracket except with suitable cameras.

Failure to observe this may cause a drop resulting in injury or accidents.



Do not install this product on a place that is greatly influenced by wind.

Installation on a place where the wind speed is 60 m/s {approx. 134 mph} or more may cause a
fall of the product resulting in injury or accidents.

When using this product, also read the “Precautions” described in the operating
instructions for the camera to be attached.

For U.S. and Canada:

Panasonic i-PRO Sensing Solutions

Corporation of America

800 Gessner Rd, Suite 700 Houston, TX 77024

https://www.security.us.panasonic.com/

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario, L4W 2T3 Canada

1-877-495-0580

https://www.panasonic.com/ca/

For Europe and other countries:

Panasonic Corporation

http://www.panasonic.com

Panasonic i-PRO Sensing Solutions Co., Ltd.

Fukuoka, Japan

Authorised Representative in EU:

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsbergring 15, 22525 Hamburg, Germany

Fs0320-0

Printed in China

WV-X6533LN
IR PTZ camera series

WV-X6531N
PTZ camera series
