V1.0 SM2020010426

23

EXCELL PRECISION CO., LTD.

2. RELAY OUTPUT

(1) Relay Output

Relay’s function acts as signal output in the check-weighing mode. When an object’s

weight value reaches one of the setting points (HI, OK, LOW), the relay outputs a signal

through PIN 1, PIN2, or PIN 3. To set the check-weighing configuration by pressing the

key (in TW & AW models) or enter F4 (please refer to page 12 or 16 for operations).

(2) Relay Pin Description

PIN 1

OK

output

PIN 2

High output

PIN 3

Low

output

PIN 4

VDD

PIN 5

GND

PIN 6

COMMON

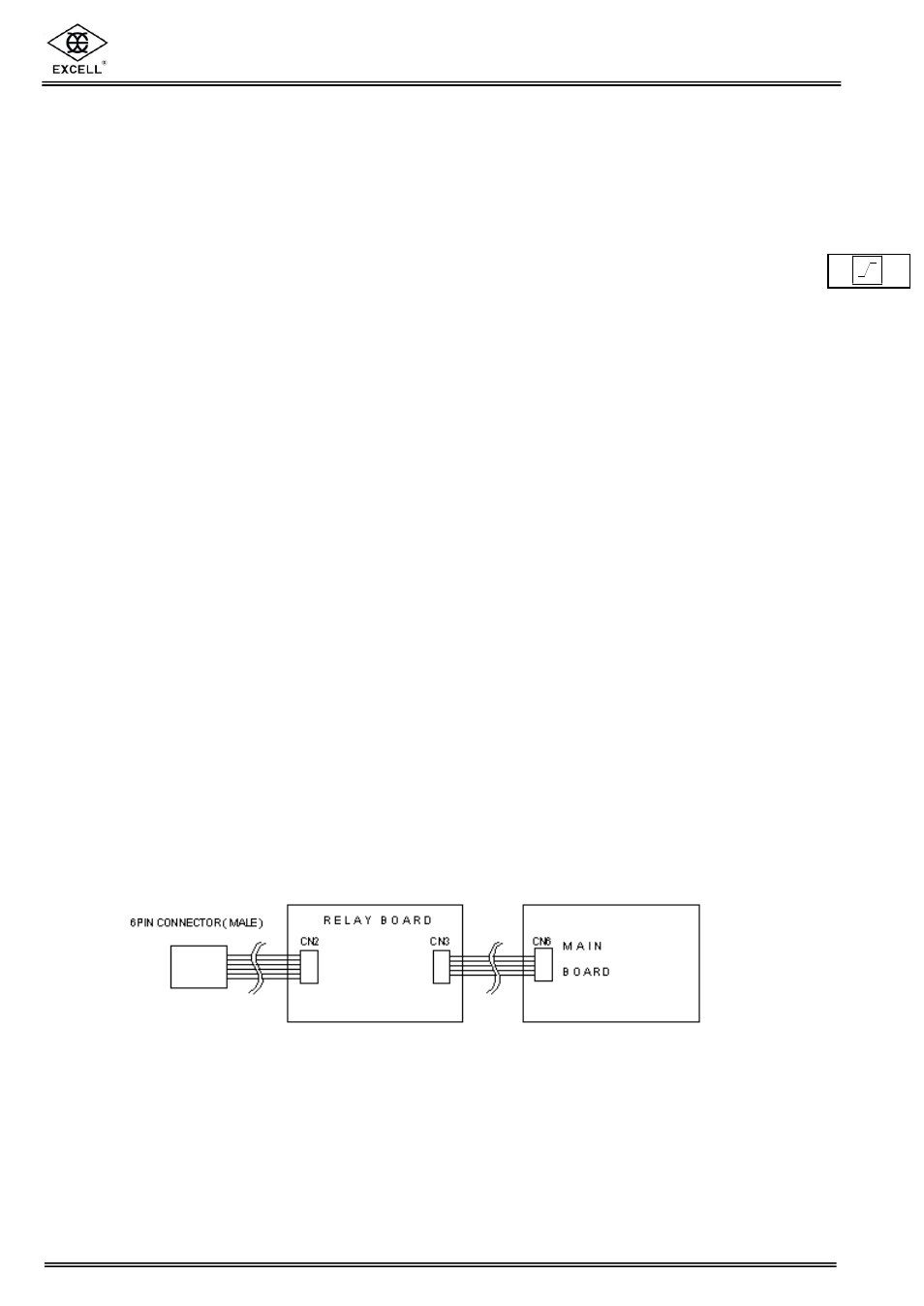

(3) Connection Illustration
