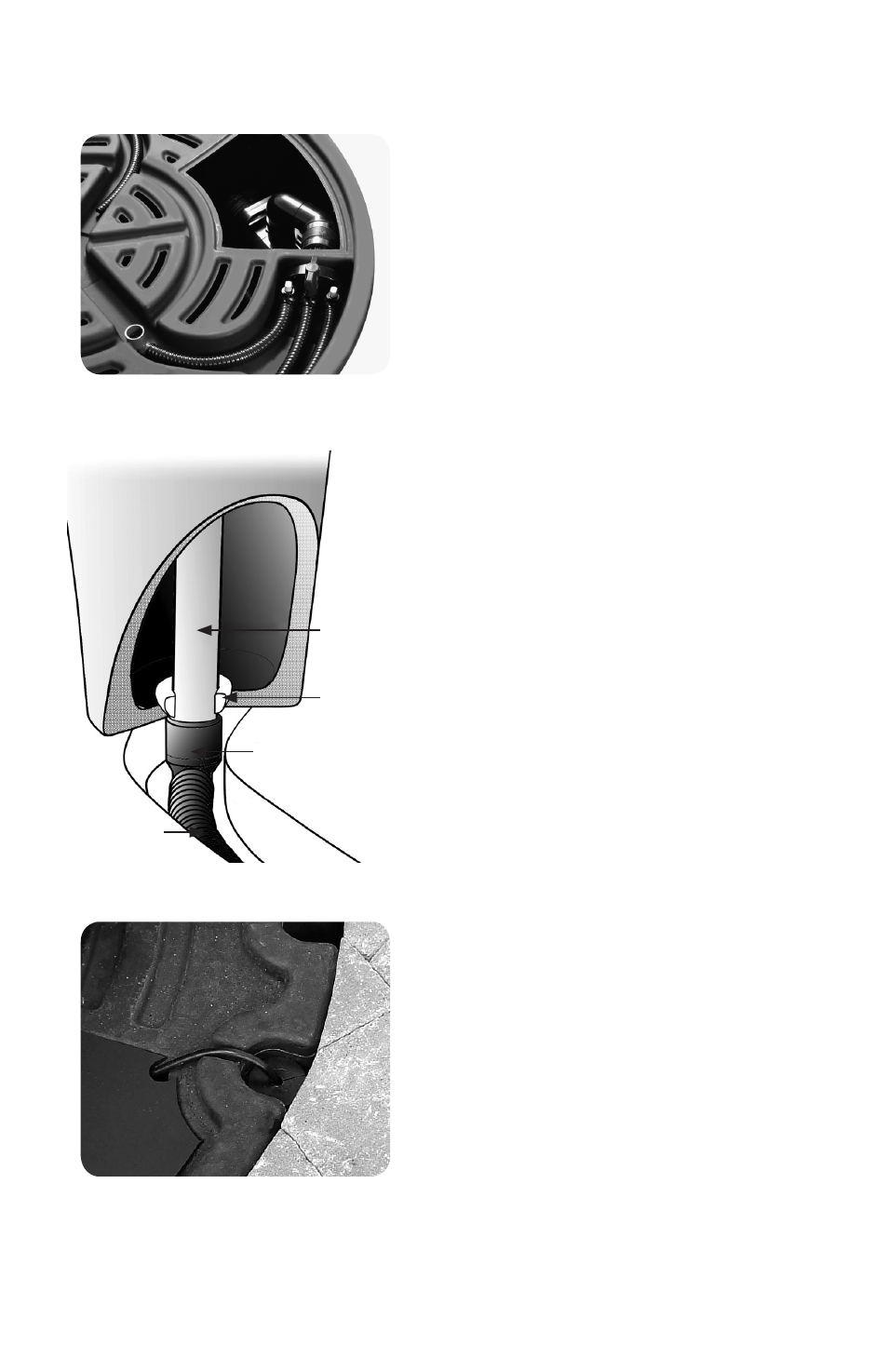

Step 2:
20’ of ¾” non kink tubing is included
in this kit. Tubing must be cut to length
on site based on the requirement of the
installation. Begin by installing one end
of the tubing to the outlet of the 3-way
manifold that is closest to the center
of the basin. Loop the tubing into the
first plumbing channel and cut it to the
desired length. Insert the barbed end
of the ¾” elbow into the open end of
the tubing. Repeat this process for the
remaining manifold outlets.
Step 3:
Place the decorative items (urns,
columns or drilled boulders) on the
fountain basin and position directly over
the ¾” elbows. Run the ¾” PVC
standpipe (not included) through the
decorative item and into the socket
end of the ¾” elbow. Seal the opening
around the standpipe with the supplied
standpipe sealant. Standpipe sealant
is an EPDM based product that will
remain pliable and can be reused.
Step 4:
Atlantic’s Pro Series Fountain Basins
have recessed pockets that allow
1½” conduit sleeves to be installed
within the radius of the basin. This
feature allows access to the pump
cord and low voltage wiring when
surrounding the basin with pavers or
other hardscape materials. Two 1½”
cord stoppers are included to plug the
top of the sleeves to prevent gravel
and other debris from entering
the conduit.
3/4” PVC
STANDPIPE
(not included)
STANDPIPE
SEALANT
3/4” INSERT X
3/4” SOC 90˚
3/4” KINK
FREE TUBING
