Introduction
Thank you for selecting the Atlantic Fountain Basin Kit. Before using this
kit please take a moment to review this manual.
Installation Instructions
Step 1:

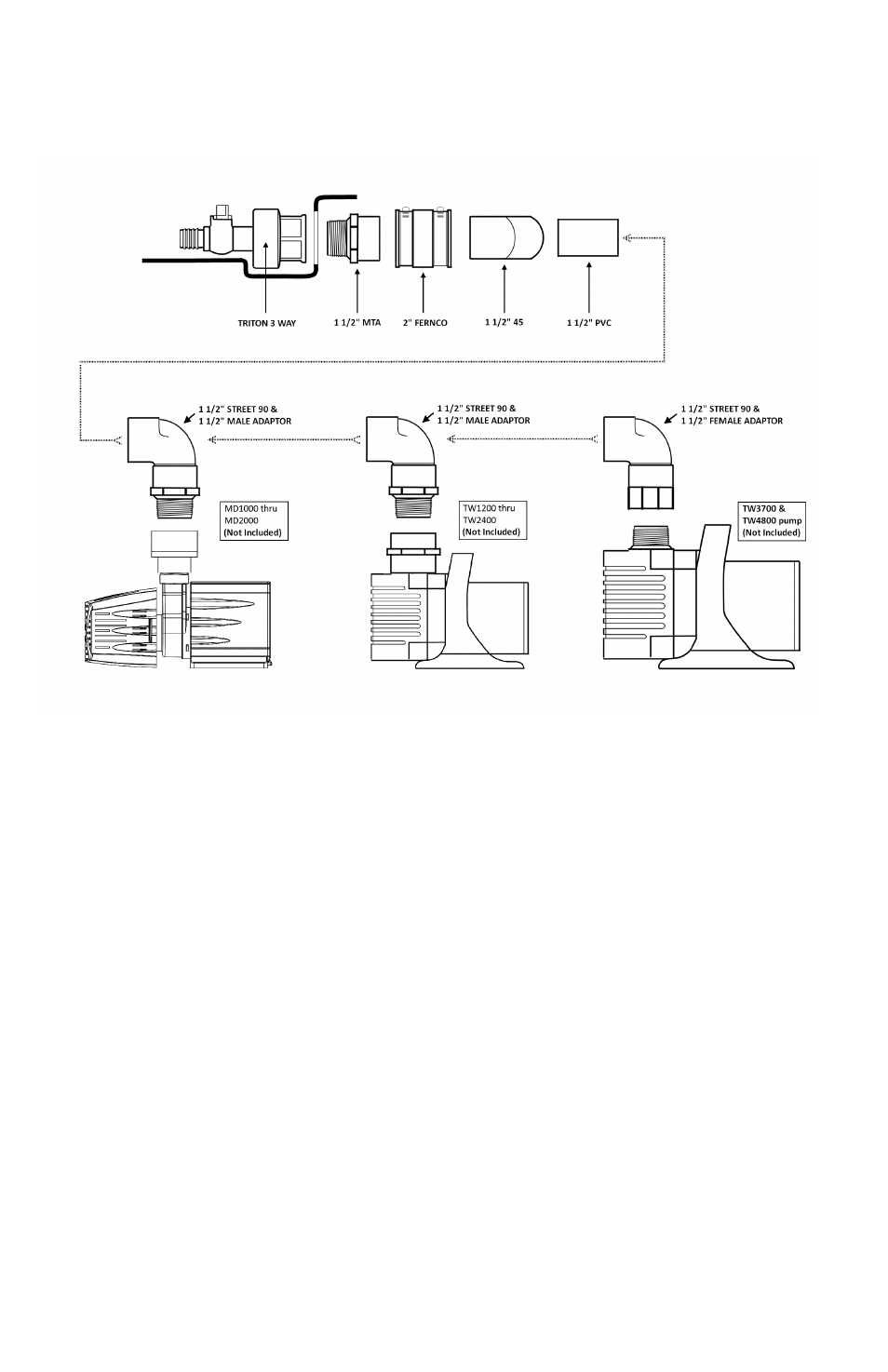

The above diagram shows the proper installation of the discharge fittings
and Triton 3-way manifold when used with the FB4600 Fountain Basin and
TidalWave pumps. Discharge fittings are included for the connection of the
MD1000/1250/1500/2000 as well as the TW1200/1900/2400/3700/4800.
If installing the MD1000/1250/1500/2000 the 1” to 1½” adapter fitting
included with the pump must be used to accept the 1½” male thread
adapter. If installing a TW1200/1900/2400 the threaded coupling that is
supplied with the pump must be used to accept the 1½” male thread
adapter. If installing a TW3700 or TW4800, the threaded coupling that is
supplied with the pump will need to be removed to accept the 1½” female
thread adaptor.
NOTE:
This plumbing kit is intended for use with the fb4600 fountain basin. This plumbing kit can be
installed with the fb3200 fountain basin, however, the
triton 3 way manifold must be installed
inside the pump chamber and accessed by removing the pump cover. The fb3200 is supplied
with one predrilled hole that will accept a feed line up to 1” in diameter. Additional holes will
need to be drilled on site to install this plumbing kit. Drill points have been provided on
either side of the factory opening to show the proper location for additional feed lines.
