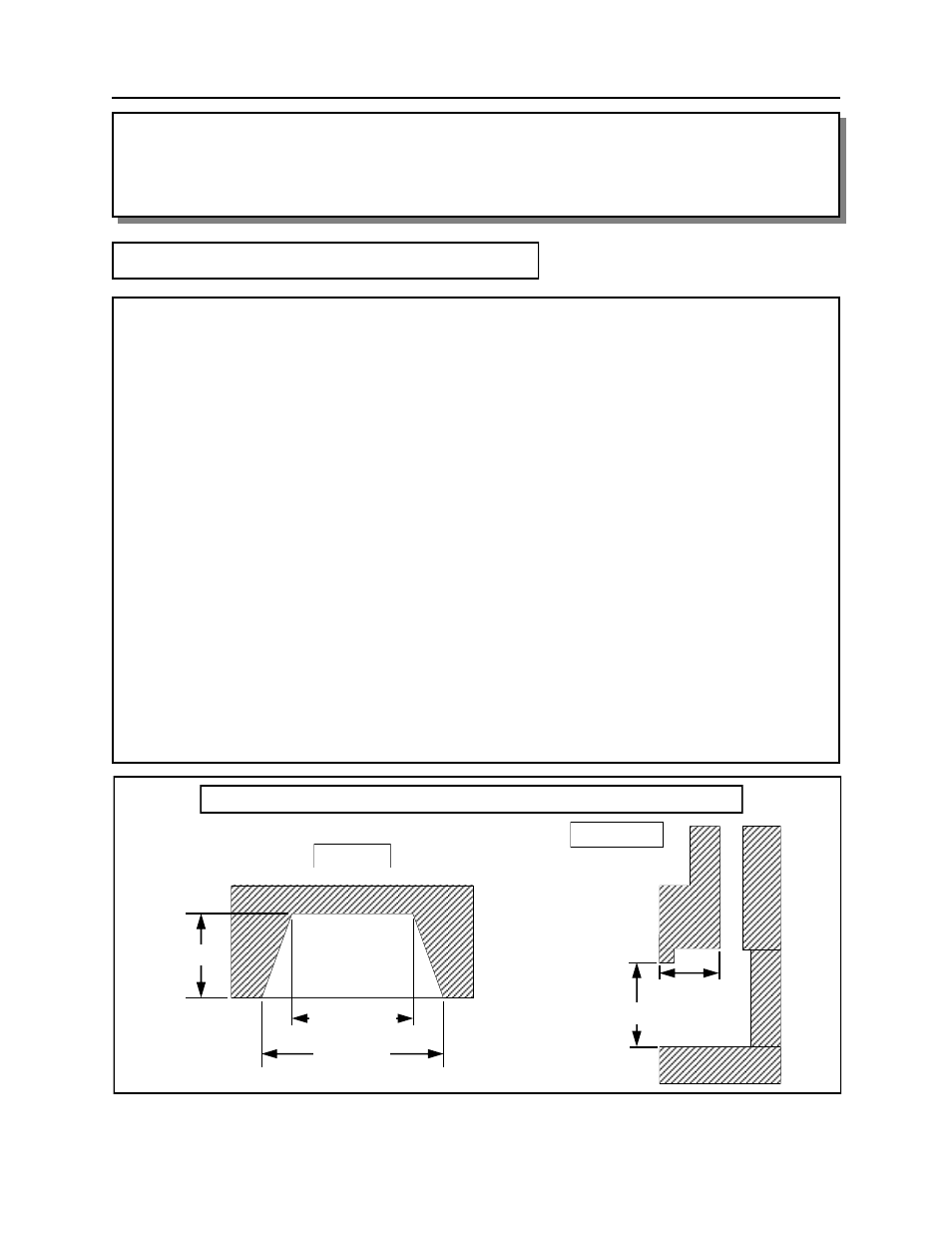

HOST GAS FIREPLACE PREPARATION

The following procedures must be conducted by a qualified gas appliance
installer.

Double check the minimum firebox dimensions.

Disconnect electrical power and gas supply.

Remove the burner or sandpan, pilot, and all parts of the gas train assembly.

Attach the Archgard modification warning plate (see sample, page 26) to the
host fireplace label.

Attach the warning label (see sample, page 26) provided with the EURO 25
insert to the back of the firebox.

Remove or trim any baffles inside the firebox that may be obstructing the
direct passage to the flue connector.

Remove or trim any decorative facing or baffles inside the firebox that may
interfere with the insertion of the EURO 25 insert.
WARNING: Do not cut or remove the firebox. The integrity of the firebox
envelope must be maintain to prevent a possibility of a fire
hazard. This warning does not apply to model specific tested and
approved instructions provided by Archgard Industries Ltd.
MINIMUM GAS FIREPLACE FIREBOX INTERNAL DIMENSIONS
17” (432 mm)
25” (635 mm)
12” (305 mm)
TOP VIEW
15 ¼” (387 mm)
SIDE VIEW
4 ½” to 7 ½”
APPENDIX A
EURO 25 INSTRUCTIONS FOR
INSTALLATION INTO VENTED GAS FIREPLACES
