LEDs

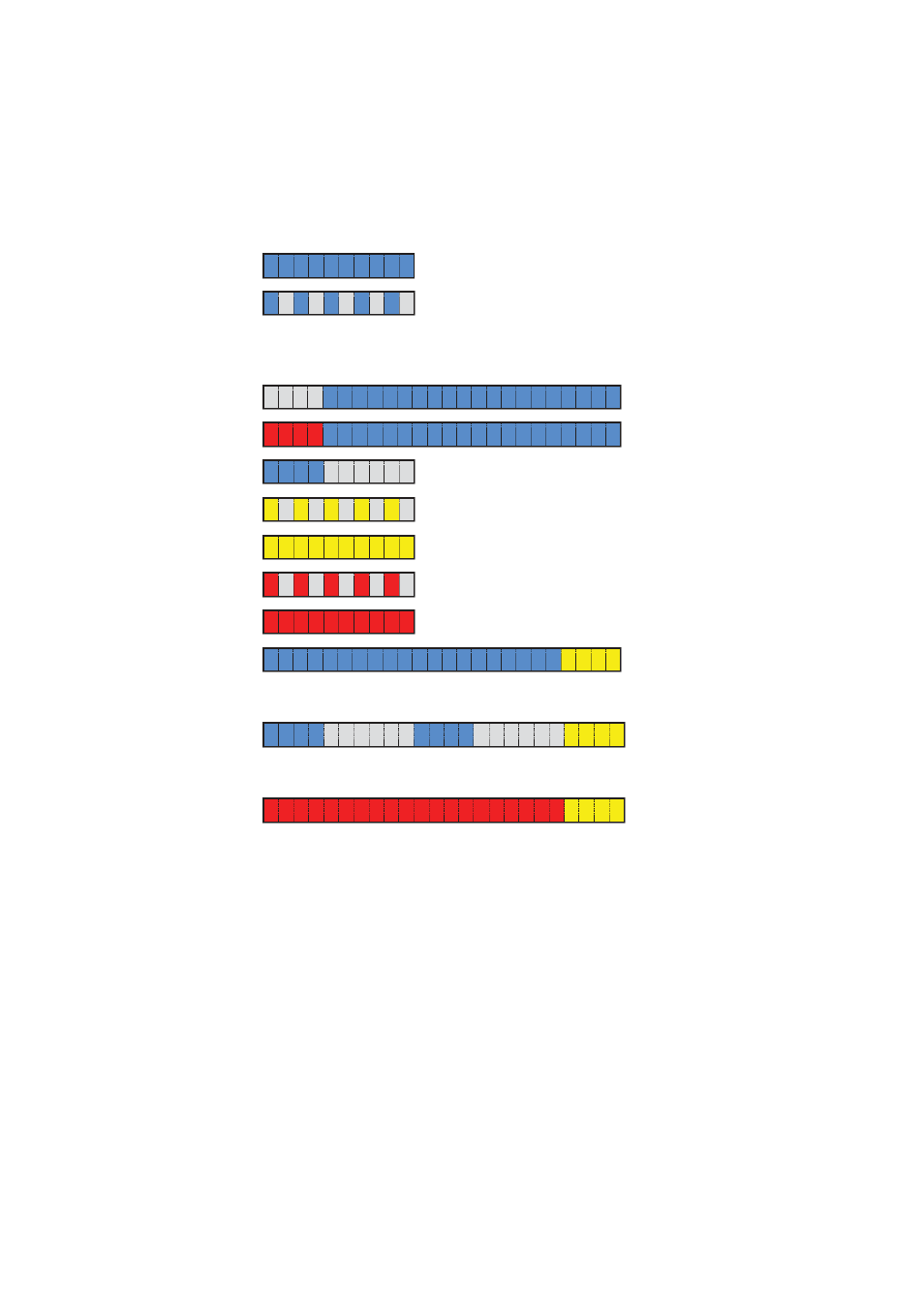

The IP1202 has one RGB LED to indicate status. This section describes the different indications and
when they shall be used. In the illustrations below: Each blink pattern is represented by a number of
blocks where each block is 100 ms. Light grey blocks means that the LED is off. Whenever the
indication is changed the new pattern always starts from the first block.
Idle/OK IP1202 operational and
no traffic on the IP1202.
Starting up/
searching
The IP1202 is in start-up
phase, e.g. waiting for
parameters from PARI
Master, or is searching
for air synchronization.
Active traffic IP1202 operational and
traffic on the IP1202.
Fully occupied for
speech traffic
Fully occupied with
speech traffic.
Software
download Download of firmware in
progress.
Mini firmware The IP1202 is in mini
firmware mode.
TFTP mode TFTP mode.
Error
No Ethernet connection.
Fatal error Fatal hardware error.
Deployment:
Good sync
The IP1202 is in
deployment mode and
has good air sync
coverage.
Deployment:
Bad sync
The IP1202 is in
deployment mode and
does not have adequate
air sync coverage.
Deployment:
No sync
The IP1202 is in
deployment mode and
has no air sync
coverage.
