IV. PLUMBING INSTRUCTIONS
Figure 4 details the unit’s plumbing connections. All plumbing connections are through the bottom of the unit. There are two unit
drains and one fill connection.

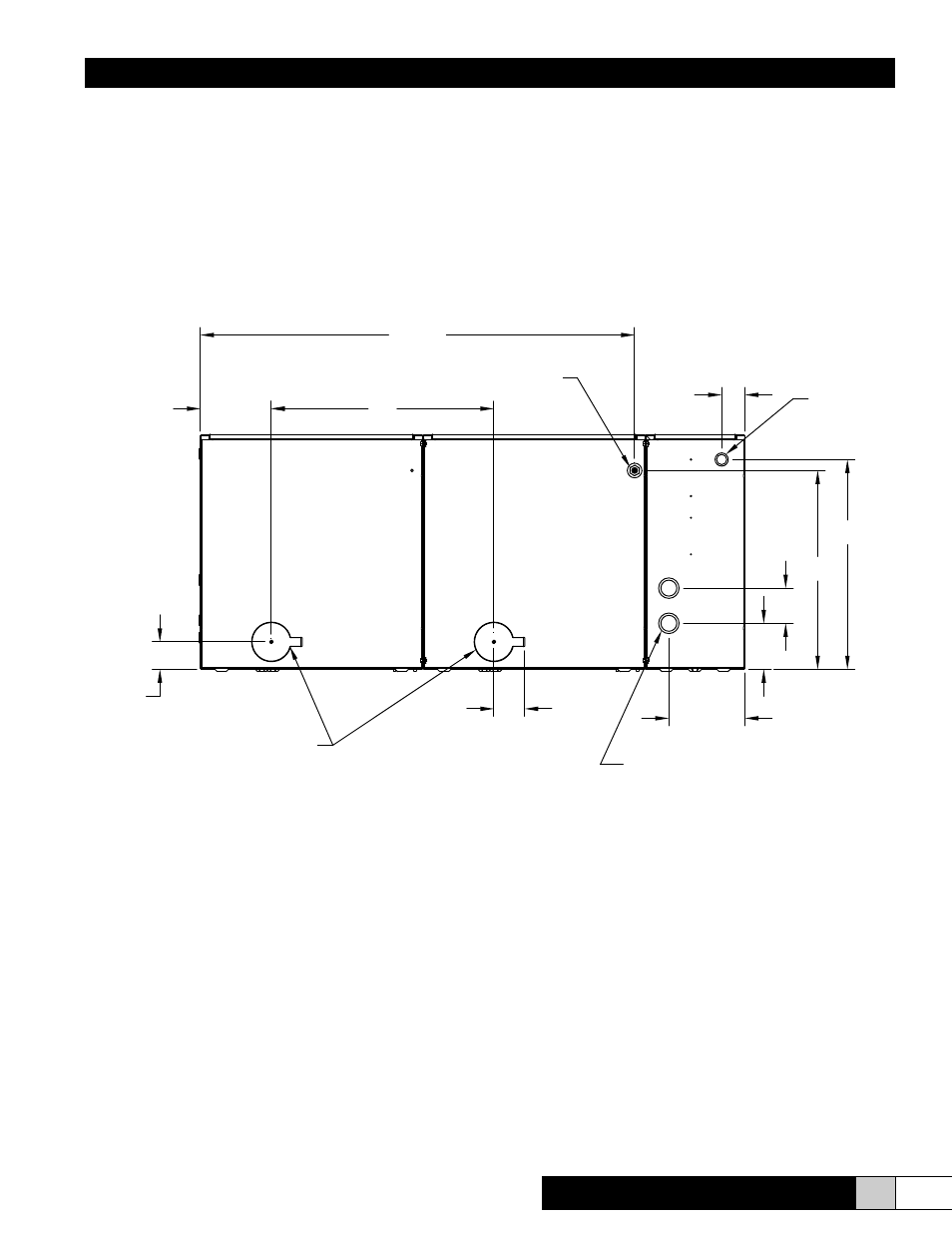

Figure 4 - Plumbing Connections
33 1/8"
4 1/4" 17"
2 11/32"
Typ.
6 1/2"
3"
3"
16"
17"
2"
Knockout for
Control Wiring
(7/8 X 1 1/8)
(2) Knockouts
for Main Power Supply
(1 1/4 x 1 3/4)
Fill Connection
1/4" Compression
2 19/32""
Typ.
Unit/Cabinet Drain Resevoir
3/4" I.D. Hose
Figure 4 - Bottom View - Plumbing Connections
