Replacement parts list – Fire Magic 36-VH Vent Hood User Manual
Page 8
REV 2 - 1502191555
L-C2-387
8
36-VH-6
42-VH-6
48-VH-6
60-VH-6
Item
Description
Part No.
Qty.
Part No.
Qty.
Part No.
Qty.
Part No.
Qty.
1.
Transition
VH-11
1
VH-11
1
VH-11
1
VH-11
1
2.
Wall mount bracket
VH-17-6
1
VH-19-6
1
VH-22-6
1
VH-21-6
1
3.
Complete vent hood assembly
VH-36-01-6
1
VH-42-01-6
1
VH-48-01-6
1
VH-60-01-6
1
4.
Light assembly*
VH-12-6
2
VH-12-6
2
VH-12-6
2
VH-12-6
2
5.
120V / 50 watt halogen light bulb*
VH-23
2
VH-23
2
VH-23
2
VH-23
2
6.
Light lens*
VH-24
2
VH-24
2
VH-24
2
VH-24
2
7.
Control switch*
VH-25
2
VH-25
2
VH-25
2
VH-25
2
8.
Control knob
VH-26
2
VH-26
2
VH-26
2
VH-26
2
9.
Complete fan assembly
VHF-1200-6
1
VHF-1200-6
1
VHF-1200-6
1
VHF-1200-6
1
10.
Baffl e
VH-36-04
1
VH-42-04
1
VH-48-04
1
VH-60-04
1
11.
Grease fi lter
(set of 4 or 6)
VH-16-4
1
VH-18-4
1
VH-15-4
1
VH-18-6
1
12.
Filter spacer
(42" models only)
n/a
n/a
VH-42-03-06
2
n/a
n/a
n/a
n/a
13.
Vent hood wire harness*
VH-27
1
VH-27
1
VH-27
1
VH-27
1
14.
Thermal switch*
VH-28
1
VH-28
1
VH-28
1
VH-28
1
* Not shown
Replacement parts can be
ordered from your local Fire
Magic
®
dealer.
Robert H. Peterson Co. • 14724 East Proctor Avenue, • City of Industry, CA 91746
REPLACEMENT PARTS LIST

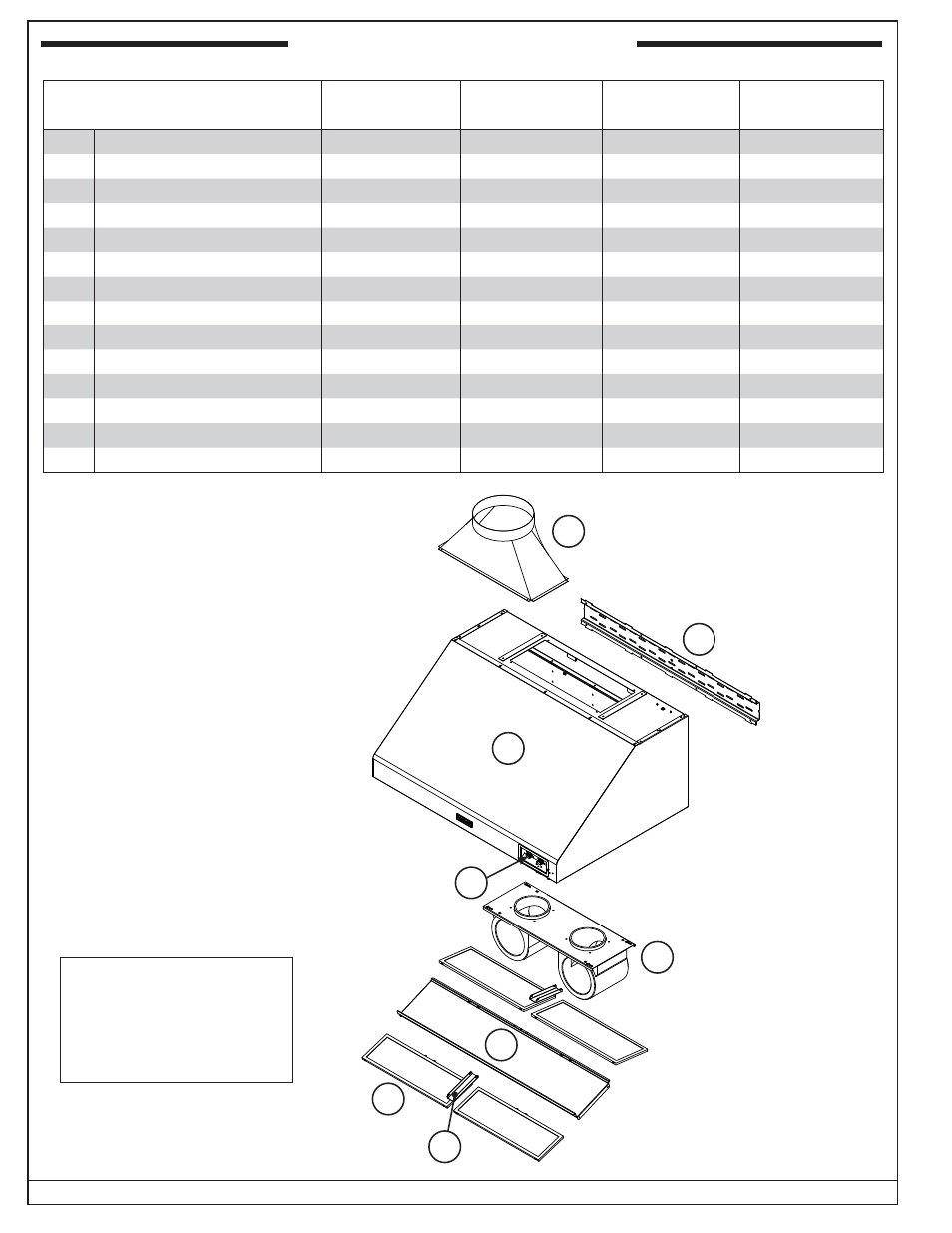

42-VH-6 model shown
IMPORTANT
Remove all packing
material (including any
protective coatings) and
discard prior to use.
2
1
9
10
12
3
8
11
