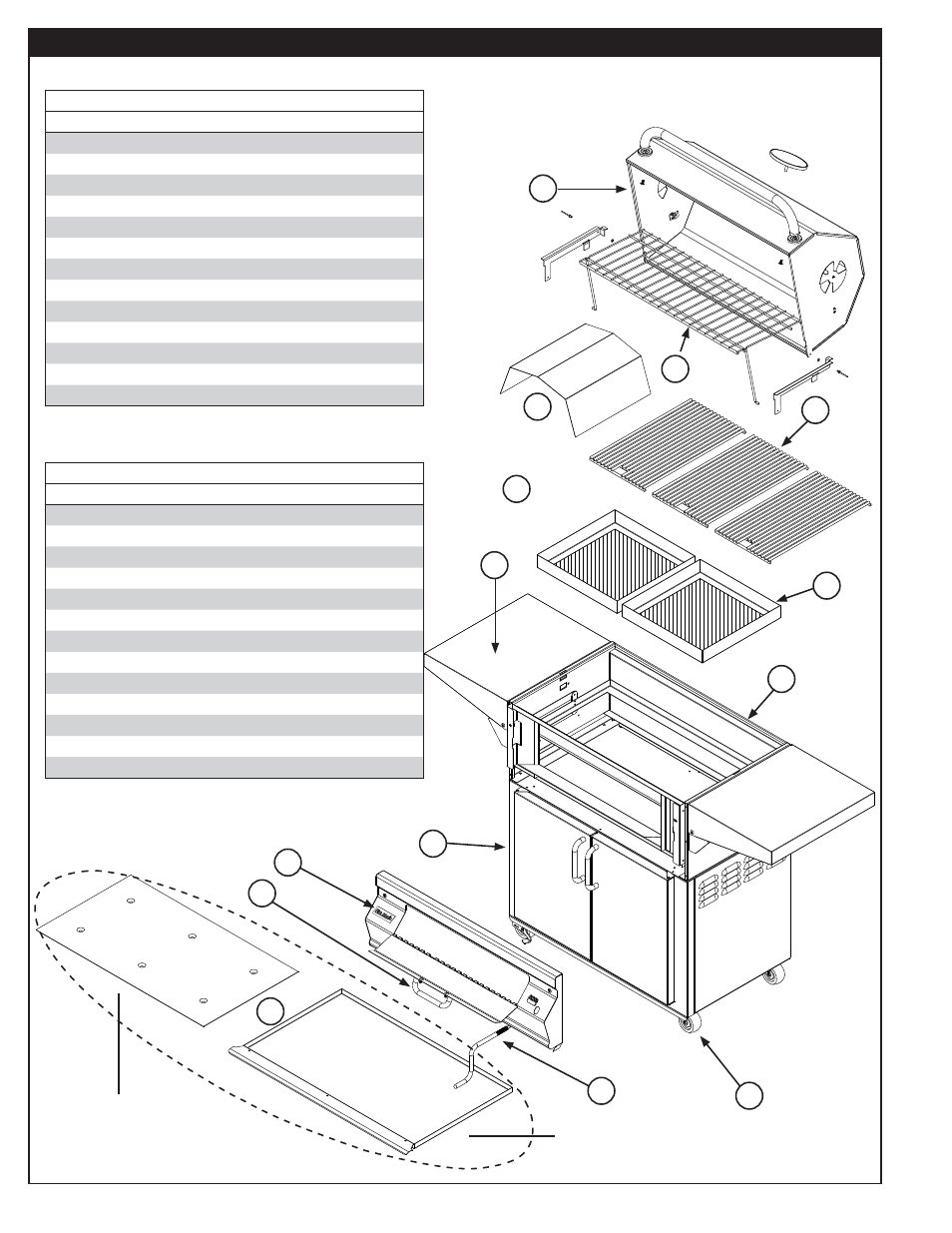

SMOKER STAND ALONE PARTS LIST
3
4
7
8
9
5
1
2
Drip tray
heat shield
Drip tray
10
11
12
6
CUSTOM I
Item no. Part no. Description
1. 23759-C Smoker hood
2. 3542-S-2 Cooking grids, stainless steel (2)
3. 3305 Charcoal shield
4. 3302-S Charcoal pan
5. 400365 Liner assembly
6. 25326-015 Shelves
7. 25326-014 Cart base
8. 3400-7 Casters set only
9. 3137-06 Face
10. 3900-40 Handle only
11. 23302 Crank
12. 3081 Drip tray assembly
13. 3672C Gourmet warming rack
REGAL I
Item no. Part no. Description
1. 23763-C Smoker hood
2. 3543-S-3 Cooking grids, stainless steel (3)
3. 3305 Charcoal shield
4. 3304-S Charcoal pan (2)
5. 400366 Liner assembly
6. 25326-015 Shelves
7. 25361-014 Cart base
8. 3400-7 Casters set only
9. 3162-06 Face
10. 3900-40 Handle only
11. 23302 Crank
12. 3082 Drip tray assembly
13. 3673C Gourmet warming rack
Note: 24" model shown.
13
Replacement parts can be
ordered from your local
Fire Magic ® dealer.
