SPECIFlCATlONS
TOYOTOMI Portable Kerosene Heater Model KS-27A
Heat rating 2,470kcal/9,800BTU/h
Fuel tank capacity 5.9 lit
Burning time/tank* 21 Hours
Size(W x H x D) 440 x 440 x 470mm
Weight 7.7kg
* Depending on wick setting, condition and fuel quality.

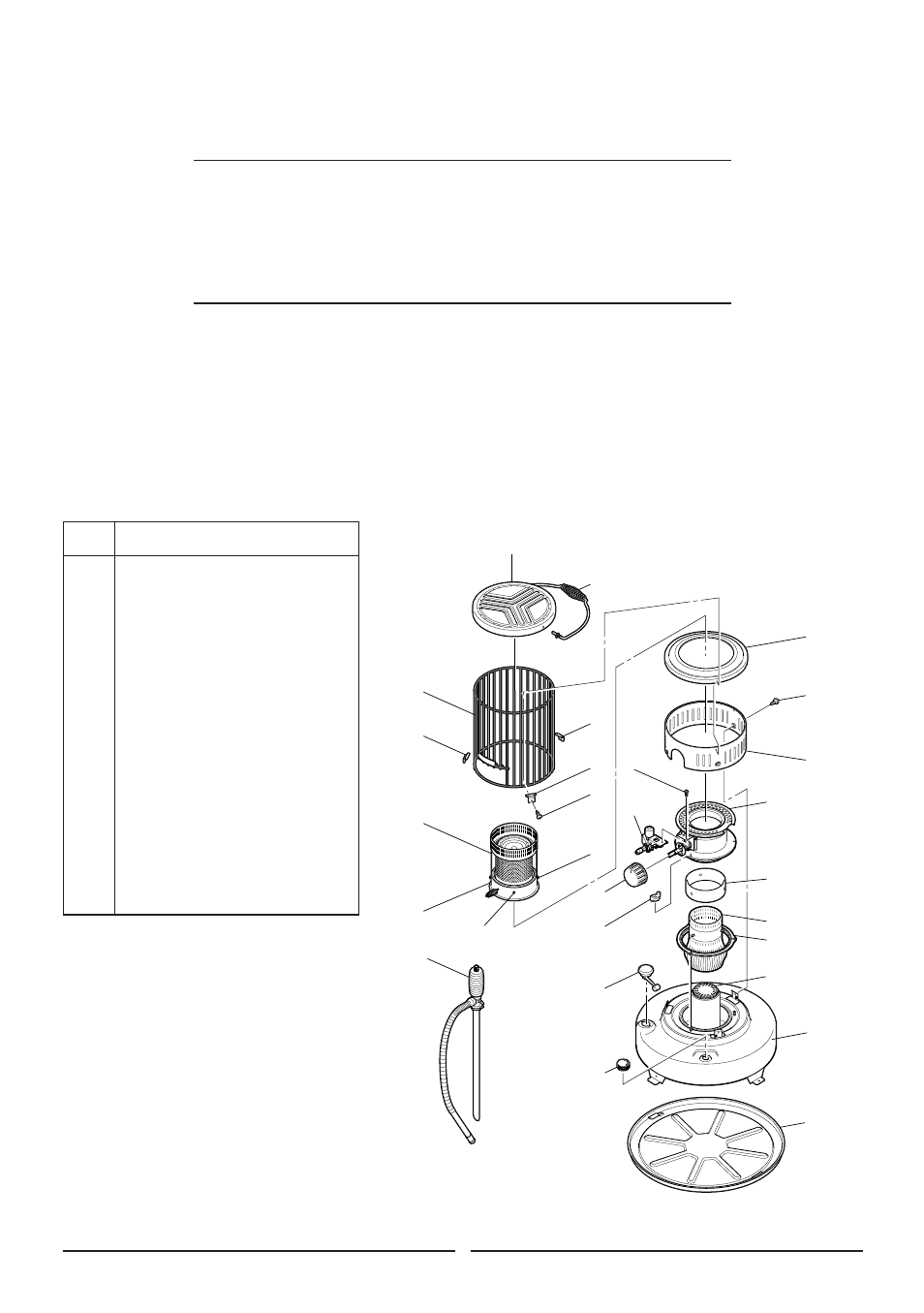

COMPONENT PARTS
5
REF# PART NAME
1. Guard assembly
2. Carrying handle
3. Top plale
4. Heat chamber assembly
5. Glass cylinder
6. Push ring
7. Cross pin
8. Guard retainer
9. Screw
10. Wick adjuster with pendulum assembly
11. Pendulum assembly
12. Wick adjuster knob
13. Screw 1A
14. Wing nut
15. Wick sleeve
16. Glass fiber wick
17. Rubber packing
18. Fuel tank assembly
19. Fuel gauge
20. Fuel tank cap
21. Primary air tube cover
22. Screw E
23. Reflector
24. Under Outer Cover
25. Drip tray
26. Manual fuel siphon
