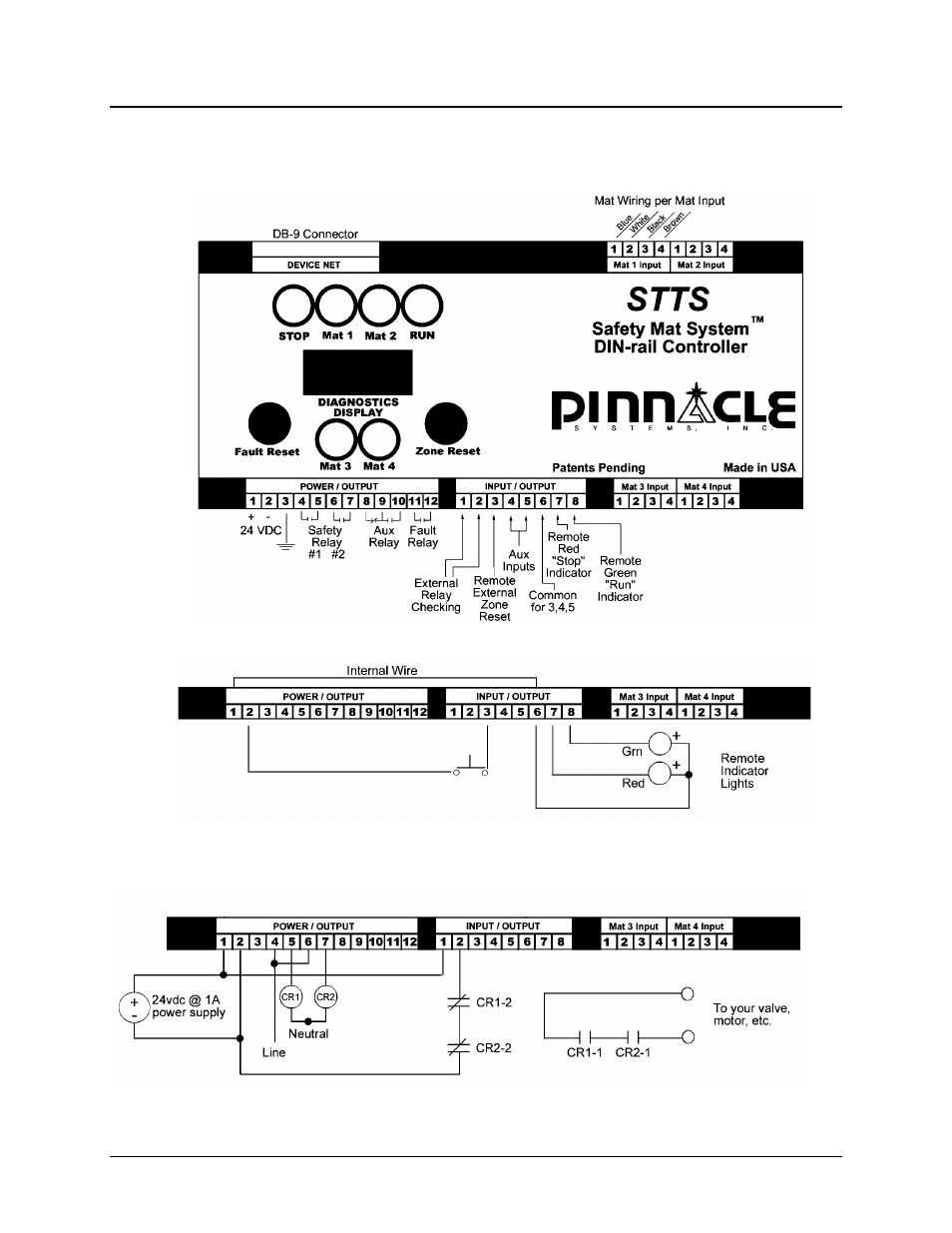

WIRING DIAGRAM FOR MAT(S)

DIN-rail Controller

NOTE: Canadian market wiring is black, red, red, black with 18-guage wiring size.

External Relay Checking (optional usage)
