Parr Instrument Series 4550 - Manual (Page 18)

4550 Floor Stand Reactors
P a r r I n s t r u m e n t C o m p a n y 18
PARTS LISTS

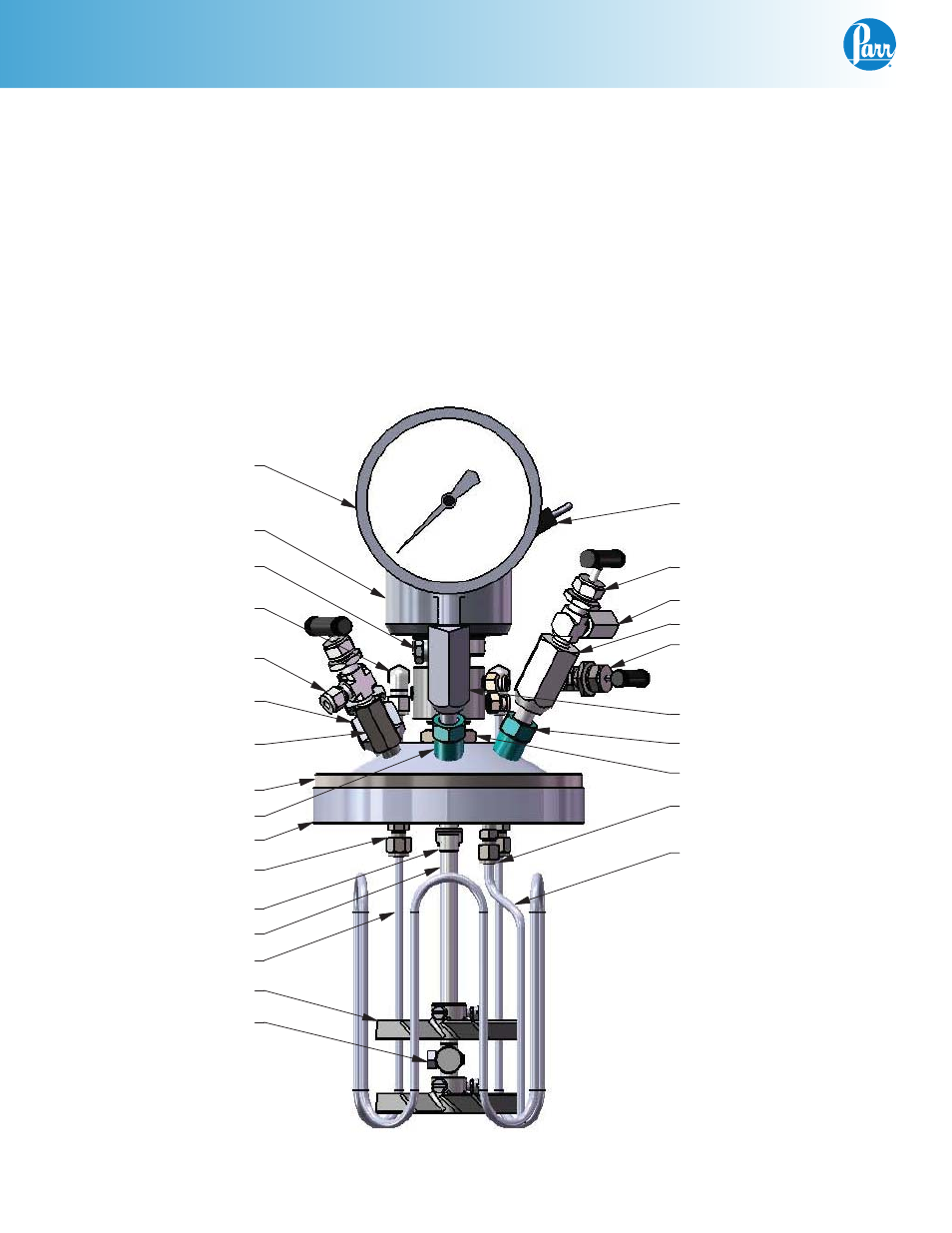

Reaction Vessel Parts List
Consult the itemized list for your reactor provided
along with this manual. For purpose of reactor
identification, the following abbreviation/codes are
used:
FH - Fixed Head FG - Flat Gasket
RV - Removable Head OR - O-Ring Seal
MD - Mag Drive LD - Light Duty
FMD - Footless Mag Drive HD - Heavy Duty
(COOLING COIL)
VALVE, LIQUID SAMPLING
(2) ELBOW,COOLING COIL
MALE CONNECTOR, DIP TUBE
GAGE ADAPTER
COMPRESSION RING
HEAD, REMOVABLE
(INLET/OUTLET)
GAS RELEASE VALVE
RUPTURE DISC ASSY
VALVE ADAPTER
DIP TUBE
PRESSURE GAGE
ADAPTER BUSHING
MAGNETIC DRIVE ASSY
ADAPTER BUSHING
VALVE ADAPTER
HEX PLUG (EXTRA PORT)
STIRRER SHAFT ASSY
THERMOWELL
SERPENTINE COOLING COIL
(2) IMPELLER ASSY
STIRRER BRACKET ASSY
THERMOCOUPLE
GAS INLET VALVE
ADAPTER, GAS CONNECTION
(2) MALE CONNECTOR
GLAND NUT, MAG DRIVE
* For parts made from alternate materials use the
codes shown below as a suffix to the standard part
number.
CM - Alloy 400 CC - Alloy 20Cb3
CT - Alloy 600 CAD - Titanium G2
CG - Alloy B-2 CAA - Titanium G4
CXA Zirconium G702 CH - Alloy C-276
CXB Zirconium G705
