Lingenfelter L850141410 Camaro Front Chin Spoiler v0.8 - Manual (Page 6)

Page 5.

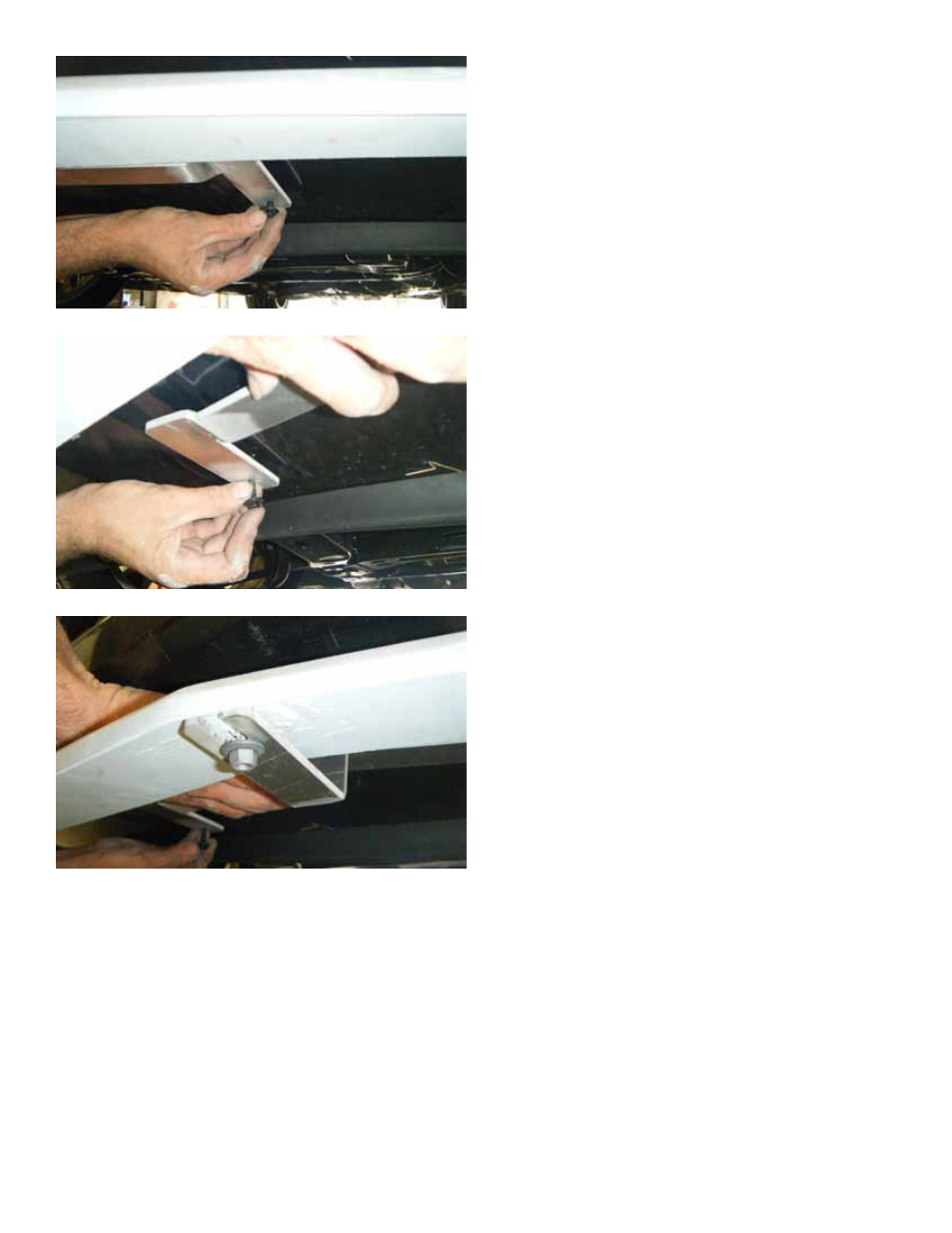

11. Insert the lower support bolt on the front
splitter in the slot on the splitter bracket. Using
a 10 mm socket and ratchet, torque the two (2)
bolts to 62 in-lb (7 N-m) as well as the M6 X 1mm
nut with a 16mm washer (PN:MP50)
10. Start the passenger side 10 mm bolt by
hand.
9. Start the driver side 10 mm bolt by hand in
the location shown.
12. The installation of your chin spoiler is now
complete.
NOTE: Due to the lower ride height of your 2010-
2012 Camaro, be careful with clearance issues to
ensure no damage is caused to the front valance.
