Page 4.

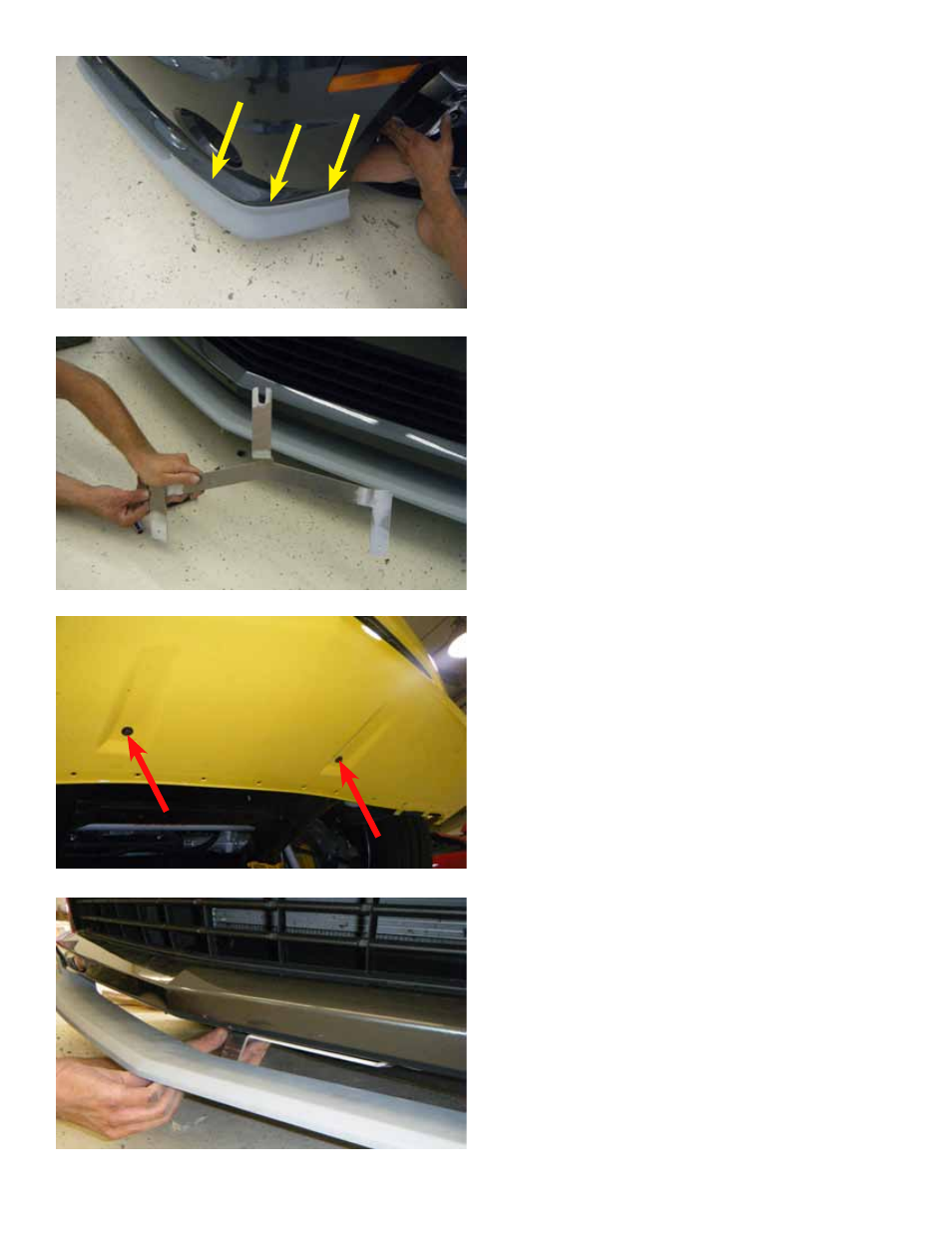

5. This picture illustrates the front chin spoiler
installed on the front fascia. The contact points of
the chin spoiler shown should be flush with the
front fascia.
6. This is the front chin spoiler support
bracket. This will be mounted under the chin
spoiler to give extra support to the front spoiler.
8. Place the chin spoiler support bracket
under the middle of the vehicle in the position
shown. The two (2) bolt holes spaced 17 inches
apart under the front of the Camaro from which
you removed the 10 mm bolts is where the
spoiler bracket will bolt to the car.
7. The two (2) bolts shown in this illustration
are where the two (2) holes on the chin spoiler
support bracket are mounted in the next step.
Remove these bolts with a 10 mm socket and
ratchet.
