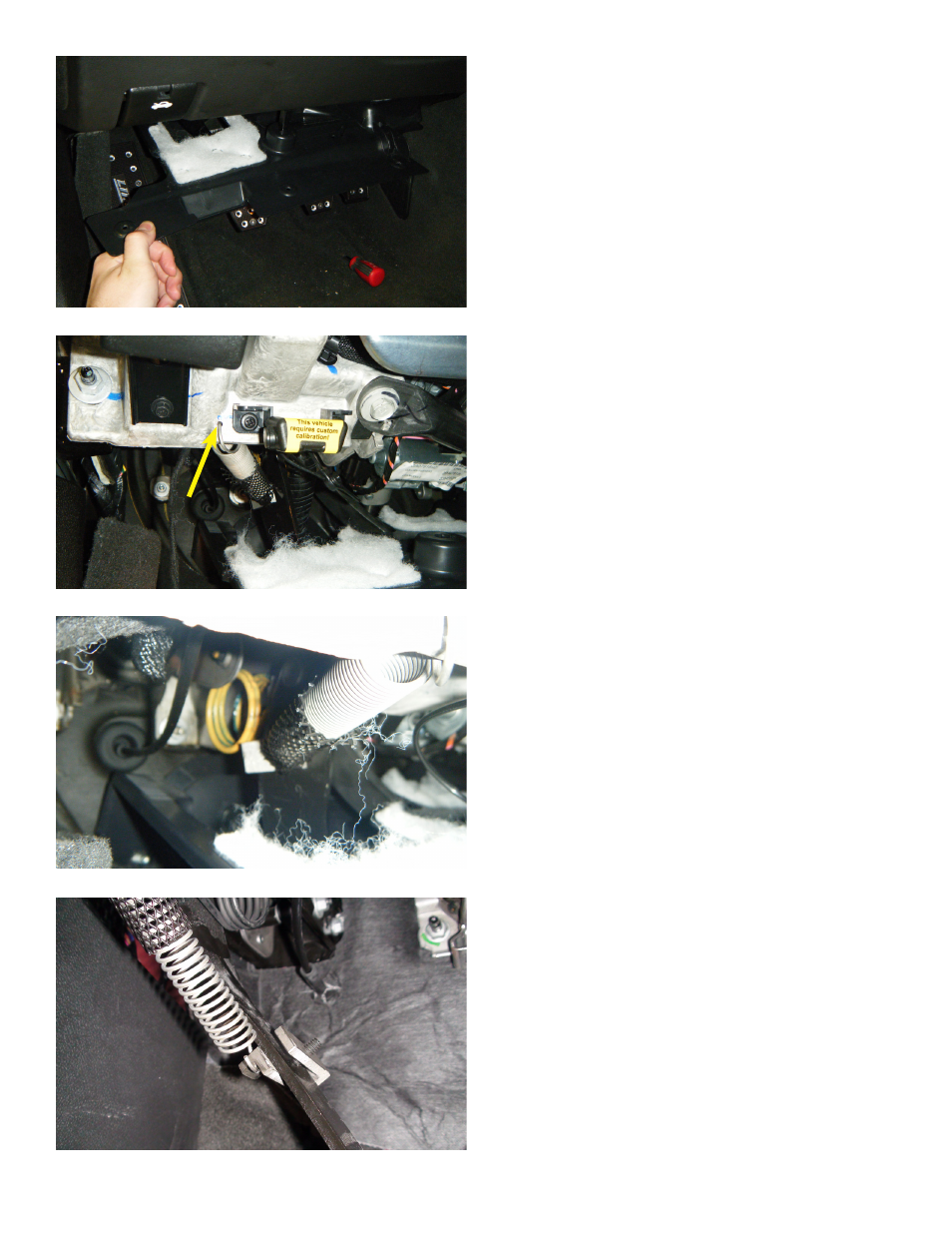

11. Gently pull down on the kick panel until
it is hanging freely to give you access to the
location that needs to be drilled.
12. Mark a spot 1/4” to the left of the edge of
the DLC OBD-II. Using a 1/8” drill bit, drill a hole
through the aluminum frame. Insert the free end
of the spring into that hole as indicated.
13. Hook the clutch return spring bracket
around the top of the clutch pedal just below the
factory (yellow) over center spring.
Insert the set screw and, using a 1/8” hex
key, tighten down the set screw to secure the
clutch return spring bracket to the clutch pedal.
NOTE: Camaro pedal pictured.
