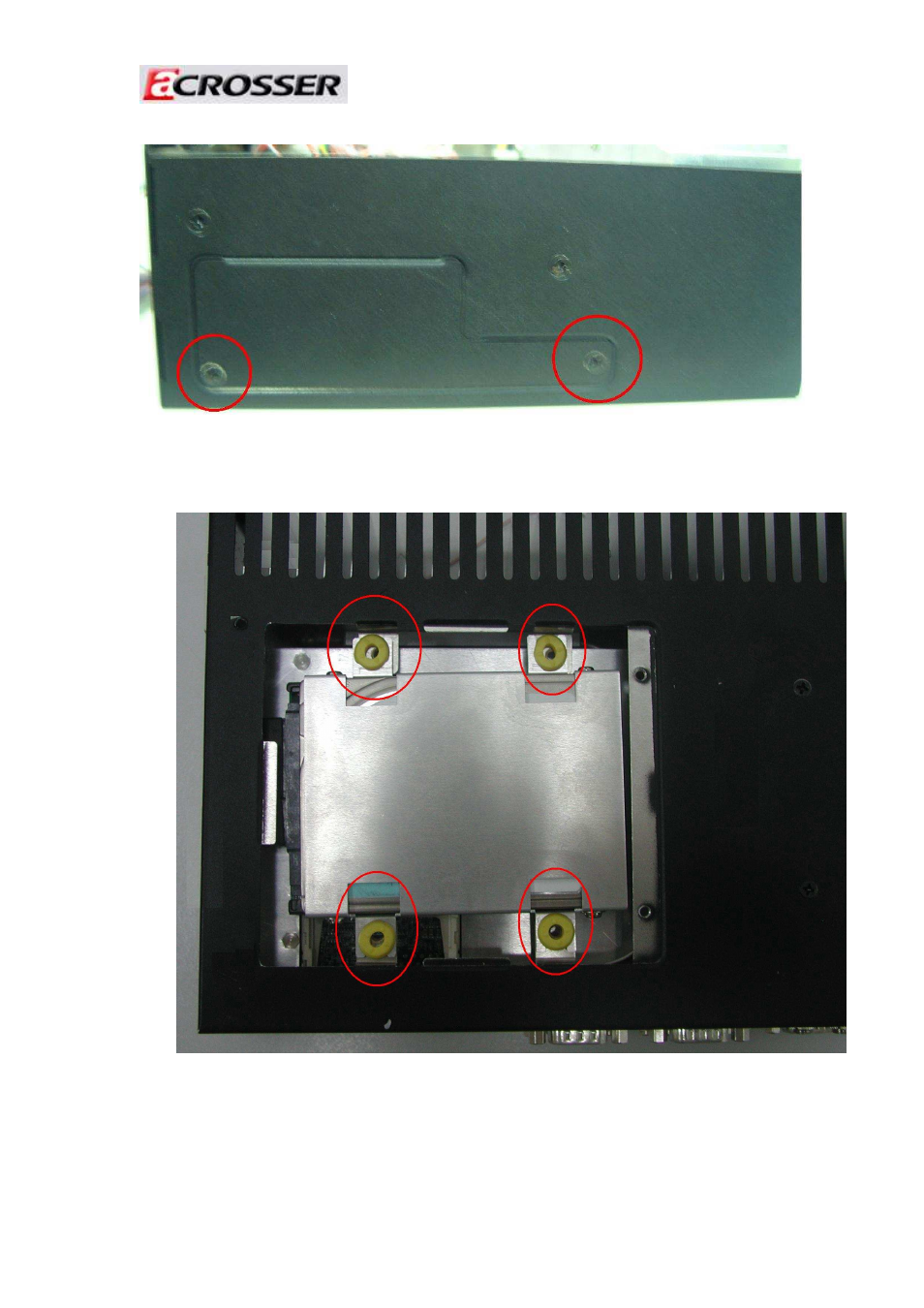

4. Remove right side door screws (2pcs) in system bottom case

5. Route the HDD cable through the main board

6. Lock right side door screws (2pcs) in system bottom case

7. Lock HDD bracket to the top case by four screws

10. Insert HDD cable into the HDD module

11. Lock the door screws in system bottom case
