Revision :1.2

10

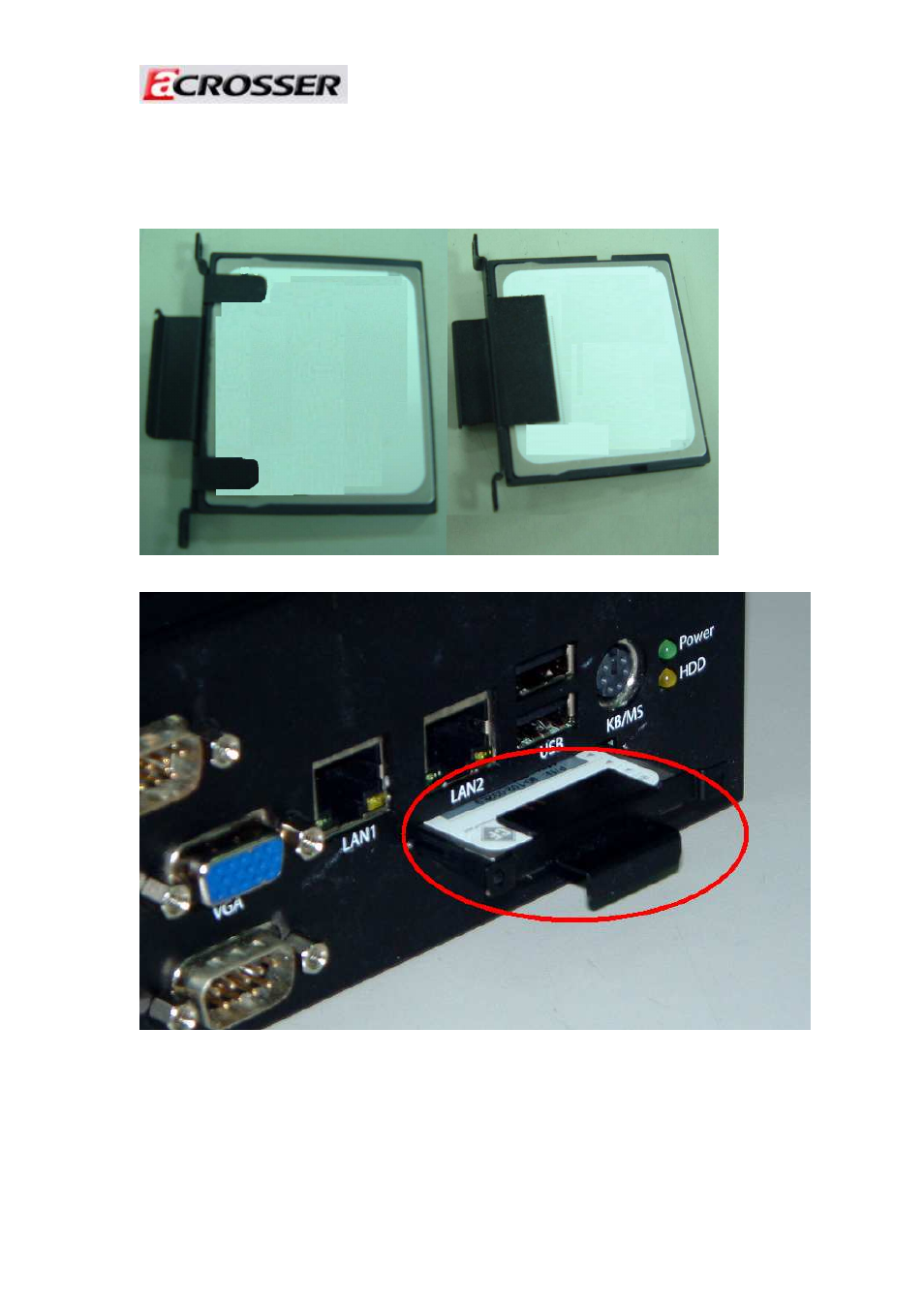

2-2 Installing CF card

The following are procedure for install CF card

1. Remove screws (2pcs) in CF card bracket

2. Install CF card to the bracket

3. Insertion CF card to CF card expansion slot

4. Lock the bottom door screws
