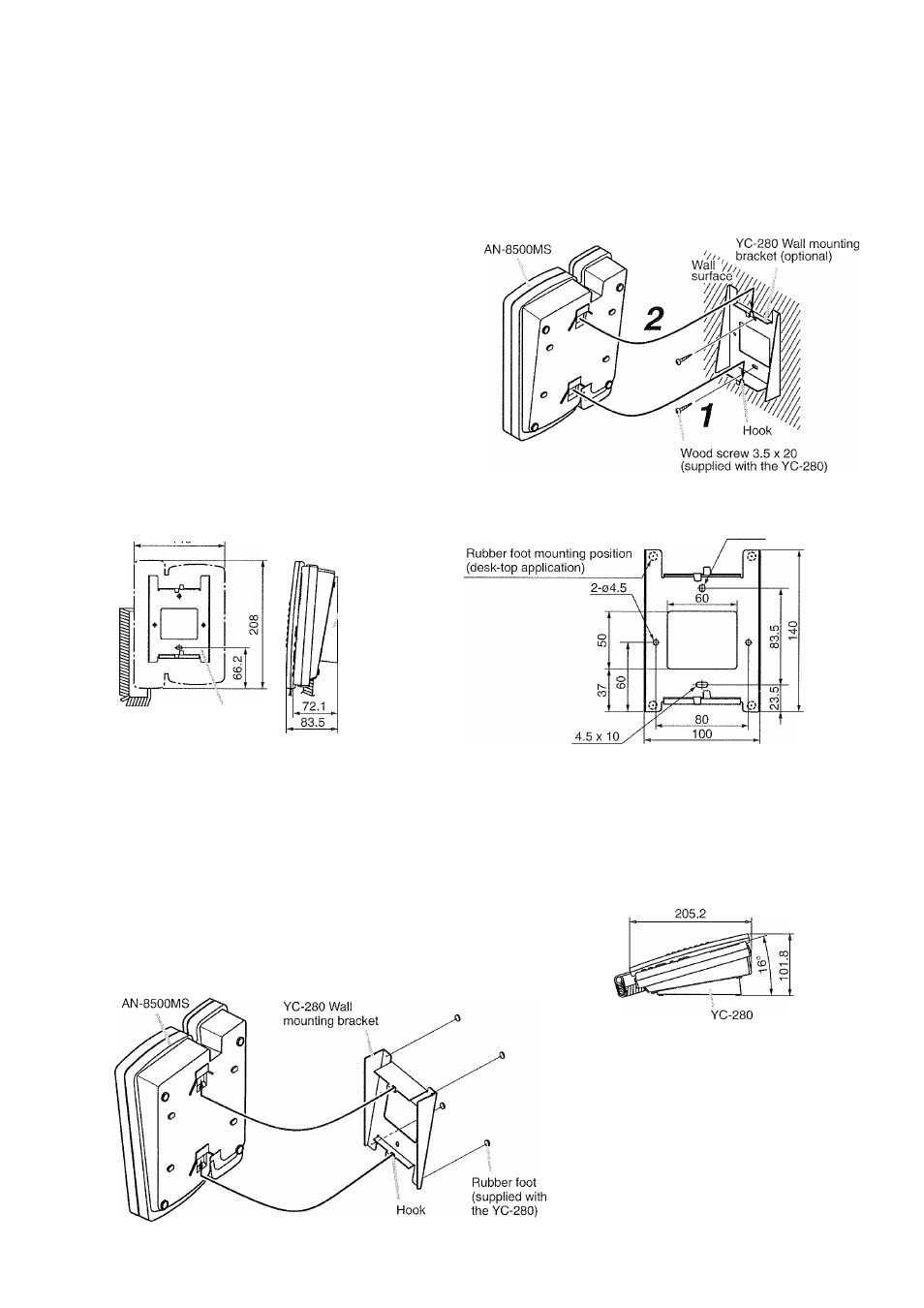

5. WALL MOUNTING
The optional YC-280 Wall mounting bracket is required.
The YC-280 can be mounted to a one-gang electrical box.
5.1. Mounting
Step 1. Install the YC-280 to the wall.
Notes
• Use the appropriate screws for the construction
of wall.
• Wood screws 3.5 x 20 are supplied with the
YC-280.
• No fitting screws for an electrical box are
supplied.
Use commercially available screws.
Step 2. Hang the station on the wall mounting bracket
hook to install.
Push down the station body in the direction
indicated by the arrows.
5.2. Installation Completion Drawing
Unit: mm
14R
YC-280
5.3. YC-280 Dimensional Drawing
YC-280
4 . 6 x 6
Unit: mm
6. DESK-TOP INSTALLATION
In desktop installations, the front operation panel can be inclined 16° from the desk surface for easier operation by
attaching the YC-280 Wall mounting bracket to its bottom surface.
6.1. Mounting
Hang the YC-280's hook on the station's wall bracket mounting slot
to install.
Push up the YC-280 in the direction indicated by the arrows.
6.2. Installation Completion Drawing
Unit: mm
