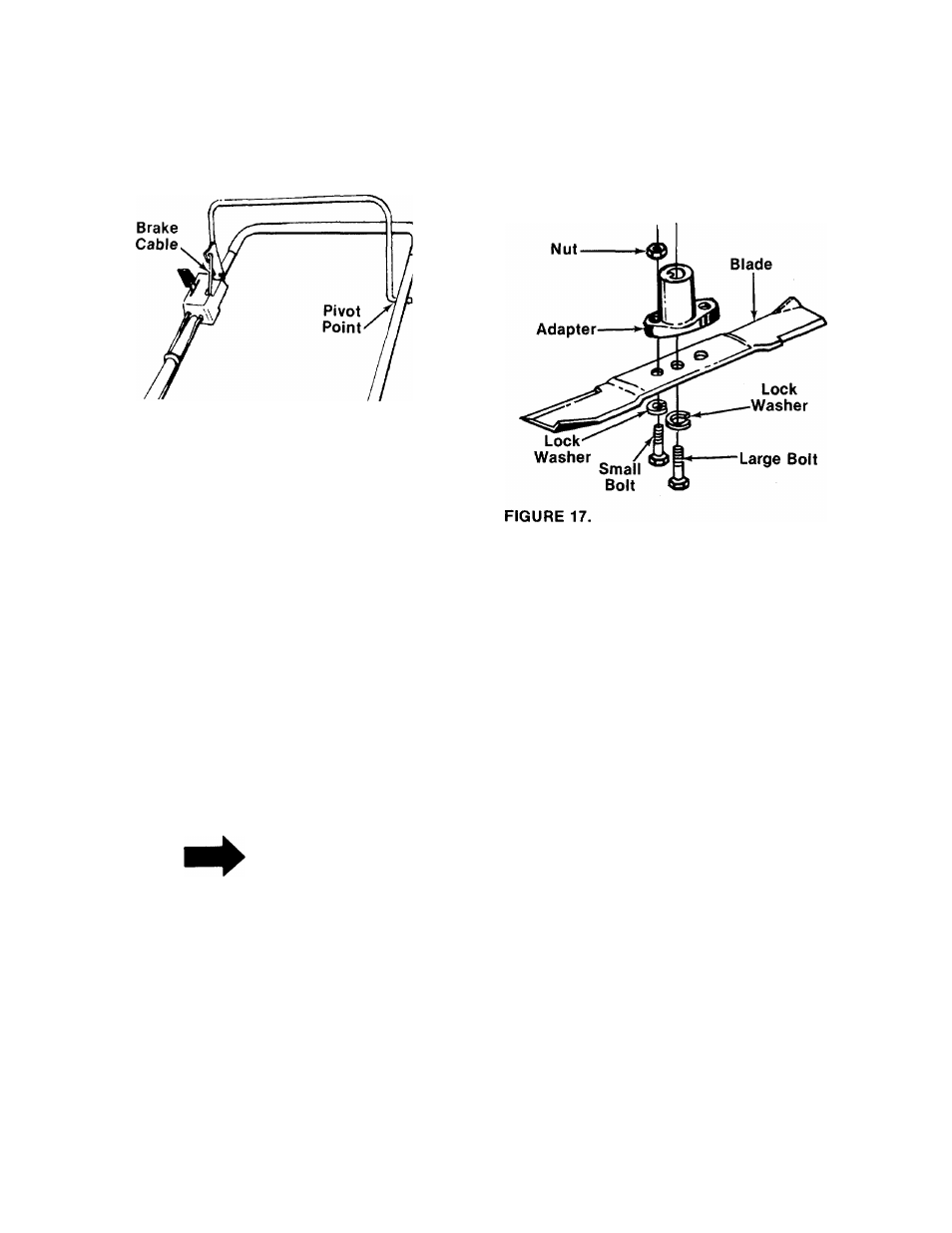

Blade Control— Lubricate the pivot points on the
blade control handle and the brake cable a: least
once a season with light oil. See figure 1i5. The
blade control must operate freely in both direc­
tions.
FIGURE 16.
Chute Deflector— The torsion spring anc pivot
point should be lubricated periodically witn light
oil to prevent any rust or binding. Deflecto' must
work freely.
Wheels— Lubricate wheel bearings at least once a
season with light oil. Also, if the wheels are
removed for any reason, lubricate the surlace of
the axle bolt and the inner surface of the wheel
with light oil. A 4 oz. plastic bottle of light о I lubri­
cant is available. Order part number 73^-0170.
Engine oil may also be used.
Engine— Follow engine manual for lubrica ion in­
structions.
Throttle— Periodicaliy lubricate throttle control
lever and throttle wire assembly with a fev drops
of light oii for ease of operation.
MAINTENANCE
NOTE
When tipping the unit, empty the fuei
tank and keep engine spark plug side
up.
CUTTING BLADE
A. Removal for Sharpening or Replacemer t
A ^ WARNING I
Be sure to disconnect and ground
the spark plug wire before working
on the cutting blade to prevent
accidental engine starting.
Remove the large bolt and lock washer which
holds the blade and adapter to the engine
crankshaft. See figure 17. Remove the blade and
adapter from the crankshaft.
If the blade or blade adapter needs replacing,
remove the two small bolts, lock washers and nuts
which hold the blade to the adapter.
A
CAUTION
Periodically inspect the blade adapt­
er for cracks, especially if you strike
a foreign object. Replace when nec­
essary.
B. Sharpening
Remove the cutting blade by following the direc­
tions of the preceding section.
When sharpening the blade, follow the original
angle of grind as a guide. It is extremely important
that each cutting edge receives an equal amount
of grinding to prevent an unbalanced blade. An
unblanced blade will cause excessive vibration
when rotating at high speeds, may cause damage
to
the mower and could break, causing personal
injury.
It is recommended that the blade always be
removed from the adapter for the best test of
balance. The blade can be tested by balancing it
on a round shaft screwdriver. Remove metal from
the heavy side until it balances evenly.
C. Reassembly
Before reassembling the blade and the blade
adapter to the unit, lubricate the engine
crankshaft and the inner surface of the blade
adapter with light oil. Lubricating the bolt holes,
bolts and inner surface of the nuts with light oil is
also recommended. A 4 oz. plastic bottle of light
oil
lubricant is available. Order part number
737-0170. Engine oil may also be used.
10
