Dealer Preparation For Operation
1. Attachment Clutch Lever
8. Big Hook End
2. Wheel Drive Clutch Lever
9. Spring
3. Speed Selector
10
Attachment Clutch Arm
4. Speed Selector Arm
11. Traction Clutch Arm
5. Top Edge
12. Speed Selector Rod Nuts
6. Discharge Chute Crank Rod
13. Speed Selector Rod
7. Adjustment Sleeve
14. Top of Frame

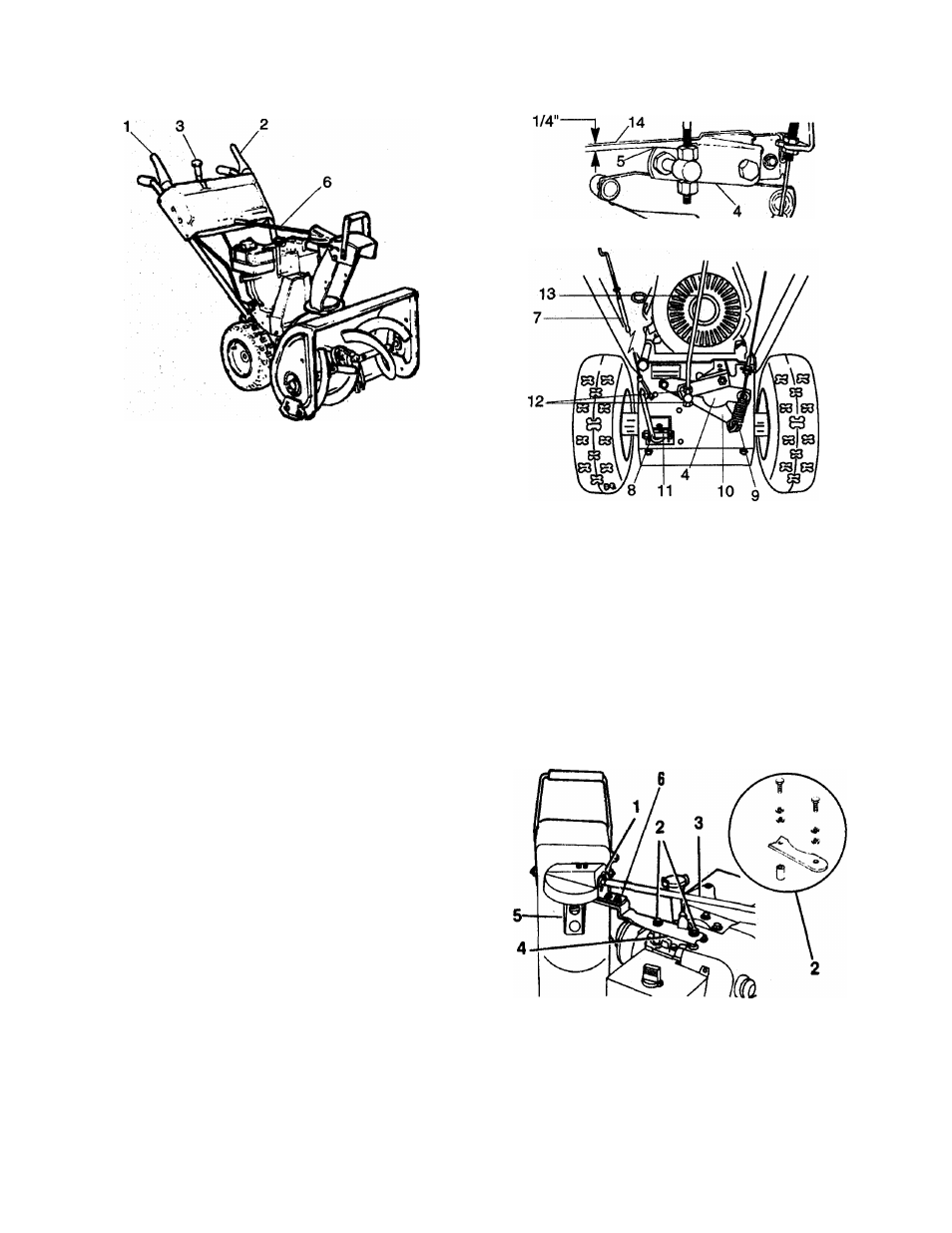

Figure 2: Dealer Preparation
Consumer Note: Your Ariens Dealer is expected to
complete these preparation steps and review
importaht information, including this manual, with you
before or upon delivery of unit.
The preparation information is included here so that
you and your dealer may review it together.
A
WARNING:
Failure
to
follow
all
instructions could result in personal
injury and/or damage to Sno-Thro.
Remove wire from spark plug before
attempting any adjustment or assembly
procedures.
Handlebar
Attach handlebars to sides of frame in holes provided
using 5/8” long flange whiziock screws.
1.
Hair Pin
2.
Mounting Hardware
3.
Discharge Chute Crank Rod
4.
Chute Strap
5.
Discharge Chute Bracket
6.
Pinion Gear Bracket
Figures: Discharge Chute
