Lubrication and Maintenance (Continued)

Oil and Grease Locations

CAUTION: DO NOT touch engine or
Sno-Thro drive parts which are hot from
operation. Allow such parts to cool
before servicing unit.

IMPORTANT: Wipe each fitting clean before and

after lubrication,

NOTE: Use Ariens Multi-Purpose Grease (Part No.
000150) or good grade of general purpose grease at
zerk fittings and oil at lubrication points.

Sno-Thro should be lubricated at beginning of season
and every 25 operating hours. Grease and oiling
points are indicated below.

IMPORTANT: DO NOT allow grease or oil to get on
belt or friction wheel.

NOTE: To grease one auger shaft at a time, remove

shear bolt nut and shear bolt. Turn auger on shaft
while applying grease through zerk fitting. Replace
shear bolt per instructions in Shear Bolt

Replacement.

1. Traction Rod

2. Speed Selector Linkage
3. Bushing
4. Hex Shaft
5. Discharge Chute Base
6. Auger and Shaft

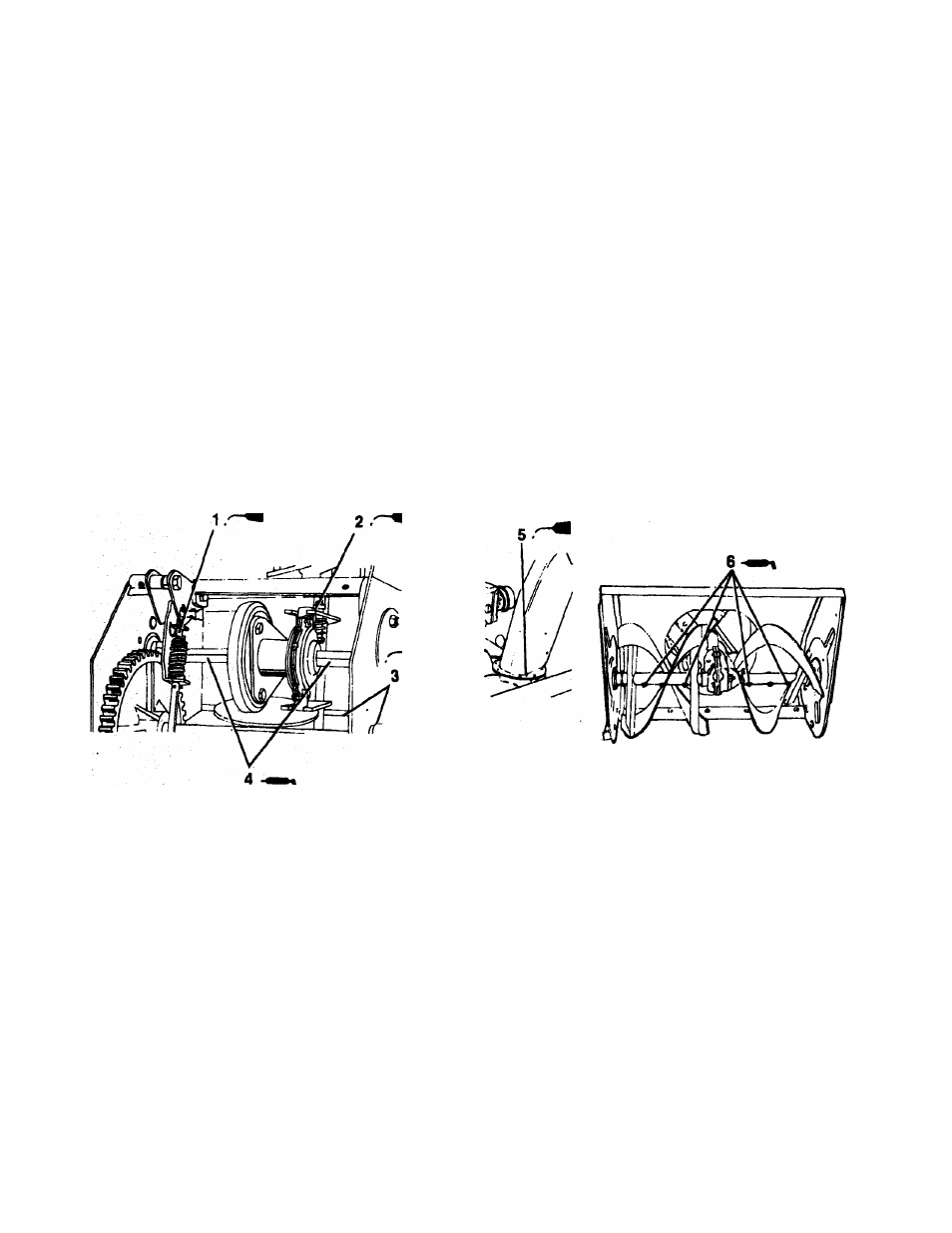

Figure 12: Oil and Grease Locations
