UG_6618_122

78M6618 PDU1 Firmware Quick Start Guide

Rev. 0

17

4.3

Via the ADM-51 Emulator

Refer to the Signum System ADM-51 Emulator documentation if necessary.

1. Connect the ADM-51 to the PC using the isolated USB cable. Connect the target board to ADM-51

emulator using the ribbon cable and power up the 78M6618 device.

2. Start the Wemu51 program from the connected PC.

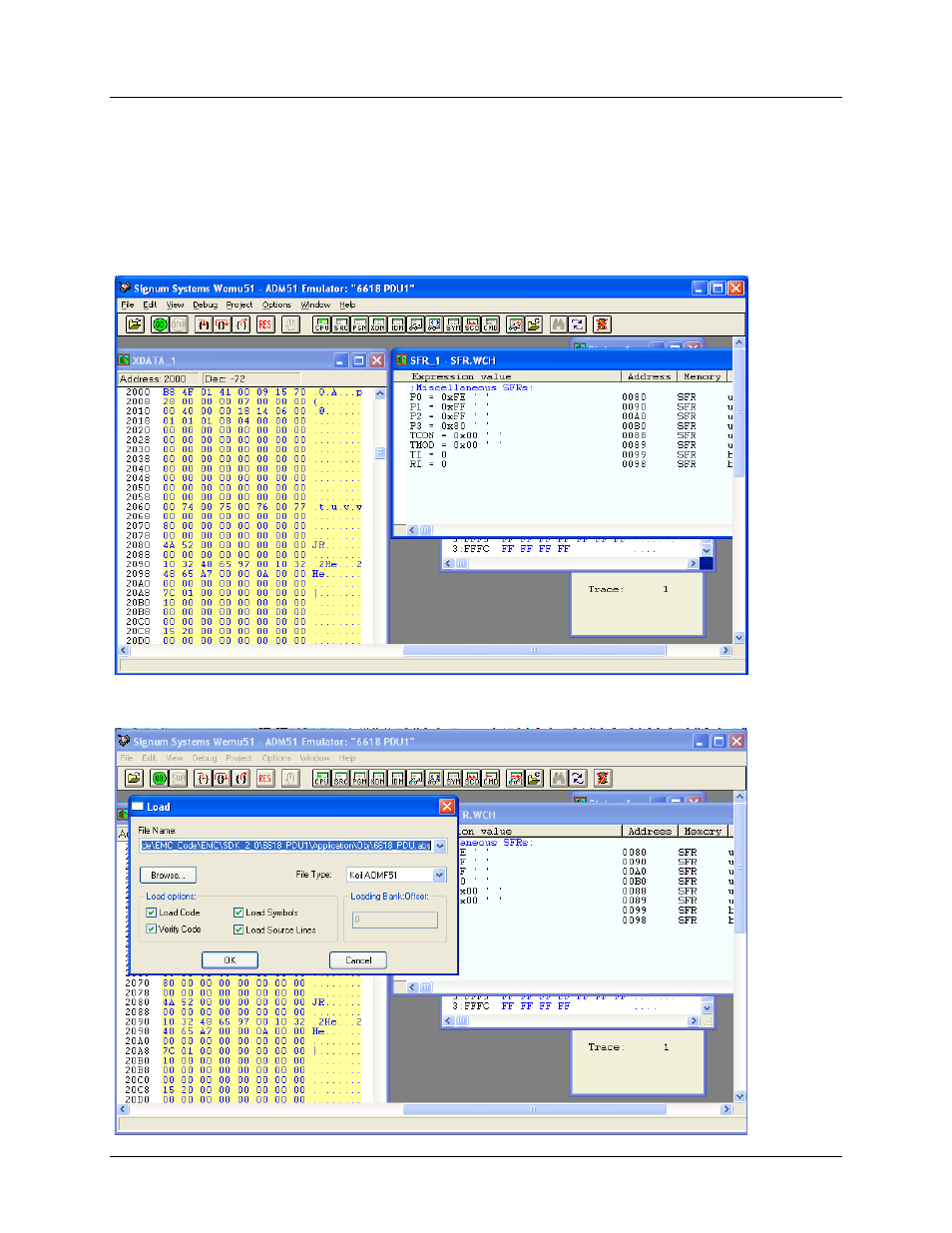

3. Stop the CE by writing 0x00 at XRAM address 0x2000 (see the XDATA memory window below).


4. Use File->Load to select the hex file for programming.
