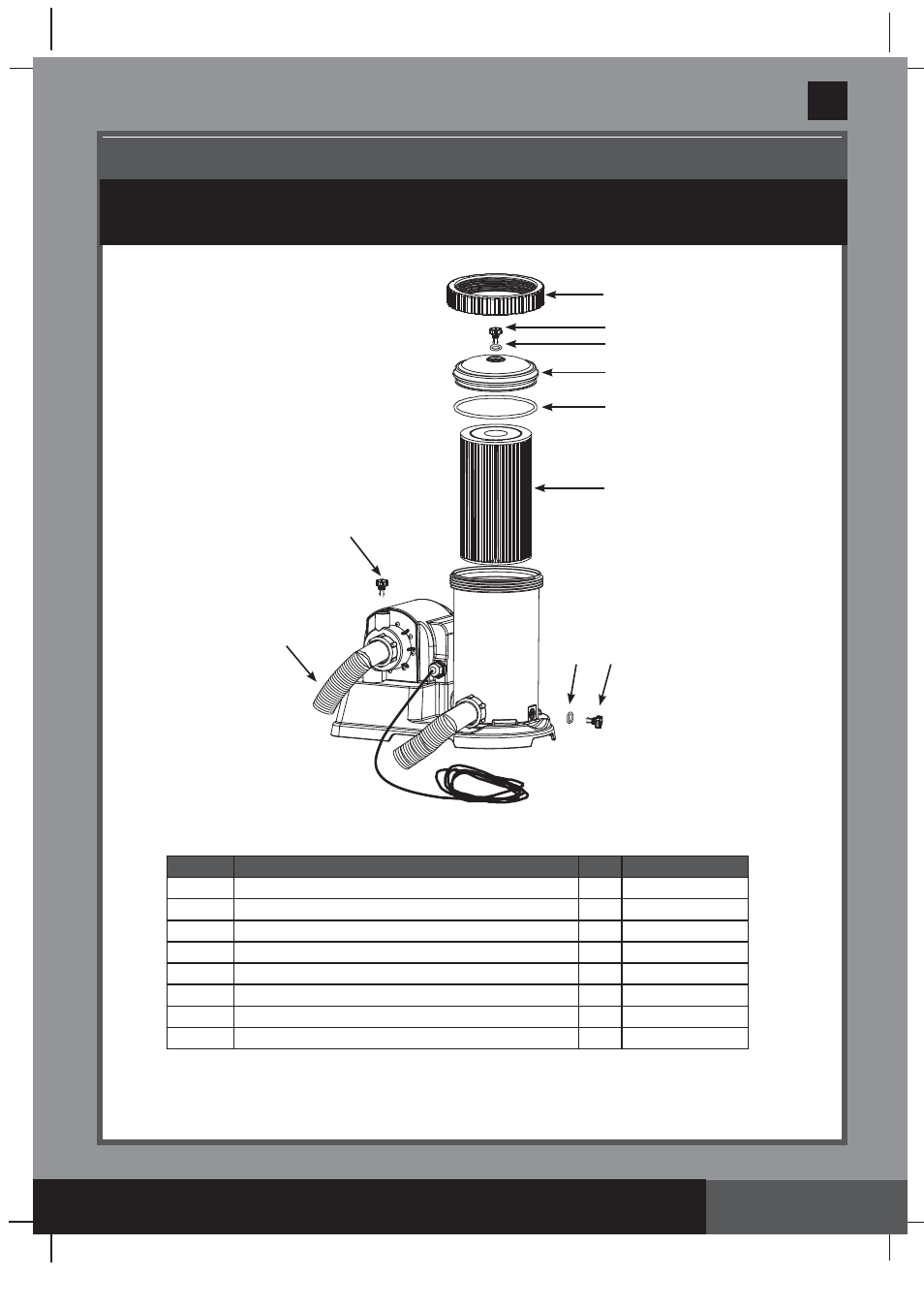

PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
When ordering parts, be sure to quote the model number and part numbers.
NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.
1
2
3
4
5
6
7
8
REF. NO. DESCRIPTION QTY. SPARE PART NO.
1
2
2
1
1
1
1
2
THREADED FILTER HOUSING COLLAR
AIR RELEASE VALVE/SEDIMENT RELEASE VALVE
VALVE O-RING
FILTER HOUSING COVER
FILTER HOUSING O-RING
FILTER CARTRIDGE (59905)
AIR RELEASE VALVE B (WITH O-RING)
PUMP HOSE WITH NUTS
10491
10460
10264
10490
11330
10725
11009
2
3
4
5
1
6
8
7
3 2
