23
6 POLE MOUNT BRACKET INSTALLATION

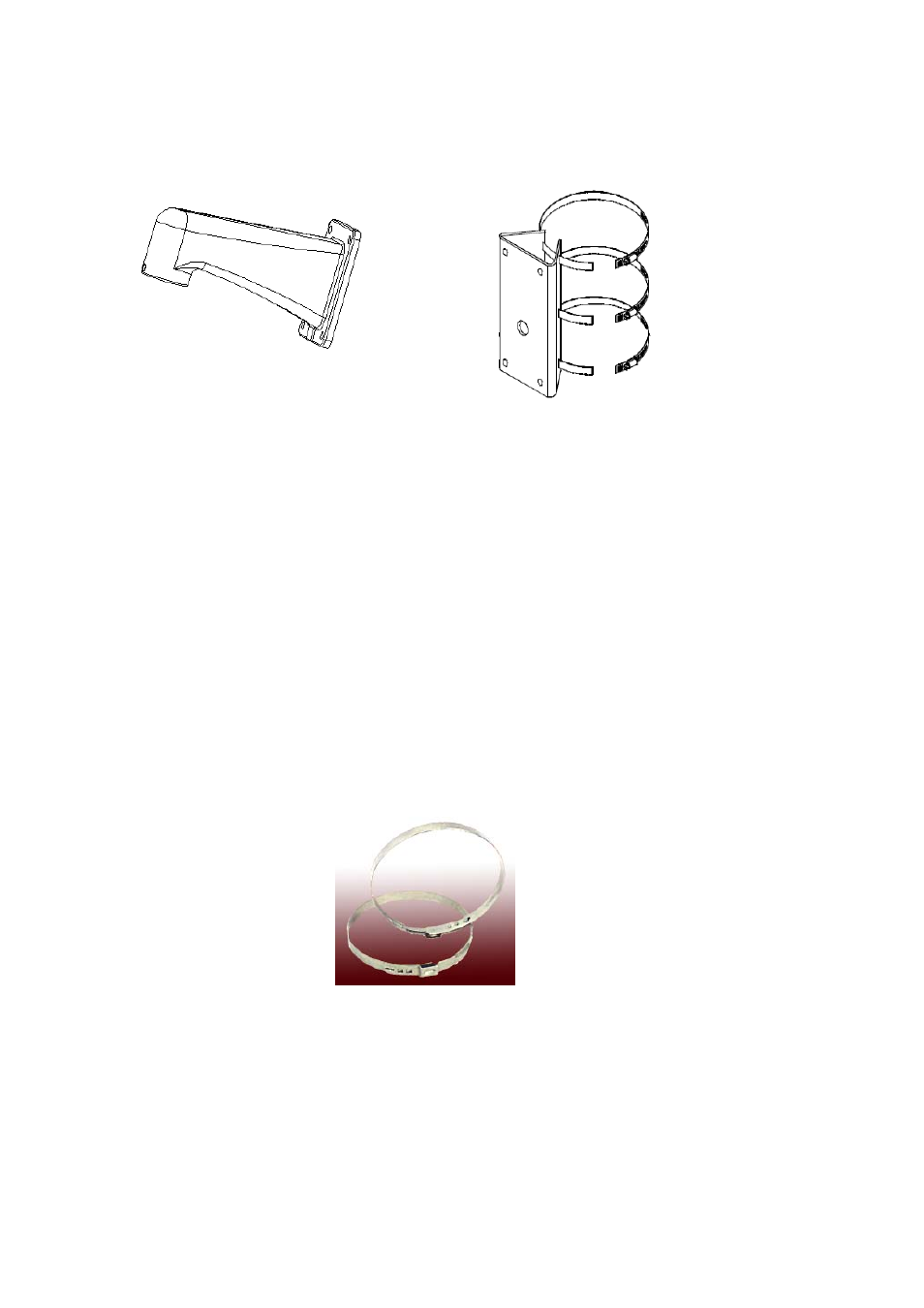

Pole mount bracket and its components are shown as below. See Figure 6-1.
Figure 6-1
6.1 Installation
6.1.1 Installation Requirements
The corner mount speed dome can be installed in the hard construction wall in the indoor or
outdoor environments.
Before the installation, please make sure the pole bracket can sustain the 4X weight of the speed
dome.
The diameter of the pole structure shall comply with the installation dimension of the clamp.
Default factory clamp is six inches for the column of
φ130-152mm. It can work with the pole
installation bracket. You can adjust the diameter and the value (clamp specification) is :
φ59-
82mm
、φ84-108mm、φ103-127mm, φ130-152mm、φ155-178mm、φ180-203mm,φ194-216mm.
The clamp is shown as in Figure 6-2.
Figure 6-2
For special dimensions, please contact us for more information.
Please refer to Figure 6-3 to install clamp and pole bracket.
Pull the cable out of the pole accessories and then use clamp to fix the pole accessories to the
pole. Finally, you can use glass cement to the output hole to secure waterproof.
