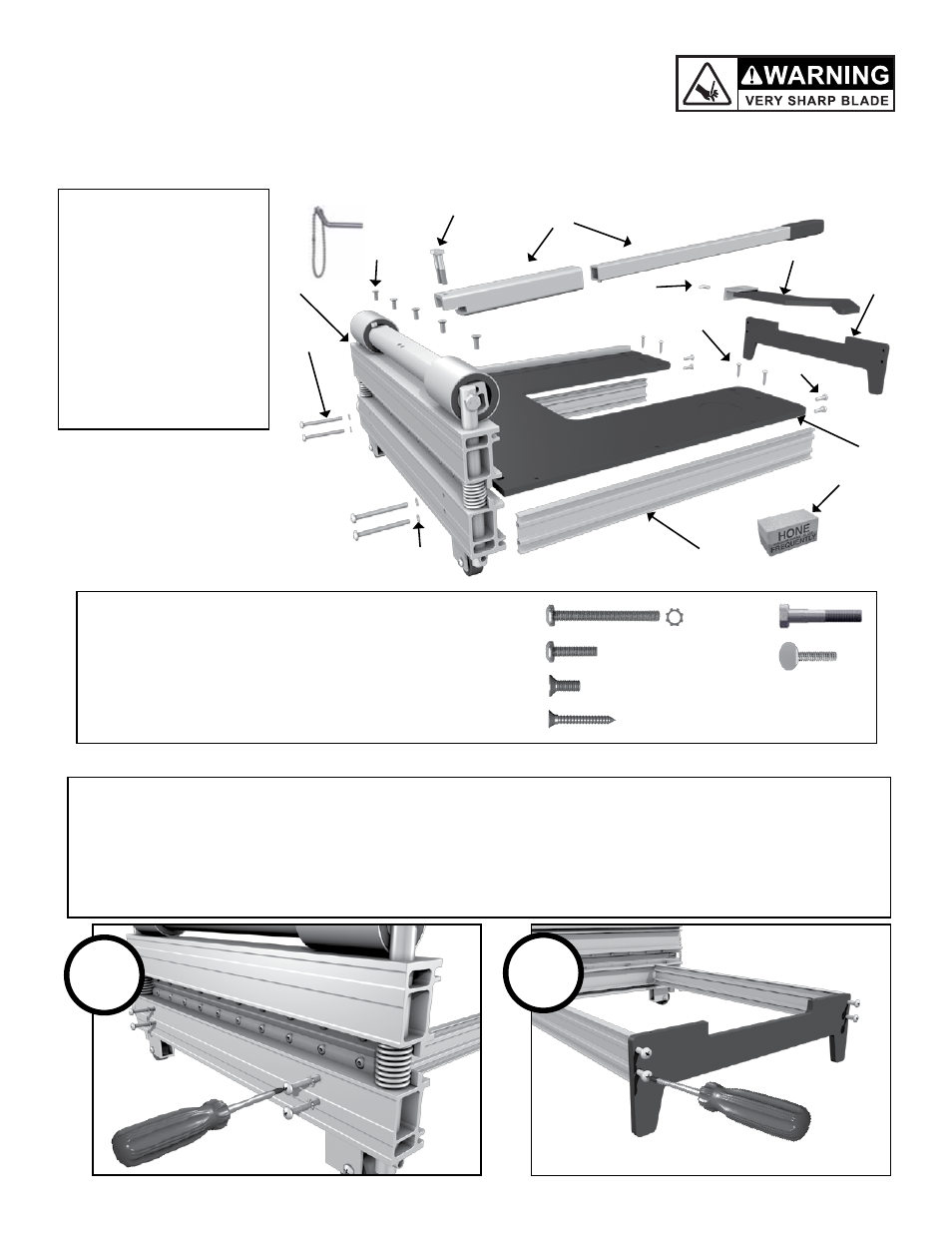

520 SEt Up
WELCOME! YOUR MAGNUM RCT SHEAR COMES READY TO ASSEMBLE.*
*You will need #2 & #3 Phillips head screwdrivers
and a 1/2” (13mm) socket or wrench.
Please Review and Verify Parts Included in Box:
ASSEmbly
1. ATTACH RAIlS
Attach rails to Power Assembly base using item A
machine screws, fitted with item B star washers.
2. ATTACH TAIl
Attach tail to rails using item C machine screws.
Make sure holes in tail are facing up.
F.
5.
1.
1a.
A.
B.
D.
E.
H.
C.
2.
3.
7.
4.
6.
Item A. (4) 6mm x 60mm PH Phillips Machine Screws
Item B. (4) M6 Star Washers
Item C. (4) 6mm x 25mm PH Phillips Machine Screws
Item D. (5) M6 x 16mm FH Phillips Machine Screws
Item E. (4) #10 x 1 FH Phillips Self Tapping Screws
Item F. (2) M8 x 50mm Hex Bolts
Item G. (1) M6 Thumbscrew
HARDwARE kIT:
A.
C.
D.
E.
F. B.
G.
1. Power Assembly
1a. Safety Lock pin
2. Handle Assembly
3. Table
4. Tail
5. Rails (2)
6. Angle Guide
7. Hone Stone
8.
Hardware Kit
