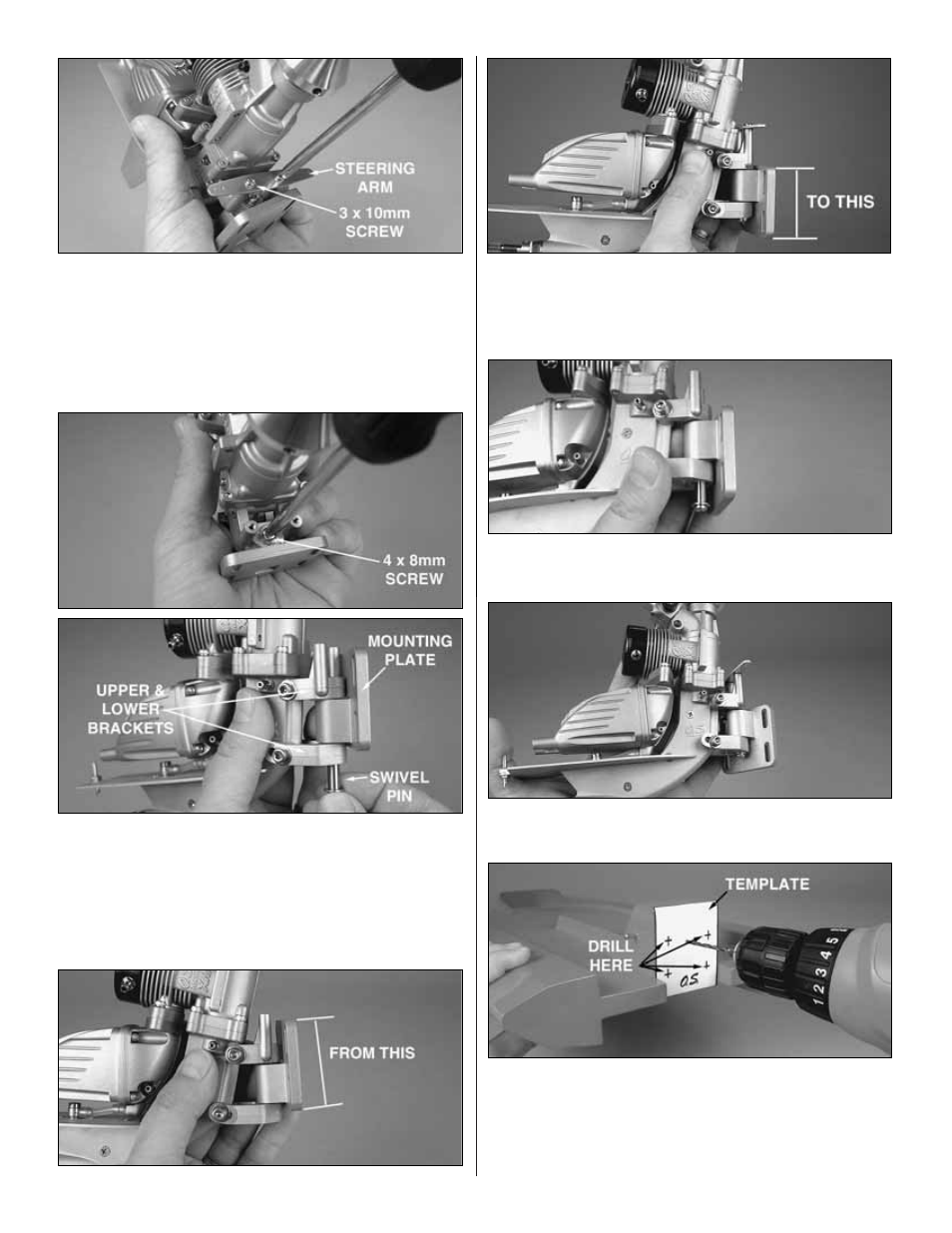

1. Use a Phillips head screwdriver to remove the two (2)
3 x 10mm screws holding the steering arm to the upper
swivel bracket as shown.
❏
2. Remove the 4 x 8mm screw from the top of the
mounting plate swivel pin and tap the swivel pin out of the
upper and lower swivel brackets.
❏
3. Slide the mounting plate out of the swivel brackets and
invert the mounting plate as shown. Be certain to replace
the nylon washers between the mounting plate and the
upper and lower swivel brackets.
❏
4. Slide the swivel pin back up through the mounting
plate and replace the 4 x 8mm screw.
❏
5. Put the steering arm back in place and replace the two
(2) 3 x 10mm screws.
❏
6. Use Template #1 provided on page 17 of this
instruction manual for mounting the O.S. 21 XM. Tape the
template in place, mark and drill four pilot holes with a 1/8"
[3mm] drill bit. Very Important: The holes are 5/8" and
1-5/8" up from the bottom of the transom and exactly
centered on the transom.
