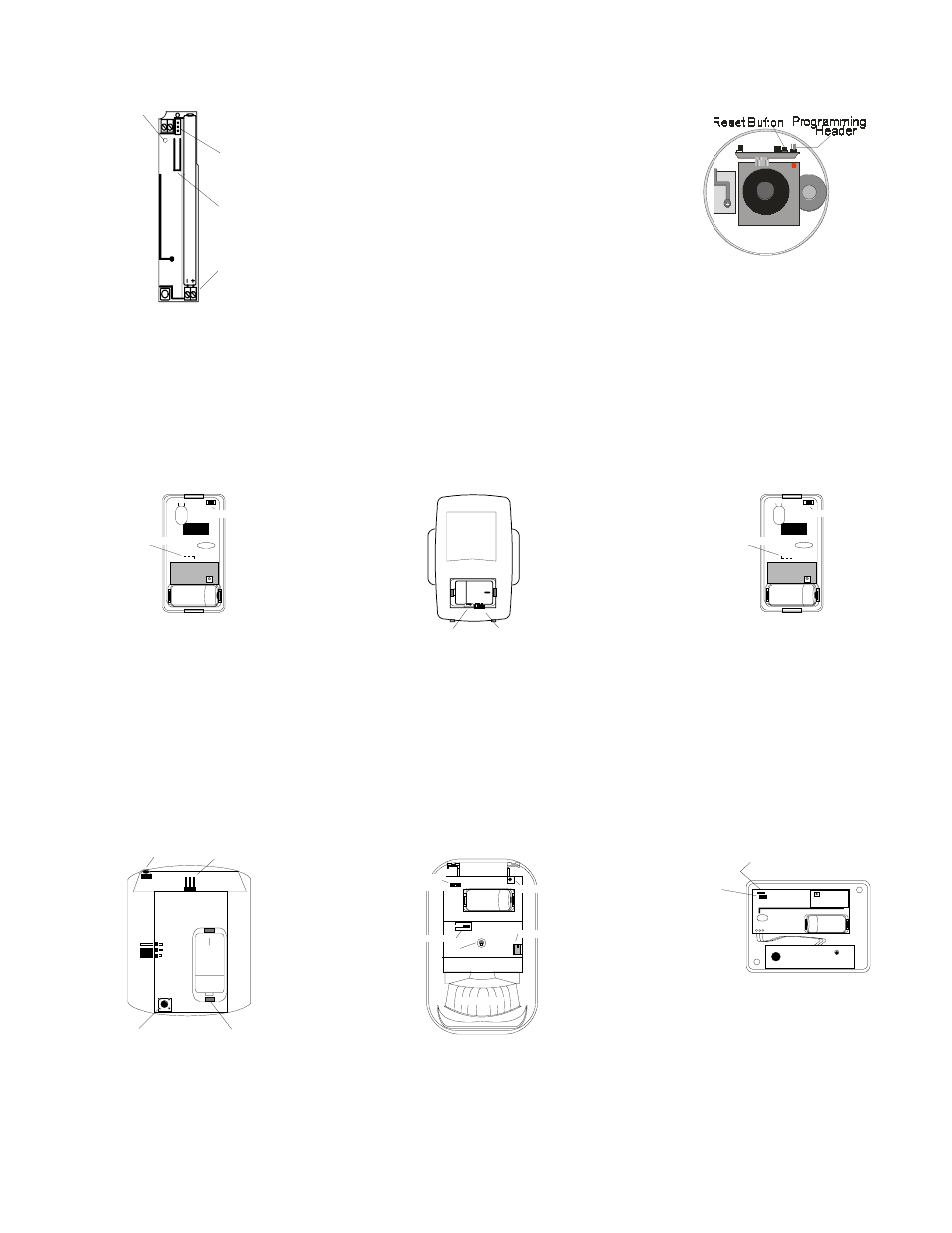

FA200
Universal Transmitter
Ba
tt
e
r
y
Programming
header
Battery terminals
Tamper switch
Reset button
Program contacts: N/O or N/C, as needed
Typical battery life: 3 years
Battery type: 4.5V alkaline battery pack
Switch trigger: 1.5 seconds, minimum
Dimensions: 1.25" x 6.00" x 0.750"
FA200W
Universal Widegap Transmitter
FA202
Smoke Detector
Program
contacts:
N/C
Typical battery life: 1 year
2 Batteries: 3.0V lithium
Dimensions:
6.0"
Diameter
Note: Remove jumper to program,
replace jumper after programming.
FA203
Pendant Transmitter
3.0V
+
Programming header
Reset button
Program
contacts:
N/O
Typical battery life: 3-5 years
Battery (or equivalent): 3.0V lithium Sanyo CR2
Dimensions: 3.10" x 1.62" x 0.750"
* To extend battery life, actual check-in
interval of the FA203 is 2 to 3 times the
programmed value.
FA204
Pendant Transmitter
Reset button
Programming
header
+ 3.0V
Note: Remove battery cover to access
Reset Button and Programming Head
Program
contacts:
N/O
Typical battery life: 2 years
Battery 3.0V Sanyo LiMn CR14250
Dimensions: 2.8" x 1.7" x 0.83"
FA205
Beltclip Transmitter
3.0V
+
Programming
h
d
Reset button
Program
contacts:
N/O
Typical battery life: 3-5 years
Battery (or equivalent): 3.0V lithium Sanyo CR2
Dimensions: 3.10" x 1.62" x 0.750"
* To extend battery life, actual check-in
interval of the FA205 is 2 to 3 times the
programmed value.
FA206S
PIR Motion Detector
Tamper switch
Programming header
Reset Button
Battery
+
3.
0V
Program
contacts: N/C
Typical battery life: 2 years (with 2 batteries)
Battery: 3.0V lithium DL123A
Sleep after trip: 90 seconds
Dimensions: 3.75" x 2.88" x 2.40"
FA206DS
PIR Motion Detector
3.0V
+
Sensitivity selector
Walk test LED
Mirror Optics
Programming
header
Tamper switch
Reset button
Program
contacts:
N/C
Typical battery life: 2 years
Battery:
3.0V
lithium
DL123A
Sleep after trip: 180 seconds
Dimensions: 3.75" x 5.75" x 2.50"
FA207
Glassbreak Detector
3.0V
+
Reset button
Programming header
(with tamper shunt)
Program
contacts:
N/O
Typical battery life: 2 years
Battery: 3.0V lithium DL123A
Dimensions: 4.25" x 3.12" x 1.63"
Note: Remove jumper to program,
replace jumper after programming.
Note: Batteries are always supervised. Lithium batteries are capacity-tested at 18-hour intervals. Typical battery life is based on 60-second
check-in. The transmitter will deactivate 2 weeks after low battery is detected. Test weekly.
Frequency Agile
Series Transmitters
Widegap Magnet
not supported
by the FA401
