EN7016SK EchoStream

Survey Kit

Installation and Operation Manual - 04493D

1 Quick Start

By following this procedure you can quickly configure the supplied
equipment to perform a site survey. Review the main body of this
manual for additional options, features and a more detailed startup
process.

Note: If performing site surveys in Australia or New Zealand, the
additional setup steps in the main body of this manual must be
performed.

1. Slide off the battery cover on the back of the EN4016SK survey

receiver.

2. Load four AA batteries into the survey kit receiver.
3. Press the Power button to turn on the survey kit receiver.

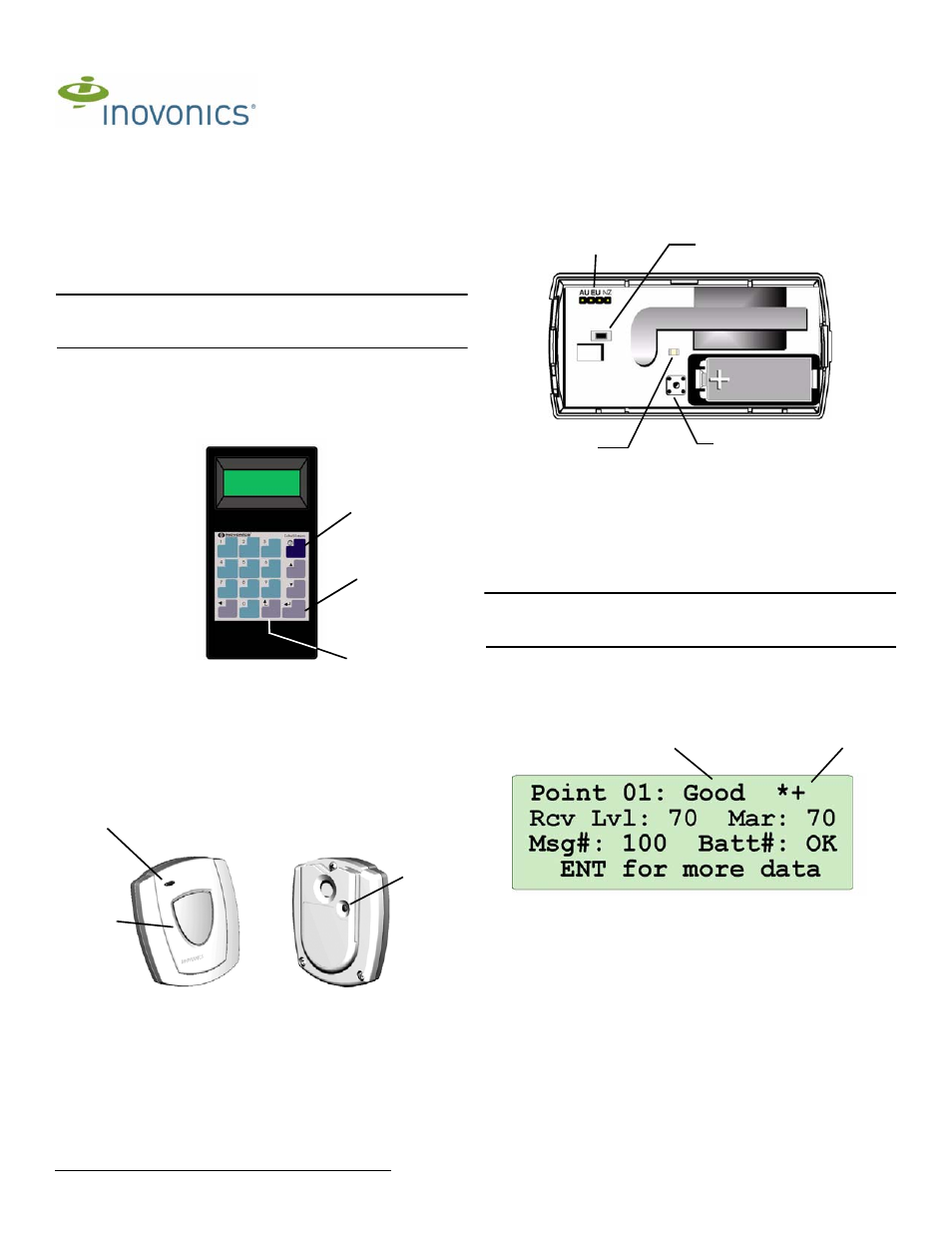

Figure 1 EN4016SK Survey Receiver
4. Press the Enter button to advance to M

AIN

M

ENU

.

5. Select R

EGISTER

P

OINT

on the M

AIN

M

ENU

.

6. Select P

OINT

1 on the R

EGISTER

P

OINT

menu.

7. Press the EN1223SK Reset button.

Figure 2 EN1223SK Survey Transmitter
8. Select P

ENDANT

. The survey transmitter should now be

registered.

9. Press the EN1223SK On/Off button. The transmit LED should

begin to flash.

10.Use the small flat-blade screwdriver to press the housing

release tab on either end of the ES1210SK and separate the
housing.

11.Select P

OINT

2 on the R

EGISTER

P

OINT

menu.

12.Press the ES1210SK Reset button. The transmitter should now

be registered.

Figure 3 ES1210SK Survey Transmitter
13.Press the ES1210SK On/Off button. The transmit LED should

begin to flash.

14.Place the survey transmitters where you plan to mount your

network coordinator or receiver.

15.Walk the receiver to the first point you plan to use a transmitter

or a two-way end device.

Note: Reversing the position of the end device and the high-power
repeater will make the survey easier to perform. This equipment
reversal will not affect the accuracy of the results.

16.Press Exit to return to the M

AIN

M

ENU

.

17.Select P

OINT

S

TATUS

on the M

AIN

M

ENU

.

18.Select P

OINT

1 or P

OINT

2 to view signal information.

Figure 4 The Point Status Summary Screen

Power
Button

Enter
Button

Exit
Button

Reset
Button

On/Off
Button

Transmit
LED

On/Off
Button

Reset
Button

Frequency
Band
Selection
Pins

Transmit
LED

Signal
Quality

Transmission
Symbols
