Wilbur Curtis Airpot Rack Assembly - Manual

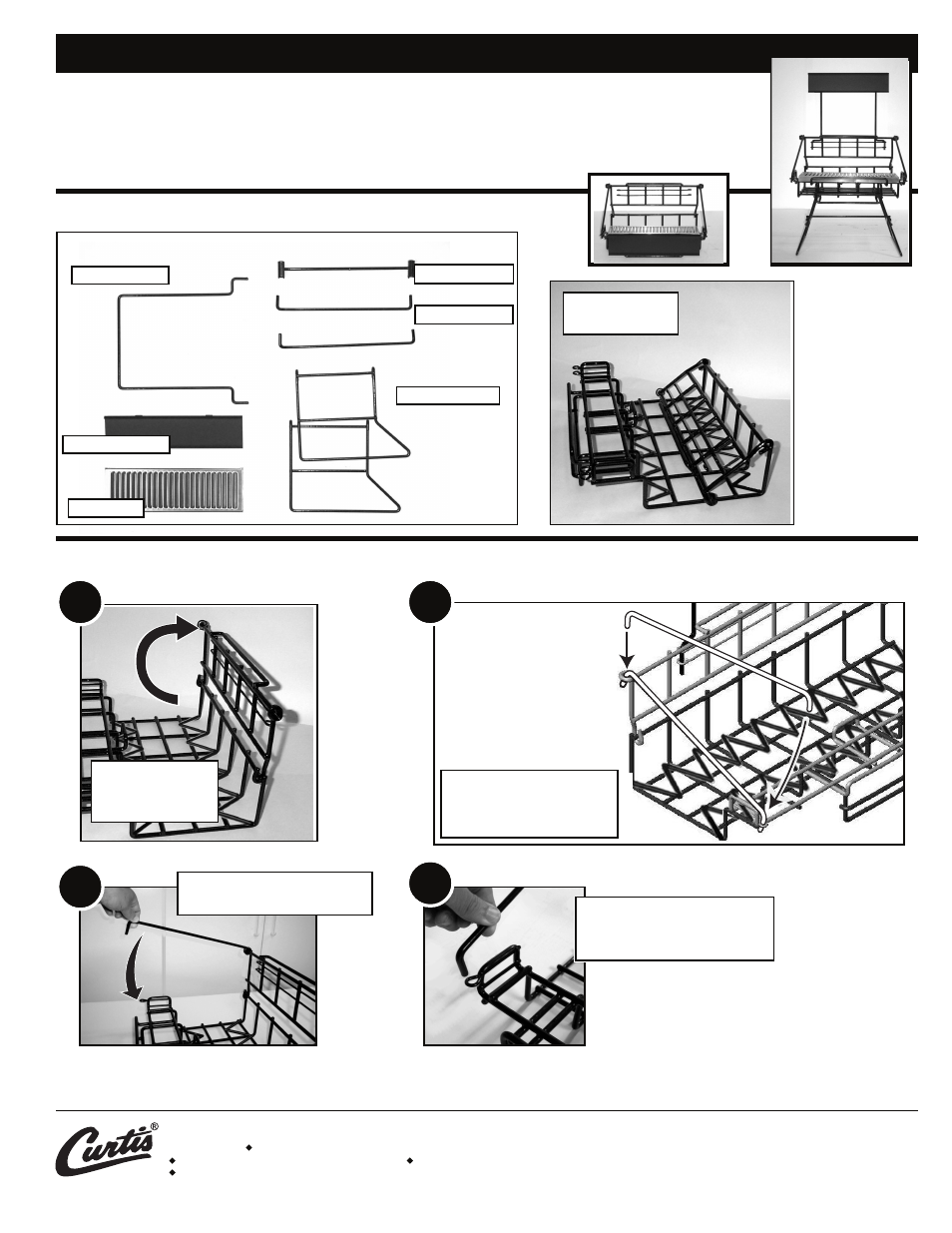

PARTS INCLUDED:
Instructions, Airpot Rack Assembly
Securing the Back
FOLDING LEGS
ROTATE HINGED
BACK TO UPRIGHT
POSITION
Wire airpot racks are easy to assemble. These racks are available in two and three airpot widths. Racks
can be combined to lock together and can be configured as two, three, four, five or six airpot groups.
Two-wide airpot racks are shown throughout these instructions; the three-wide assembly is identical
except for Attaching Legs, page 2.
AIRPOT RACK
ASSEMBLY
1
3
4
INSERT DOWNTURNED FRONT
OF BUTTRESS INTO HOLE ON
FRAME.
ROTATE BUTTRESS DOWN TO
FRONT OF FRAME.
Note: At this point, airpot rack may be used as a single level group of airpots of two or three across.
SIGN HANGER
LABEL HOLDER
DRIP TRAY
BUTTRESSES
CROSS BRACE
