Typical system configuration, Typical system configuration –17 – Vinten Radamec SP-2000 Pedestal User Manual
Page 27
SP-2000/X-Y
Safety & Introduction
User Manual
1-17
Typical System Configuration

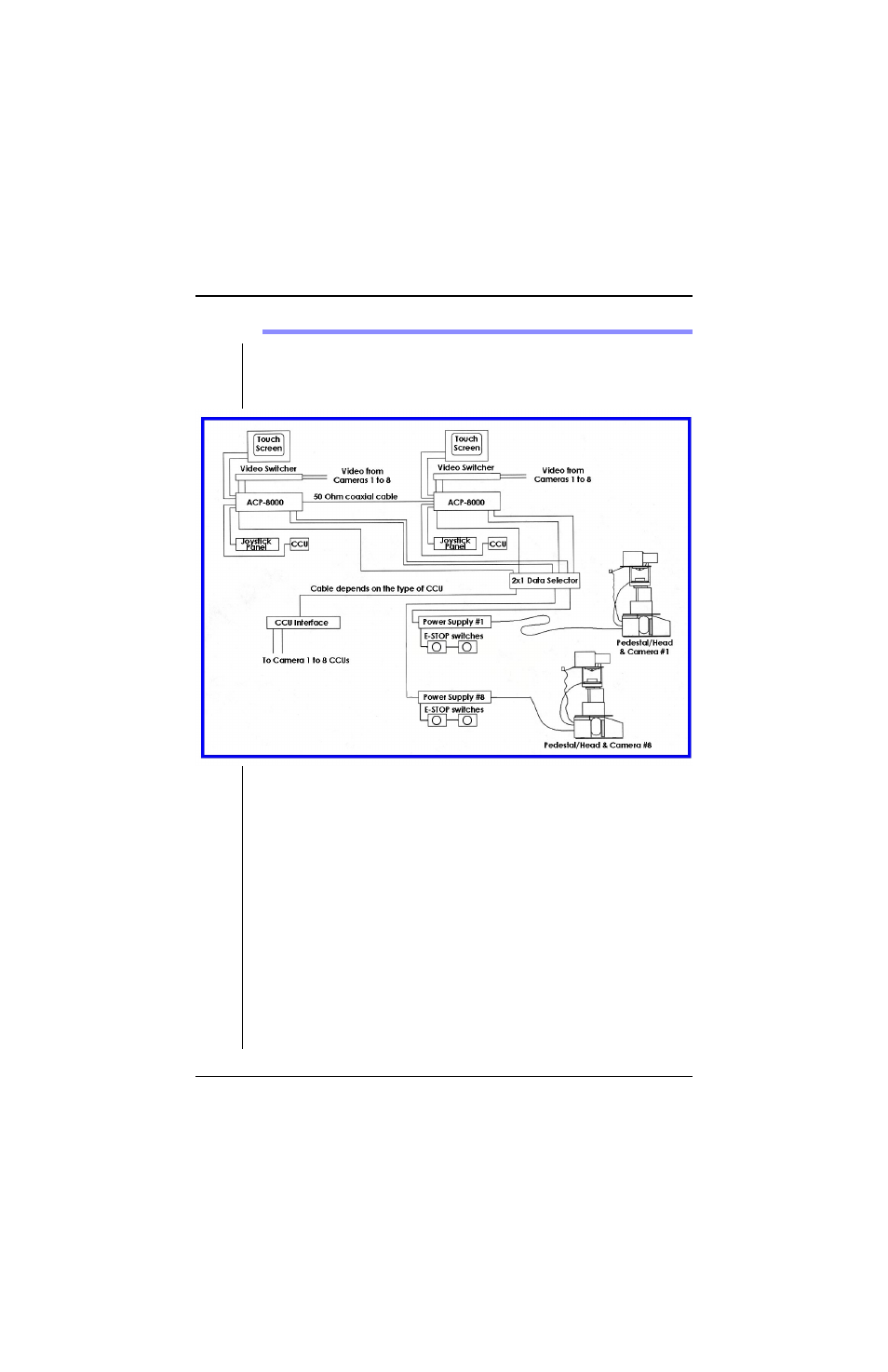

The diagram below illustrates the interconnection of a typical AutoCam™ sys-
tem.
In this example, two ACP controllers are installed to provide backup and/or
workload sharing. The 2x1 Data Selector routes the selected data lines to the
power supplies and optional CCU interface.
