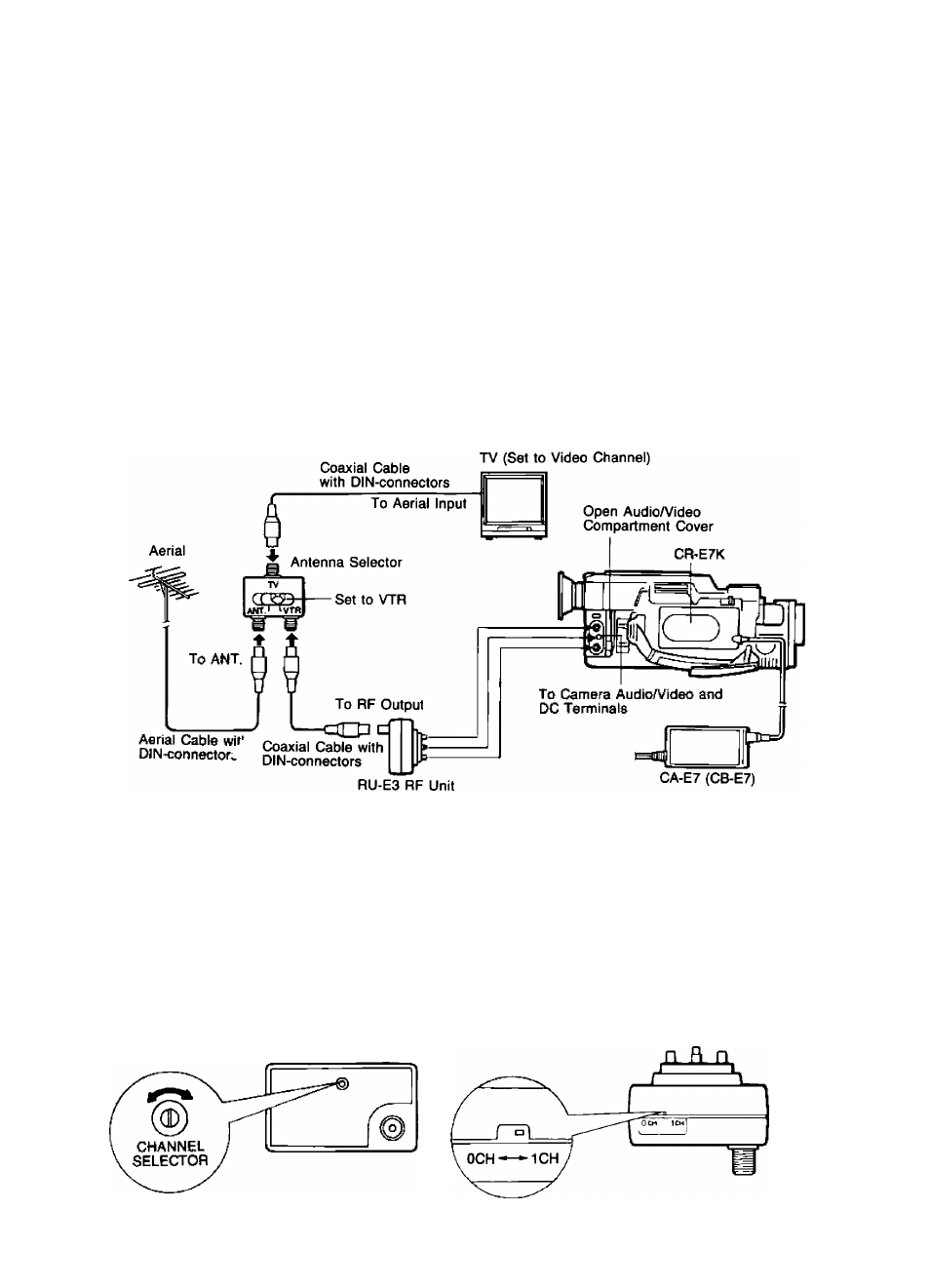

Using TV without Audio/Video inputs

Connection

Procedure

The RU-E3 RF Unit and a power source are needed for playback on a TV that
does not have Audio/Video inputs. You can use the CR-E7K Charge Coupler
together with the CA-E7 Compact Power Adapter (or the optional CB-E7 Car

Battery Adapter) or the BP-E77K Battery Pack as a power source.

• See p.11 for details on how to connect up the Charge Coupler and Compact

Power Adapter (or Car Battery Adapter).

• Refer to the RU-E3 RF Unit instructions on p.24.

Selecting the Video Channel

The video channel is the channel in your area not occupied by a broadcasting station that may be

used for playback and monitoring (channel 30—39 selectable, European model; channel 0 or 1

selectable, Australian model). If you are using a TV without audio/video inputs, set both the TV and
the RF unit to the video channel for playback. To set the video channel on the RU-E3, use a small
flathead screwdriver.

European Model

Australian Model
