CA-E7 Compact

CB-E7 Car Battery

Power Adapter

Adapter (Option)

Using AC Power

Using Car Battery

Plug into an mains outlet.
Input voltage: 100—240V AC,

50/60 Hz

• Use together with the CR-E7K

Charge Coupler.

Plug into cigarette lighter socket.

For use only with 12 or 24V DC
negative-ground car battery.

• Use together with the CR-E7K

Charge Coupler.

• Refer to CA-E7 and CB-E7 instruction manuals for further details.

Connection Procedure

Adapt«or c=r

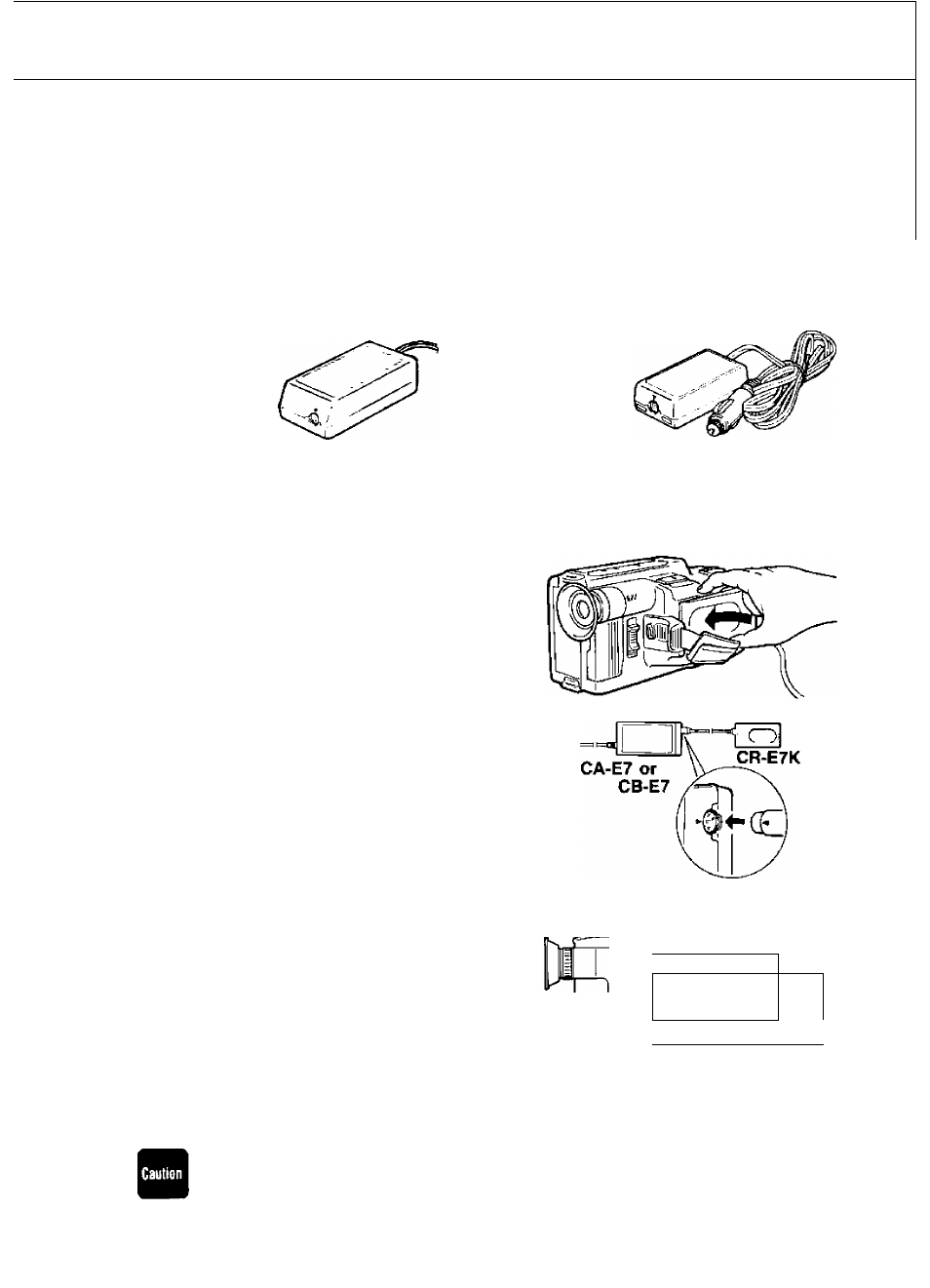

Insert Charge Coupler
into power source

compartment.

• Insert and remove in the same way as the

Battery Pack. (See p.10)

Attach Charge Coupler
cable to Compact Power

Adapter (or Car Battery
Adapter) connector.

• Align triangular marks on cable and

connector.

Attach Charge Coupler

cable to grip belt as
shown.

• Refer to Compact Power Adapter or Car

Battery Adapter instruction manuals for

further details.

j C 3

ij.

Using the Compact Power Adapter may cause the TV to emit noise. It this

occurs, move the Compact Power Adapter further away from the TV or aerial
cable.
