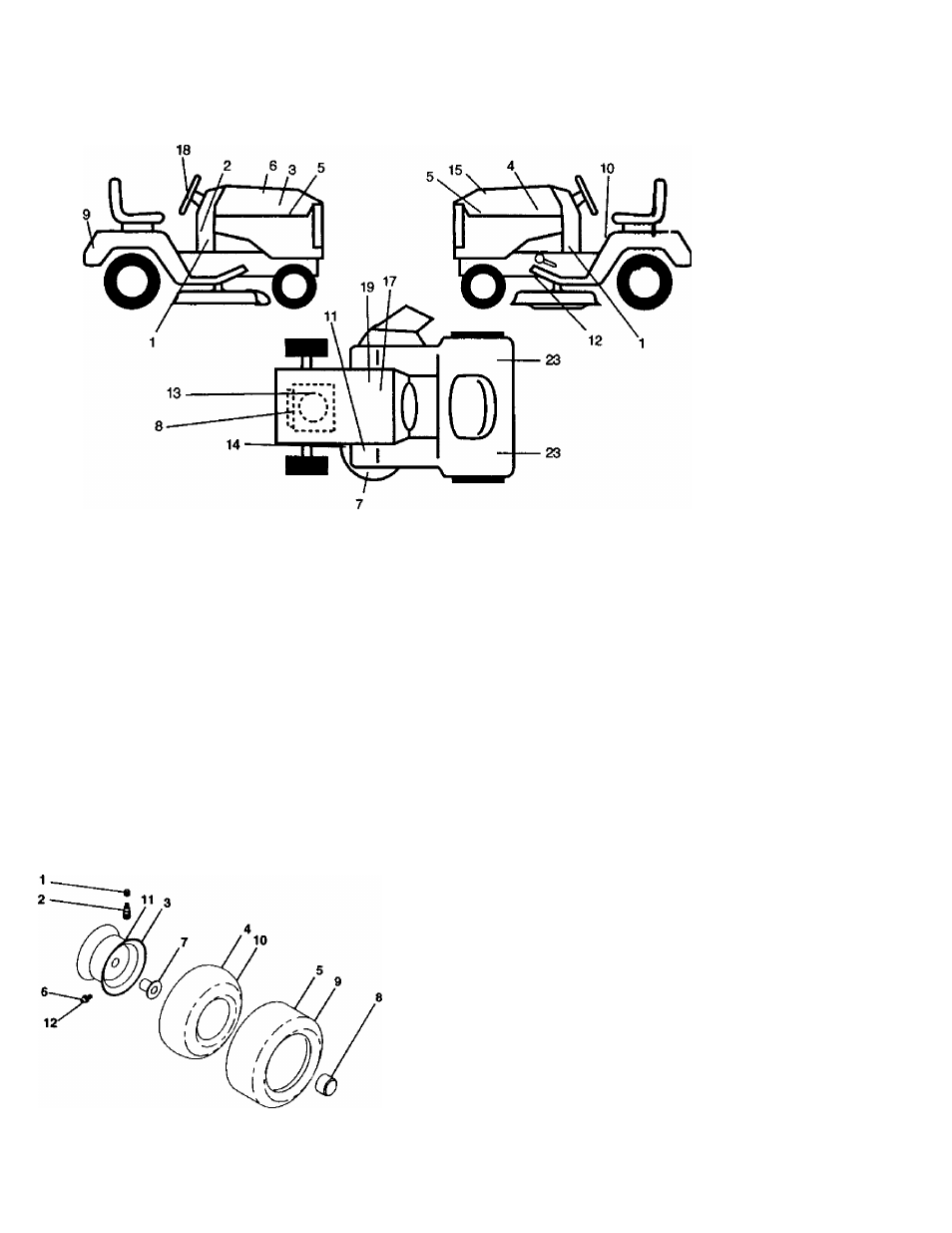

DECALS
TRACTOR - - MODEL NUMBER 917.275013
KEY PART KEY PART
NO. NO. DESCRIPTK)N NO. NO.
1 177375 Decal, Dash Panel, Lower 13 164884
2 164085 Decal, Dash 14 175291
3 171702 Decal, Hood, RH 15 181498
4 171703 Decal, Hood, LH 17 149516
5 177415 Decal. Hood Side Panel 18 164065
6 133644 Decal, Maintenance 19 138047
7 178482 Decal, Deck Hvy Dty 23 106202X
6 177416 Decal, Engine - - 138311
9 163204 Decal, Fender, Craftsman
10 156439 Decal, Fender Danger - - 179768X428
11 181249 Decal. Clutch/Brake - - 179769X428
12 146047 Decal, V-Belt Drive Schematic - - 181131
181132
DESCRIPTION
Decal, Blower Hou$ing
Decal, V-Belt Schematic
Decal, RepI Pan^
Decal, Battery pnge/Poi
Decal, Insert SÚg
Decal, Battery
Reflector, Talllight
Decal, Handle Ltt Height
Adjust (Lift Hanr^ek
Pad, Footresl,LH
Pad, Footrest,RH
Manual, Owrier'a (Eng)
Manual, Owner's (Span)
WHEELS & TIRES
KEY PART
NO. NO.
1
2
3
4
5
6
8
9 10
11
12
59192
65139
106228X427
8134H
106230X
278H
9040H
104757X428
105588X
7184.]
106277X428
6856M
144334
DESCRIPTION
Cap, Valve, Tire
Stem, Valve
Rim Assembly, Front
Tube, Front (Service item Only)
Tire, Front
Fitting, Grease (Front Wheel
Only)
Bearing, Flange (Front Wheel
Only)
Cap, Axle (Front Wheel Only)
Tire, Rear
Tube, Rear (Service Item Only)
Rim Assembly, Rear
Fitting, Grease
Sealant, Ttre (10 oj. Tube)
NOTE; All component dimensions given In U.S. inches
1 inch = 25.4 mm
