TRACTOR - - MODEL NUMBER 917.270512

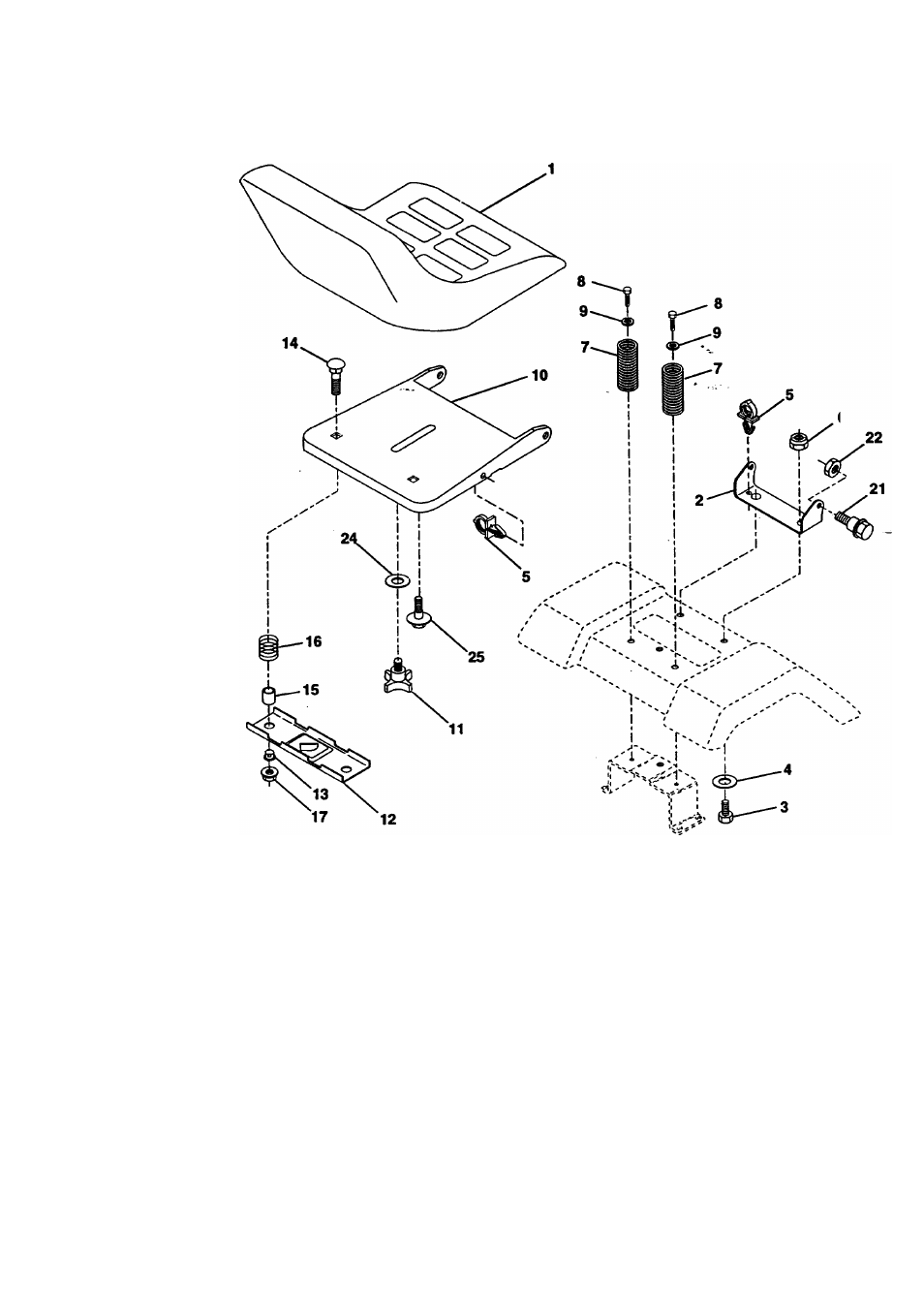

SEAT ASSEMBLY
KEY
NO. PART
NO.
DESCRIPTION
KEY
NO. PART
NO. DESCRIPTION
1 140122 Seat 13 121248X Bushing Snap BIk Nyl 50 Id
2 140551 Bracket Pvt St 14 72050412 Bolt Rdhd Sht Nk 1/4-20x1-1/2
3 STD523710 Bolt Rn Hex 3/8-16unc X1 15 134300 Spacer Split 28x 96 Yel Zinc
4 19131610 Washer Rat 13/32 X1 X10 Ga 16 121250X Spring Cprsn 1 27 Bik Pnt
5 145006 Clip Push-In Hinged 17 123976X Nut Lock 1/4 Lge Rg Gr 5 Zinc
6 STD541437 Locknut Hex W/Wsh 3/B-16 21 153236 Bolt ShkJ 5/16-18 Unc
7 124181X Spring Seat Cprsn 2 250 BIk Zi 22 STD541431 Nut Lock Hex “W/lns 5/16-18-
8 17490616 Screw Thdrol 3/8-16 X1 Ty-tt 24 19171912 Washer 17/32 X1-3/16 X12 Ga
9 19131614 V\feisher 13/32 X1 X14 Ga 25 127018X Bolt Shoulder 5/16-18X62
10
11
12
155925
120068X ,
121246X
Pan Seat
Knob Seat 1/2-13 Unc BIk
Bracket Mounting Switch
NOTE: Ail component dimensions given in U.S. inches
1 inch = 25.4 mm
