Craftsman 917.270512 - Manual (Page 33)

TRACTOR - - MODEL NUMBER 917.270512

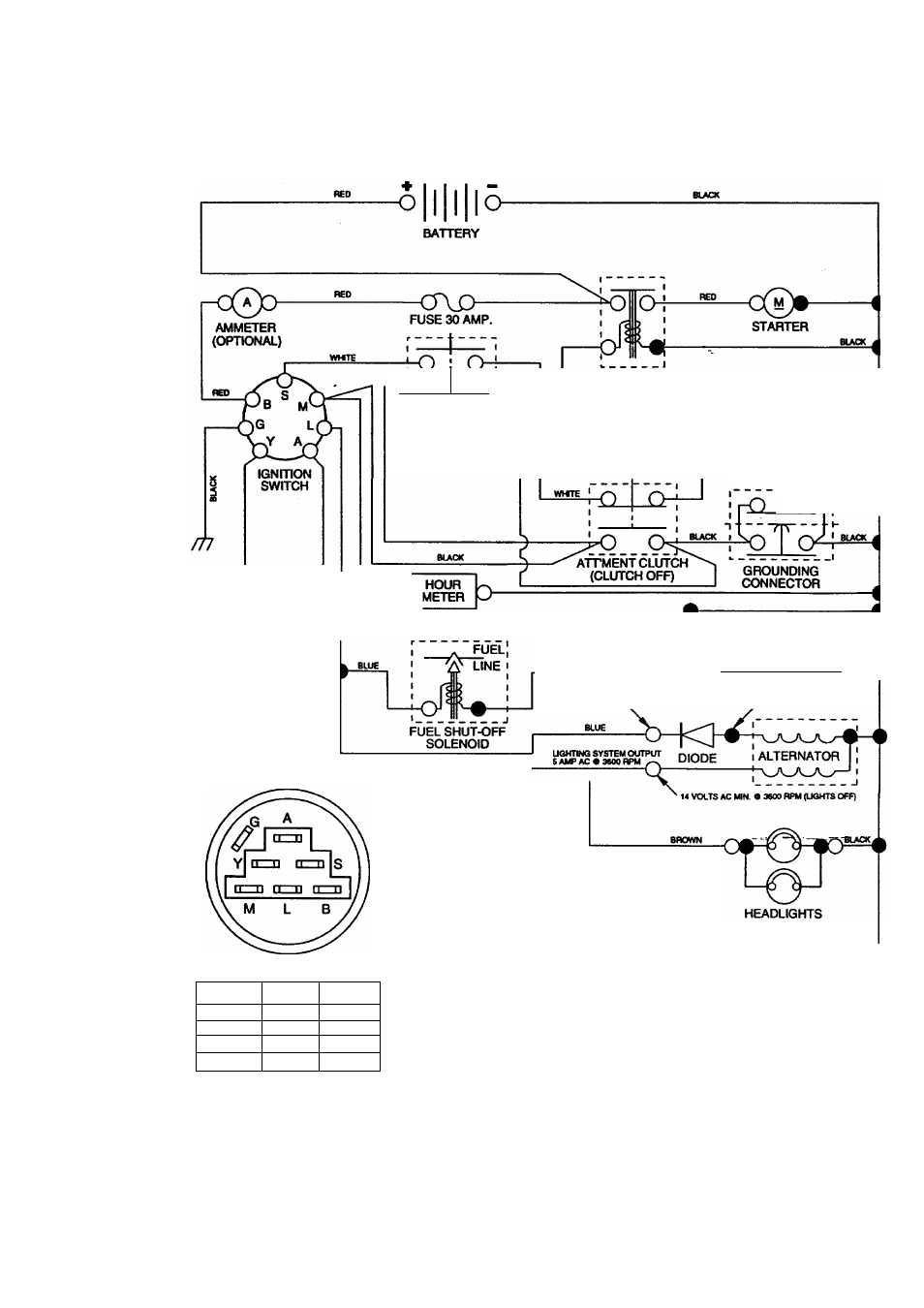

SCHEMATIC
to O
CLUTCH/BRAKE
(PEDAL UP)
SOLENOID
WHTTE
SEAT SWITCH
(NOT OCCUPIED)
r
cj
(OPTIONAL)
-c IGNITION
UNIT
SPARK
___n PLUG
W GAP W
(2 PLUGS ON
TWIN CYL. ENGINES)
CHARQINQ SYSTEM OUTPUT
SAMP DC O 3600 RPM 28 VOLTS AC MM. • 3600 RPM
(CHARGING SYSTEM DISCONNECTED)
IGNITION SWITCH
posmoN CIRCUIT “MAKE"
OFF G + M + L NONE
RUN/UGHT B-4-L A + Y
RUN B-fL NONE
START B + L + S NONE
NOTE
YOUR TRACTOR IS
EQUIPPED WITH A SPECIAL
ALTERNATOR SYSTEM.
THE LIGHTS ARE NOT
CONNECTED TO THE
BATTERY. BUT HAVE THEIR
OWN ELECTRICAL SOURCE.
BECAUSE OF THIS. THE
BRIGHTNESS OF THE LIGHTS
WILL CHANGE WITH ENGINE
SPEED. AT IDLE THE LIGHTS
WILL DIM. AS THE ENGINE IS
SPEEDED UP. THE LIGHTS
WILL BECOME THEIR BRIGHTEST.
m
NON-REMOVABLE
CONNECTIONS
REMOVABLE
CONNECTIONS
WIRING INSULATED CUPS
NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR
SERVICING OF UNIT. THEY SHOULD BE REPLACED TO
PROPERLY SECURE YOUR WIRING.
33
