KNOWYOUR-mACTOR
YOUR TRAcSon^”^ MANUAL AND SAFETY RULES BEFORE OPERATING
Compare the illustrations with your tractor to familiarize yourself with the locations of
vanous controls and adjustments. Save this manual for future reference.
Our tractors conforrn to the safety standards of the American
_______________National Standards Institute.

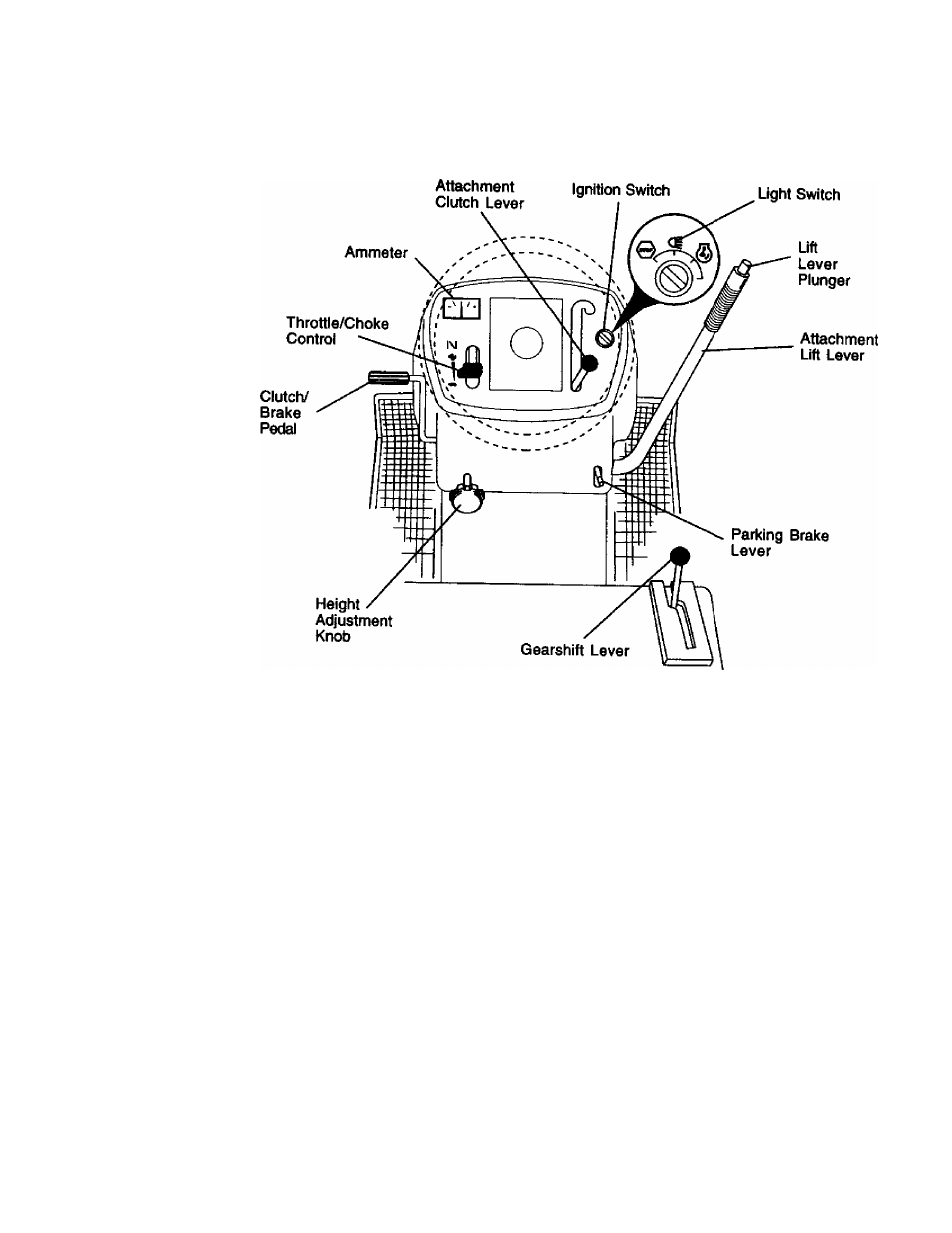

AMMETER - Indicates charging (+) or
discharging (-) of battery.
ATTACHMENT CLUTCH LEVER - Used
to engage the mower blades, or other
attachments mounted to your tractor
ATTACHMENT LIFT LEVER - Used to
raise, lower, and adjust the mower deck
or other attachments mounted to your
tractor.
CLUTCH/BRAKE PEDAL - Used for
declutching and braking the tractor and
starting the engine.
GEARSHIFT LEVER - Selects the speed
and direction of tractor.
IGNITION SWITCH - Used for starting
and stopping the engine.
LIFT LEVER PLUNGER - Used to
release attachment lift lever when
changing its position.
LIGHT SWITCH - Turns the headlights on
and off.
PARKING BRAKE LEVER - Locks
clutch/brake pedal into the brake
position.
THROTTLE/CHOKE CONTROL - Used
for starting and controlling engine speed
HEIGHT ADJUSTMENT KNOB - Used
to adjust the mower cutting height.
