TRACTOR - MODEL NUMBER 917.271820

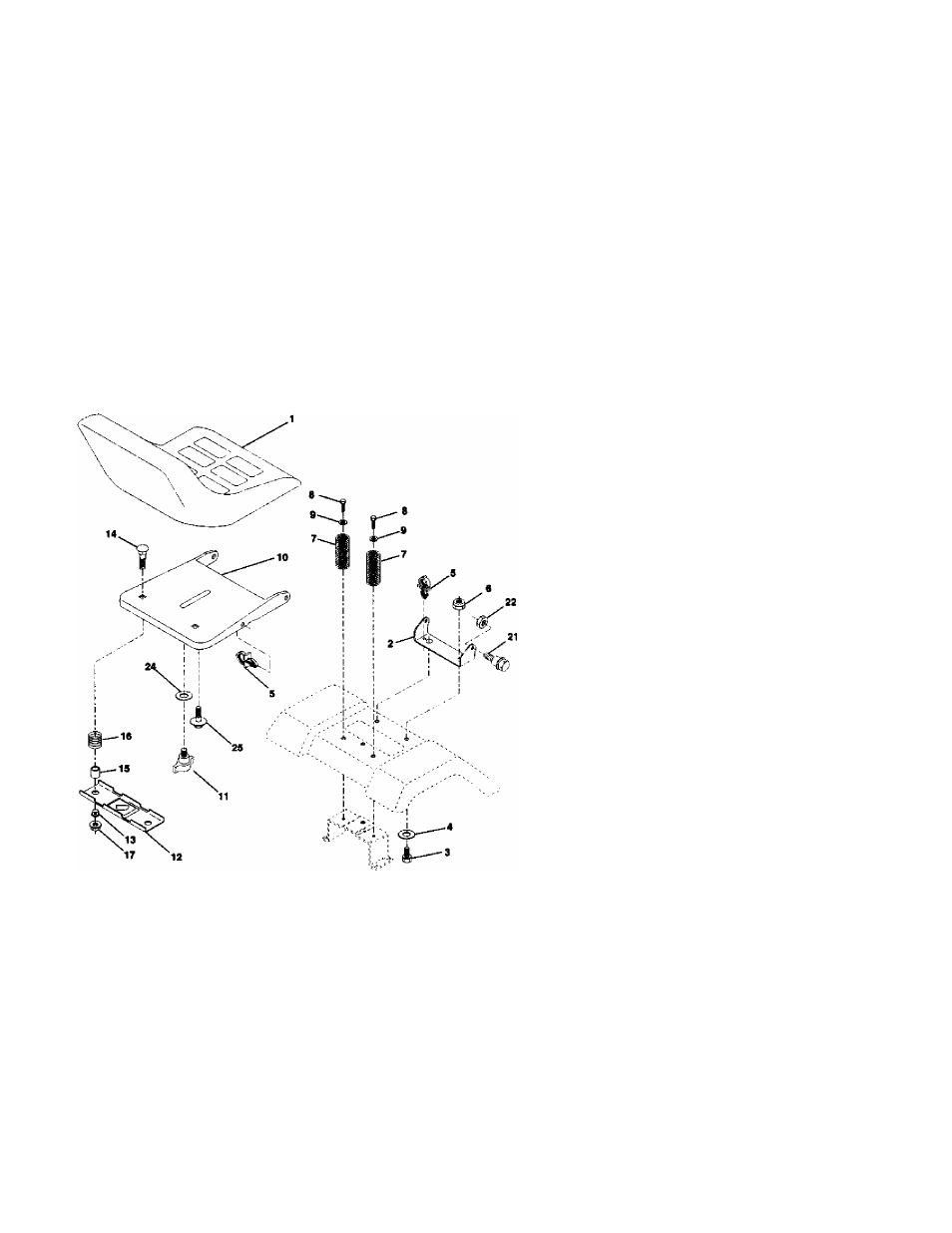

SEAT ASSEMBLY
KEY
NO.
PART
NO.
DESCRIPTION
KEY
NO.
PART
NO.
DESCRIPTION
1
140123
Seat 3450 BIkybIk 6'raftsman
13
121248X
Bushing Snap BIk Nyl 50 Id
2
140551
Bracket Pnt Pivot Seal (Wk )
14
72050412
Bolt Rdhd Sht Nk 1/4-20x1-1/2
3
71110616
Boll Fin Hex 3/8-16unc X 1
15
134300
Spacer Split 28 X 96 Zinc
4
19131610
Washer 13/32 X 3/4 X 10 Ga
16
121250X
Spring Cprsn 1 27 BIk Pnt
5
14S006
Clip Push In Hinged
17
123976X
Nut Lock 1/4 Lge Fig Gr 5 Zinc
6
STD541437
Nut Hex Lock w/lns 3/8-16 Unc
21
171852
Bolt Shoulder 5/16-18 Unc-2A
7
124181X
Spring Seat Cprsn 2 250 BIk Zl
22
STDS41431
Nut Hex Lock w/lns 5/16-18
8
17000616
Screw 3/8-16x1,5 SMGML
24
19171912
Washer 17/32 X 1 -3/16 X12 Ga.
9
19131614
Washer 13/32 X 1 Xl4Ga
25
127018X
Bolt Shoulder 5/16-18 X 62
10
11
174894
166369
Pan Pnl Seat (Mk)
Knob Seat
NOTE: All component dimensions given In U.S. Inches
12
121246X
Bracket Pnt Mounting Switch
1 incn = Z5.4 mm
