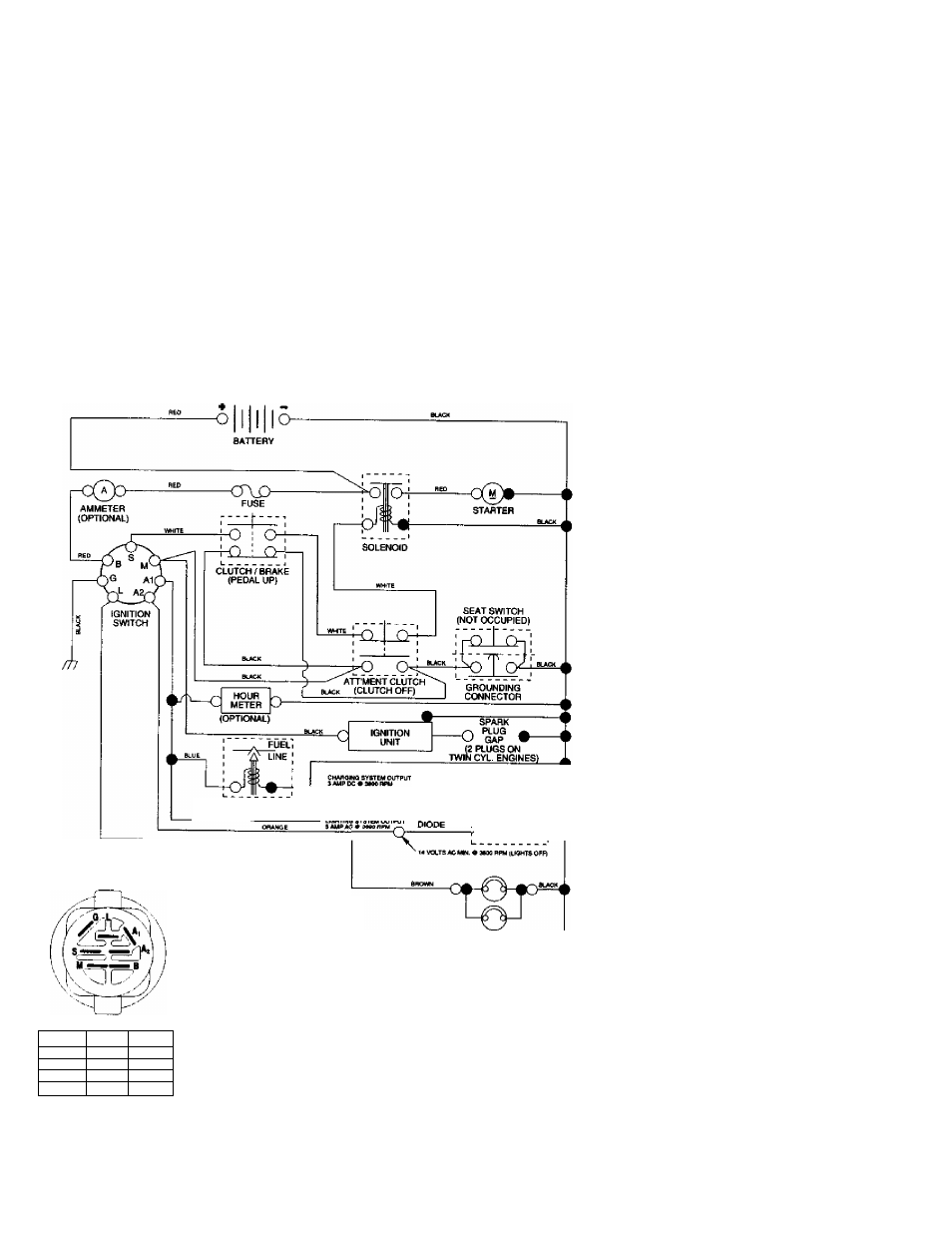

SCHEMATIC

TRACTOR - MODEL NUMBER 917.271820

FUEL SHUT-OFF SOLENOID

(IF SO EQUIPPED)

NOTE

YOUR TRACTOR IS
EQUIPPED WITH A SPECIAL
ALTERNATOR SYSTEM.

THE LIQHTSARENOT

CONNECTED TO THE
BATTERY, BUT HAVE THEIR
OWN ELECTRICAL SOURCE.
BECAUSE OF THIS, THE
BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE
SPEED. AT IDLE THE LIGHTS
WILL DIM. AS THE ENGINE IS
SPEEDED UP, THE LIGHTS
WILL BECOME THEIR BRIGHTEST.

zi voitsACMH. aaiwnpu

tCHAHQINa SYSTEM №9COWECTED|

ALTERNATOR [,

HEADLIGHTS

IGNmON SWITCH

POSITION

CIRCUrr

'mAKE-

OFF

M-M3+A1

NONE

nuW LIGHT

&fAI

A2+L

RUN

B+AI

NONE

START

B t S + A l

NONE

NON-REMOVABLE

CONNECTIONS

REMOVABLE

CONNECTIONS

WIRING INSULATED CUPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY SHOULD BE REPLACED TO
PROPERLY SECURE YOUR WIRING.
