SERVICE AND ADJUSTMENTS

A CAUTION:

Before performing any

service and adjustments:

1. Stop engine.
2. Make sure the rotating lines and all

moving parts have completely
stopped.

3. Disconnect spark plug wire from spark

plug and place where it cannot come
in contact with plug.

TRIMMER

TO ADJUST TRIMMING HEIGHT

See "TO ADJUSTTRIMMING HEIGHT' in the
Operation section of this manual.

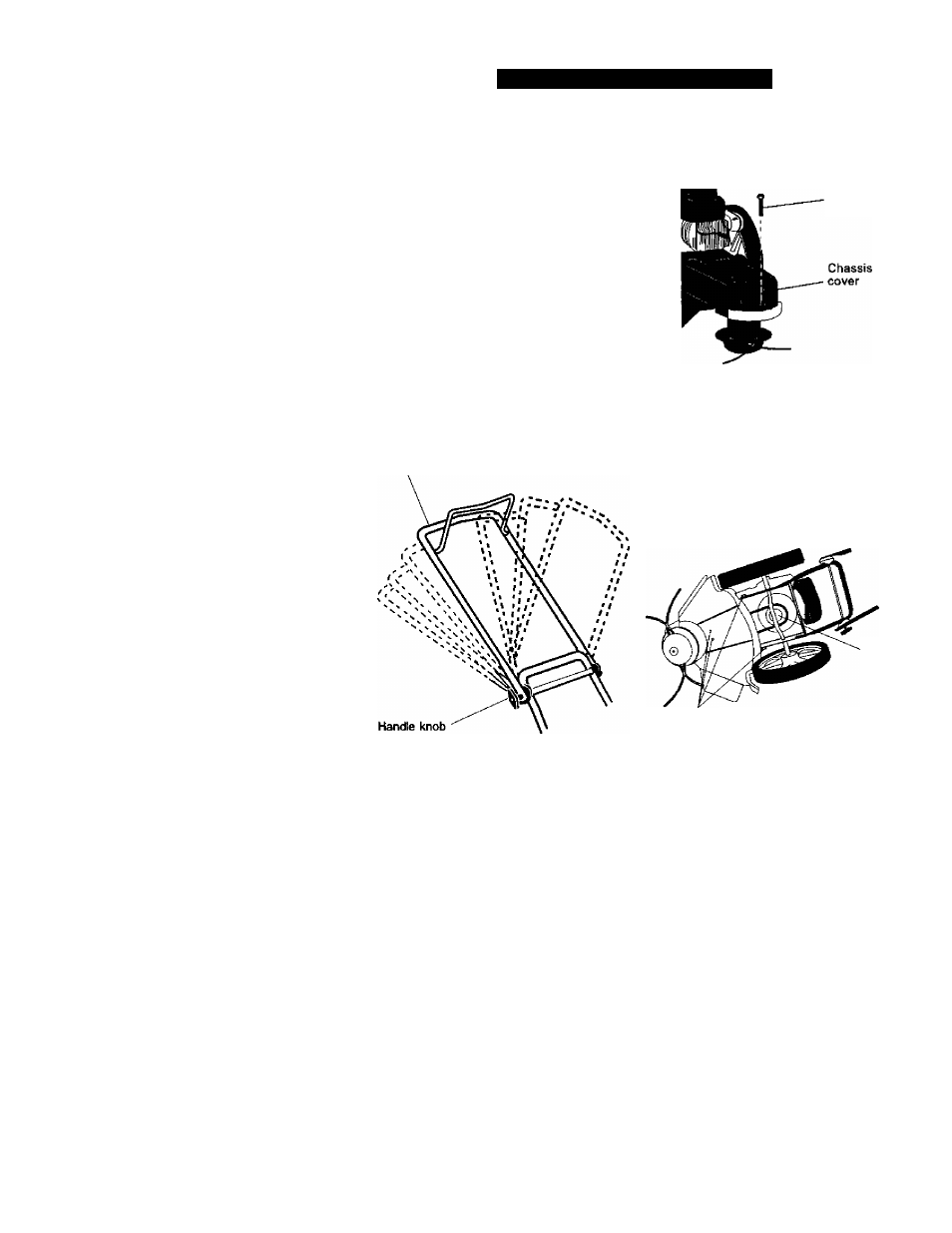

TO ADJUST HANDLE

The upper handle may be adjusted to
different height positions.

• Loosen handle knob only enough to

allow the upper handle to pivot to the
desired position.

• Tighten handle knob securely.

NOTE:

The handle knob and bolt may be

reversed for left handed operation.

Upper handle

TO REMOVE/REPLACE TRIMMER HEAD

DRIVE BELT

1. Remove screw at front of chassis

cover.

2. Lift cover up and away from trimmer.

Screw

Remove the two (2) so'ews on sides
of trimmer securing the debris shield.
Turn trimmer on its side with carbure
tor and fuel cap up.

Remove the two (2) screws on
underside of trimmer securing the

debris shield.

Slide the debris shield rearward and
remove.
Remove belt from engine pulley on
crankshaft.

Engine

pulley

Debris shieid screws
