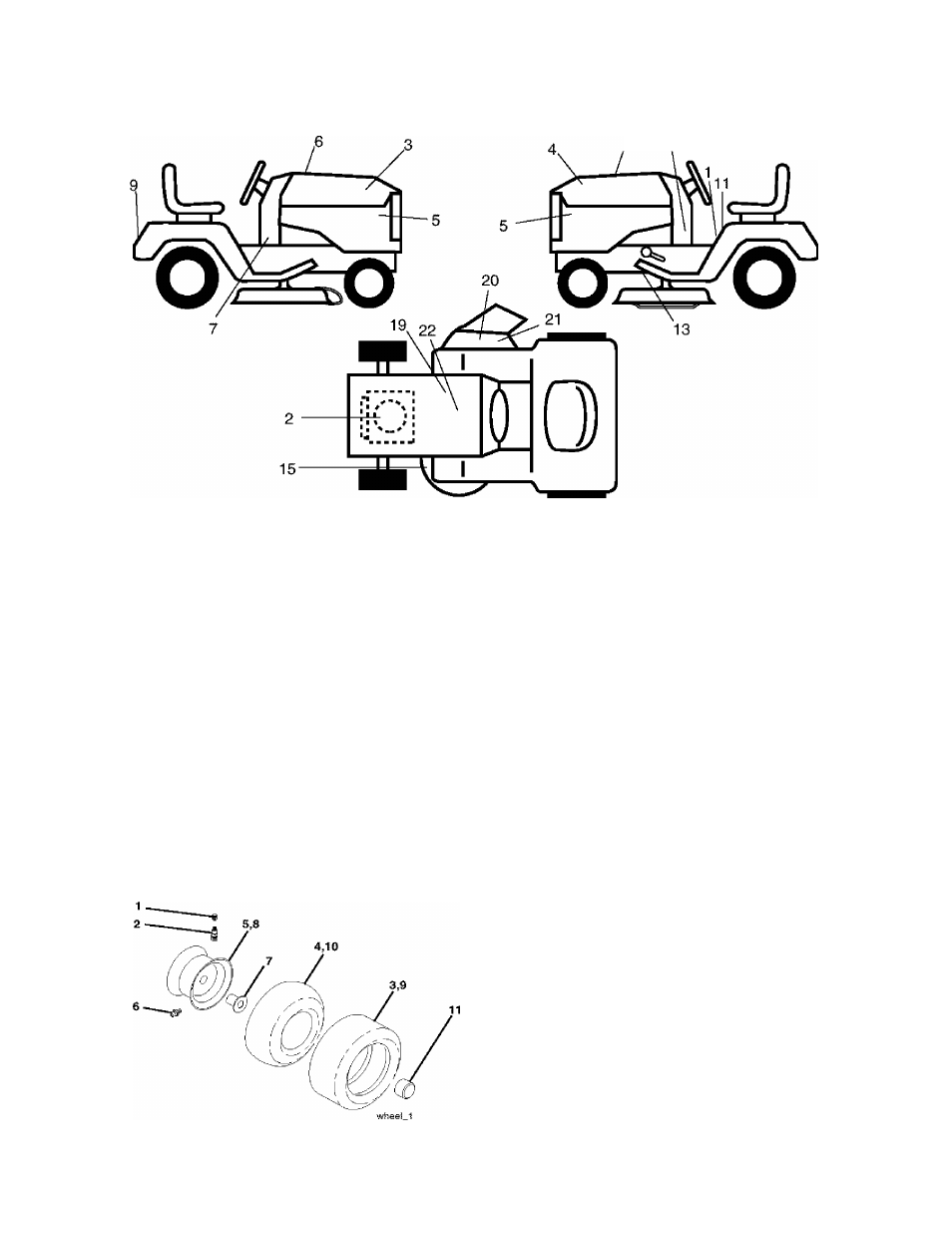

DECALS
TRACTOR - - MODEL NUMBER 917.273510
8
7
KEY
NO.
PART
NO.
DESCRIPTION
KEY
NO.
PART
NO.
DESCRIPTION
1
156439
Decal, Fender Danger Sears
13
146046
Decal, V-Belt Dr Sch Tractor
2
189622
Decal, Engine
15
160396
Decal, Mower Drive Schematic
3
184728
Decal, Hood, R.H.
19
138047
Decal, Battery Diehard Sears
4
184729
Decal, Hood, LH.
20
172331
Decal, Deck Sears
5
184730
Decal, Hood Side
21
179128
Decal, Deck
6
133644
Decal, Maintenance
22
149516
Decal, Battery
7
189647
Decal, Lower Dash
..
138311
Decal, Lift Handle
8
188999
Decal, Rpicmnt
- -
184310X428
Pad Footrest LH STLT
9
184899
Decal, Fender, Craftsman Gold
- -
184311X428
Pad Footrest RH STLT
11
156368
Decal, Fender STLT Oper Inst
189938
Owner's Manual, English
E/S
- -
189939
Owner's Manual, Spanish
WHEELS AND TIRES
KEY PART
NO. NO.
1
2
3
4
5
6
8
9
10
11
59192
65139
106222X
59904
106732X624
278H
9040H
106108X624
122082X
7152J
104757X428
144334
DESCRIPTION
Valve Cap, Tire
Stem, Valve
Tire, Front
Tube, Front Tire
{Not Provided, Service item Only)
Rim, Front
Fitting, Grease (Front Wheel
Only)
Bearing, Flange (Front Wheel
Only)
Rim, Rear
Tire, Rear
Tube, Rear Tire
(Not Provided, Service Item Only)
Cap, Axle
Sealant, Tire 10oz.
NOTE:
All component dimensions given in U. S.
inches 1 inch = 25.4 mm
