Craftsman 917.273510 - Manual (Page 40)

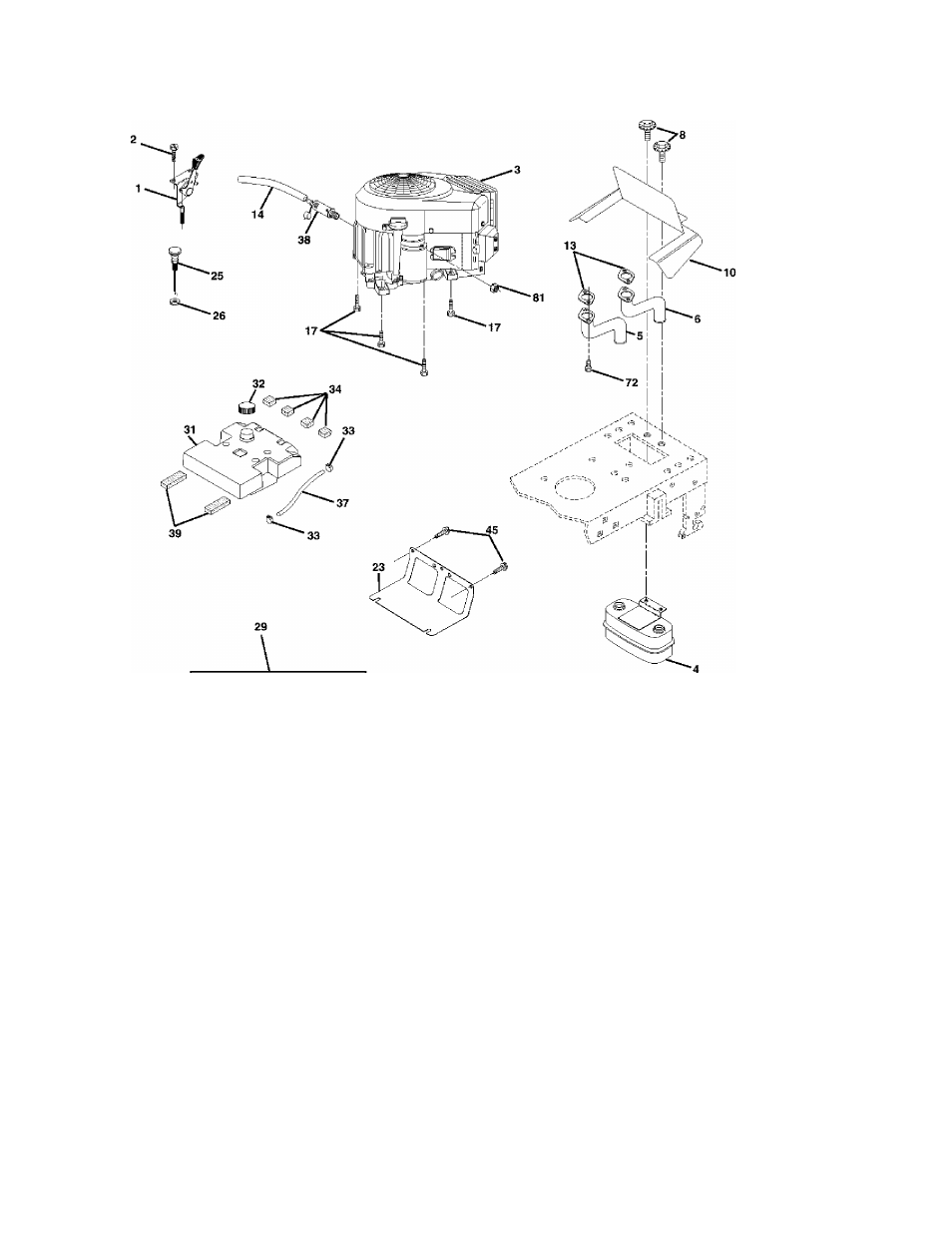

ENGINE
TRACTOR - - MODEL NUMBER 917.273510
OPTIONAL equipment
Spark Arrester
engine-bs !nt0k-tiiV!n_29
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 170546 Control, Throt Paddle 31 157103 Tank, Fuel
2 17720408 Screw, Hex Thd Cut 1/4-20 x 1/2 32 161696 Cap Fuel Guage
3 Engine, B&S, (See Breakdown) 33 123487X Clamp, Hose
No. 407577-0283-E1 34 106082X Spacer Pad
4 149723 Muffler Exhaust 37 8543R Line, Fuel
5 159955 Exhaust Asm. Left 38 181654 Plug, Oil Drain Easy
6 160589 Exhaust Asm. Right 39 109227X Pad Idler
8 171877 Bolt 5/16-18 unc X 3/4 W/Sems 45 17000612 Screw Hex Wsh 3/8-16 x 3/4
10 162797 Shield Browning 72 183906 Screw 5/16-18 X 1
13 165391 Gasket, Muffler 81 73510400 Nut Keps Hex 1/4-20 Starter Nut
14 148456 Tube Drain Oil Easy
17 17060624 Screw 3/8-16x1-1/2
23 169837 Shield, Brn/Dbr Guard
25 145996 Control Choke NOTE: All component dimensions given in U. S.
26 73920600 Nut Keps 3/8-24 unf inches 1 inch 1 = 25.4 mm
29 137180 Arrestor, Spark
