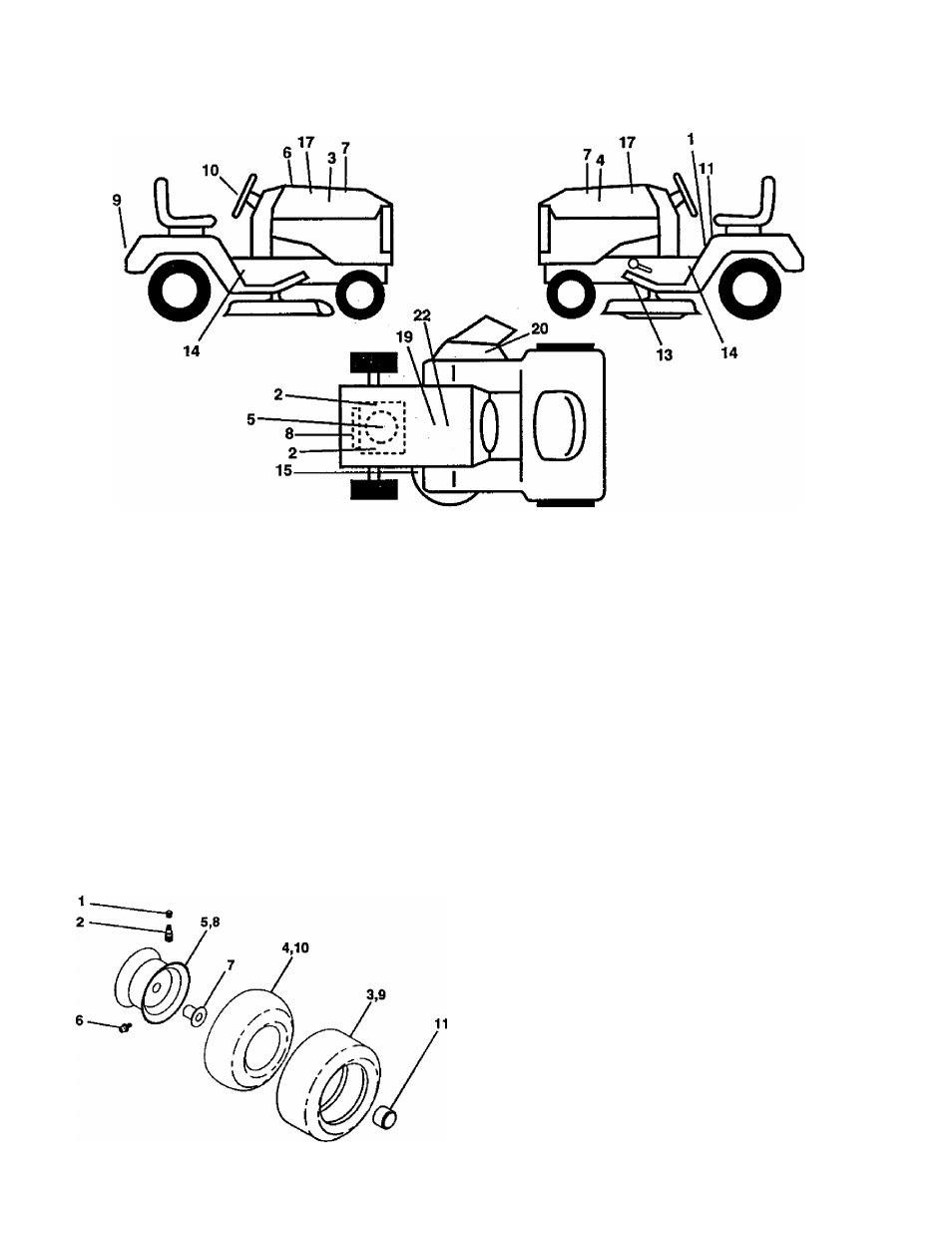

DECALS
REPAIR PARTS
TRACTOR - - MODEL NUMBER 917.259561
KEY
PART
KEY
PART
NO.
NO.
DESCRIPTION
NO.
NO.
DESCRIPTION
1
156439
Decal, Fender Danger Sears
14
147139
Decal Chassis 42“
2
160876
Decal, Engine 19.5 HP Turbo
15
160396
Decal Mower Drive Schematic
3
160284
Decal, Hood Rh Craftsman
17
158215
Decal Insert, Hood
4
160285
Decal, Hood Lh Craftsman
19
138047
Decal Battery Diehard Sears
5
160879
Decal, Engine Radius
20
156787
Decal Deck Mower EZ3 Mulching
6
133644
Decal, Maint Customer Sears Dorn
22
149516
Decal Battery
7
150927
Decal, Panel Side B&S
- -
138311
Decal Lift Handle
8
160880
Decal, Engine Air Cleaner Cover
- -
154515
Pad Footrest Lh STLT
9
146709
Decal, Fender Craftsman Gold
- -
154516
Pad Footrest Rh STLT
10
150333
Decal, Cap CNSMR Help Line SRS
- -
160872
Manual, Owner’s (English)
11
156368
Decal, Fender STLT Oper Inst E/S
- -
160873
Manual, Owner’s (Spanish)
13
146046
Decal V-belt Dr Sch
WHEELS & TIRES
KEY
PART
NO. NO.
1 59192
2 65139
106222X
59904
3
4
5 106732X427
6 278H
7 9040H
8 106108X427
9 122082X
10 7152J
11 104757X
--
144334
DESCRIPTION
Valve Cap, Tire
Stem, Valve
Tire, Front
Tube, Front Tire
(Not Provided, Service Item Only)
Rim, Front
Fitting, Grease (Front Wheel Only)
Bearing, Flange (Front Wheel Only)
Rim, Rear
Tire, Rear
Tube, Rear Tire
(Not Provided, Service Item Only)
Cap, Axle
Sealant, Tire (10 oz. Tube)
NOTE: All component dimensions given in U. S. inches
1 inch = 25.4 mm
