Note on the RRJ-89UCKA RFU kit

The RFU-89UCKA includes the (ollowing accessories:

- RFU adaptor (1)

- Antenna selector (1 )

- Antenna selector adaptor (1 )

Channel tor VCR

To view the playback picture of this unit, set the selector of the RFU adaptor to channel 3 or 4,

whichever channel is not active in your area, and select the same channel on the connected TV.

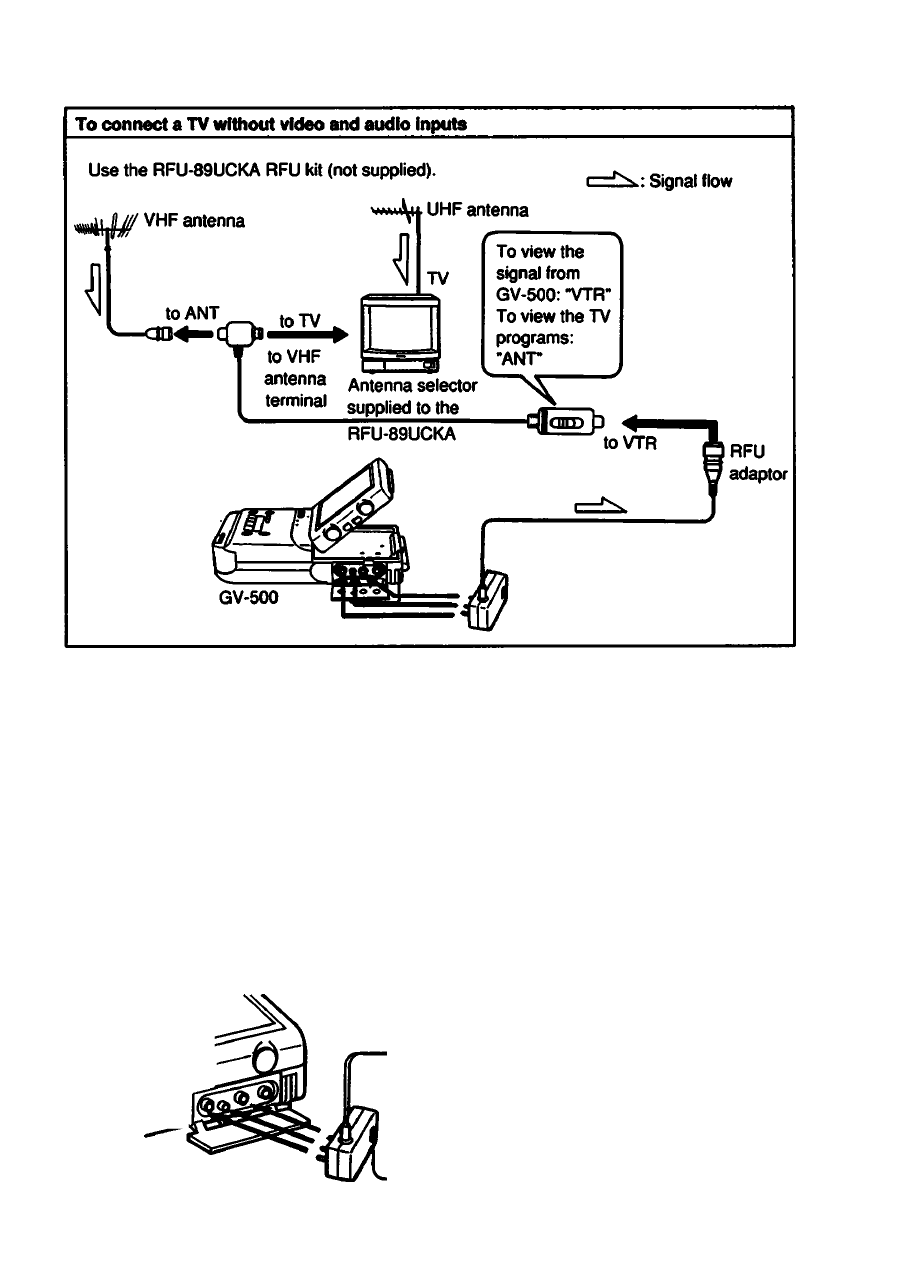

'^ connect the RFU adaptor

to AUolO L

to RFU DC OUT

to VIDEO

-a

RF OUT connector

-■cniU ^H^to your TV

If the VHF input terminal of your TV

is a 300-ohm twin-lead plug, use the
antenna selector adaptor supplied

with the RFU kit.

RFU unit selector

Setto3CH or4CH.
