Installing the DTV System

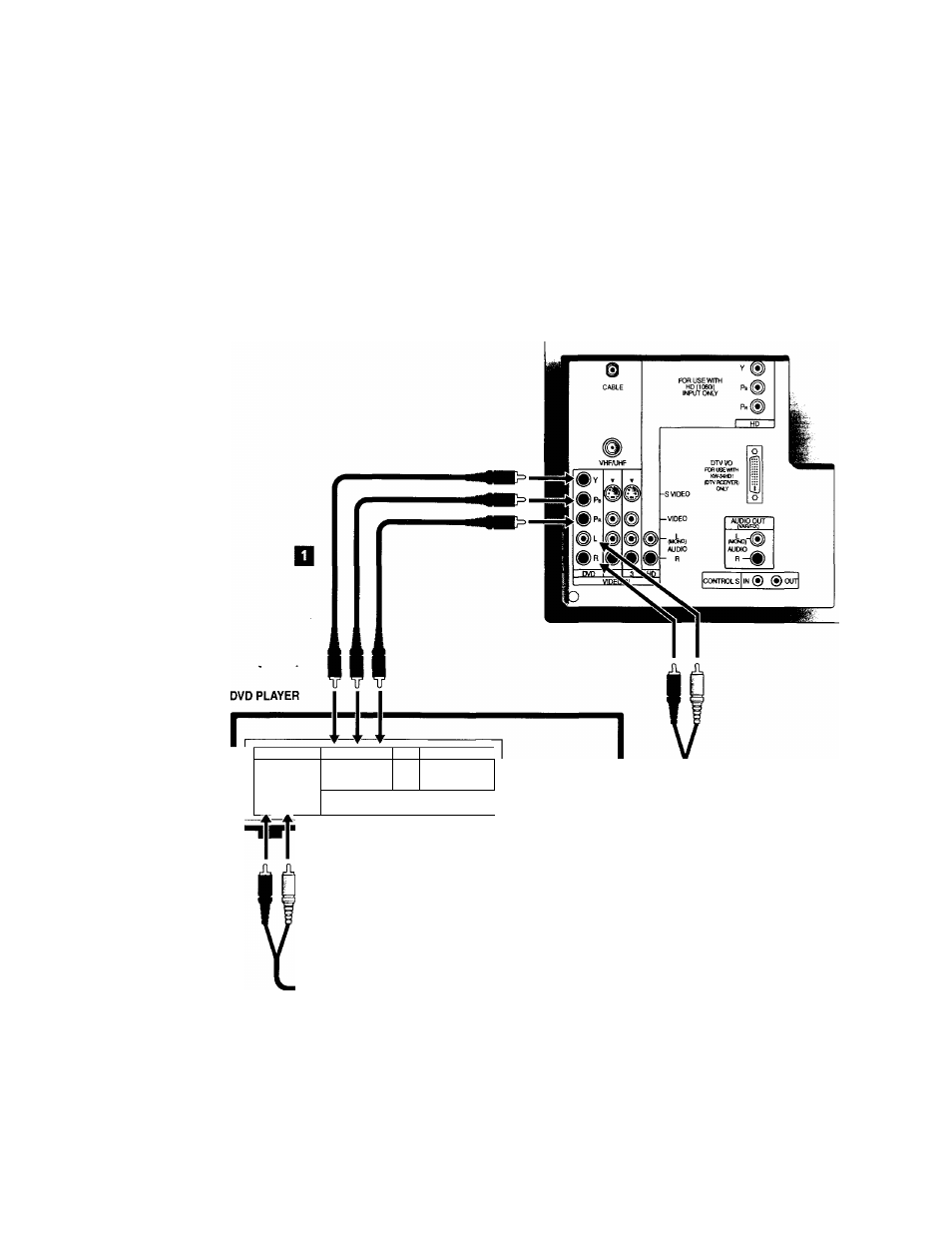

Connecting a DVD Player with Component Video Output Connectors

Using three separate component video cables, connect the DVD player's Y,

and

jacks to the Y,

and

jacks on the TV.

The Y, P

, and P

jacks on your DVD player are sometimes labeled Y C

, and C

, or Y B-Y and

R-Y. If so, connect the cables to like colors.

Using an audio cable, connect the DVD player's audio OUT jacks to the

TV's audio IN jacks.

LINE OUT

COMPONENT VIDEO OUT

S-UNK

DIGITAL OUT

R L VIDEO

(MOMO)

Y Ps P

^ ^

10)

OPTICAL COAXIAL

□ #
