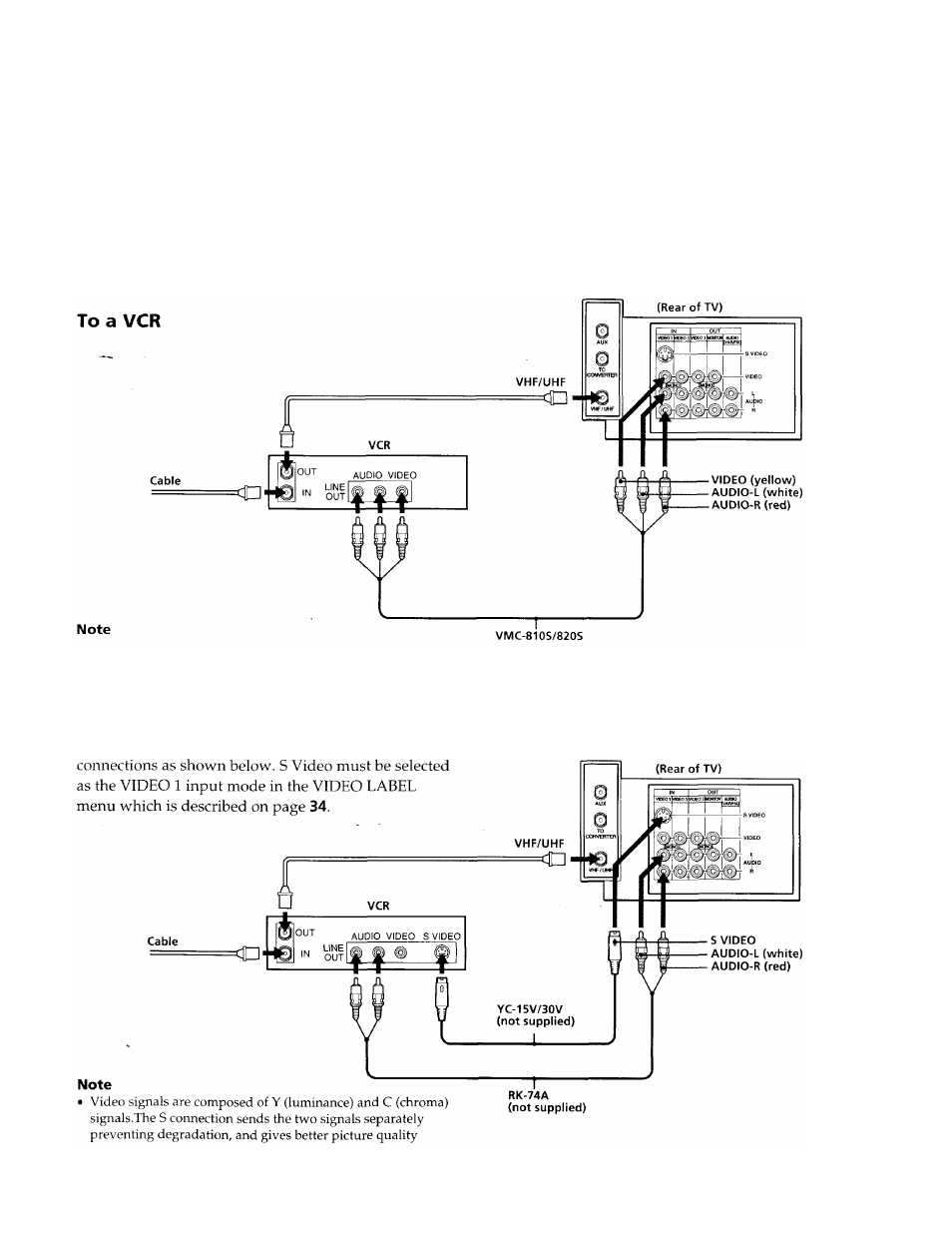

Connecting an antenna/cable TV system with a VCR

For connection details, see the instruction manual of
your VCR. Before making connection, disconnect the
AC power cords of the equipment to be connected.

Without a cable box

After making these connections, you will be able to do
the following:
• View the playback of video tapes
• Record one TV program while viewing another

program

• Watch two TV programs simultaneously by using

the PIP and P&P features. '

To connect a monaural VCR, connect the audio output of the

(not supplied)

VCR to AUDIO-L (mono) of VIDEO 1 IN on the TV.

To an S video equipped VCR

If your VCR has an S video output jack, make the

compared to conventional connection.

Getting Started
