Installing the TV
Connecting a DVD Player with A/V Connectors
If your DVD player has video component output connectors: for best picture quality use
the connection described on page 15.

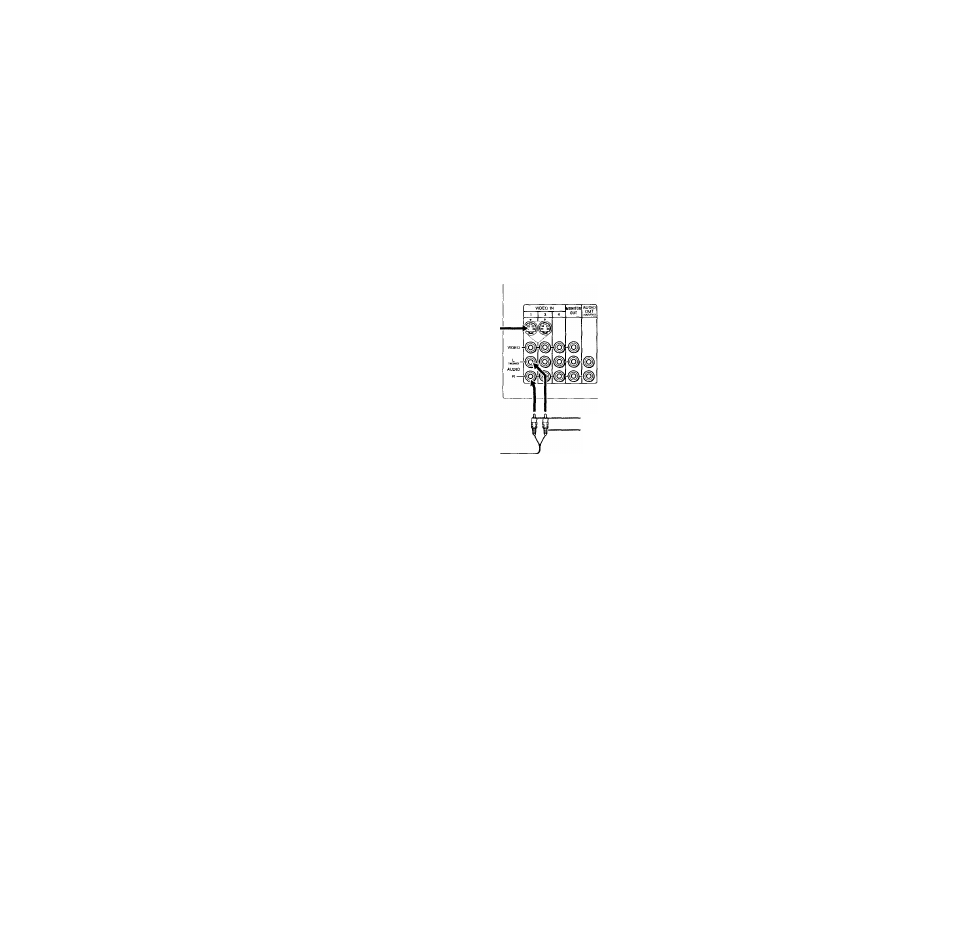

1 Using audio cables, connect the DVD player's audio OUT jacks to
the TV's audio IN jacks.
2 Using an S VIDEO cable, connect the DVD player's S VIDEO jack
to the TV's S VIDEO jack.
TV
S VIDEO ^-anoili'
cable
DVD player
l
;
ne
out
AUDIO fl AUDIO L VIDEO S VIDEO
AUDIO-R (red)
AUDIO-L (white)
Audio cable
