Installing the TV
Connecting a DVD Player with Component
Video Connectors

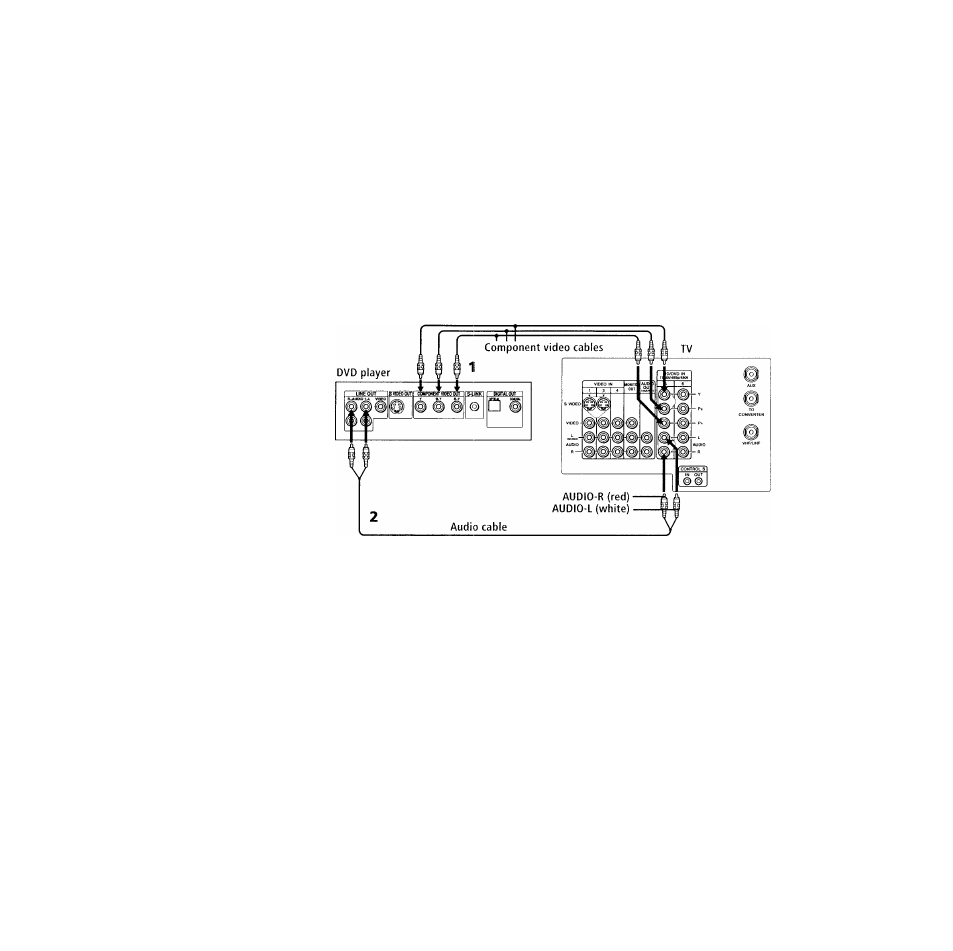

1 Using three separate component video cables, connect the DVD
player's X P
b
, and P
r
jacks to the X P
b
, and P
r
jacks on the TV.
^
The Y,
P
b
,
and
P
r
jacks on your DVD player are sometimes labeled Y,
C
b
,
and
C
r
,
or
Y B-Y and R-Y. If so, connect the cables to like colors.
The Y,
P
b
,
and
P
r
jacks do not provide audio, so audio cables must be connected to
provide sound.
2 Using an audio cable, connect the DVD player's audio OUT jacks
to the TV's audio IN jacks.
