step 2:
Connections
Although you can use either an indoor antenna or
outdoor antenna with your TV, we recommend
connecting to an outdoor antenna or a cable TV system
for improved picture quality.
For the customers who connect a cable box, skip "Step
4; Setting up the TV automatically (AUTO SET UP)"
(page
14) and proceed to "Selecting the cable box
output channel (TV INPUT)" (page 18).
Connecting an antenna
Connect your antenna cable to the VHF/UHF antenna
terminal. If you cannot connect your antenna cable
directly to the terminal, follow one of the instructions
below depending on your cable type.
. VHF only
or
• VHF/UHF
or
• Cable
75-ohm coaxial cable
(Rear of Feature box)
VHF/UHF
B
• VHF only
or
• UHFonly
or
• VHF/UHF
300-ohm twin lead cable
(Rear of Feature box)
VHF/UHF
Antenna connector
75-ohm coaxial cable
> VHF
and
(Rear of Feature box)
VHF/UHF
EAC-66 U/V mixer
(not supplied)
■ UHF
300-ohm twin lead cable
Notes
• Most VHF/UHF combination antennas have a signal splitter.
Remove the splitter before attaching the appropriate
connector.
• For better picture quality, connect an antenna by using a 75-ohm
coaxial cable.
Getting Started
Connecting an antenna/cable TV
system without a VCR
To cable or antenna
Cable
(Rear of Feature box)
VHF/UHF

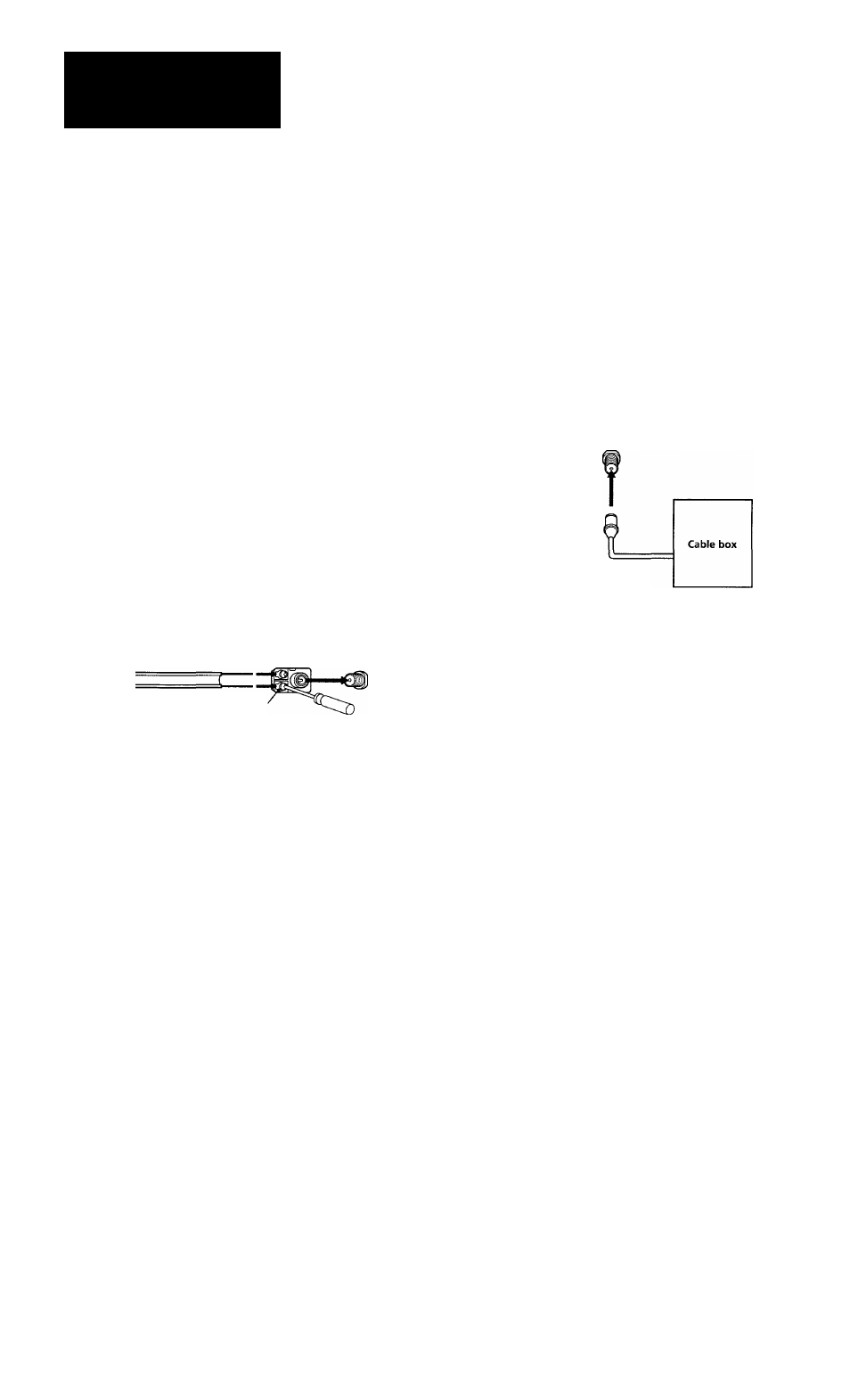

To cable box
If your cable company requires you to connect a cable
box, make the connection as follows:
(Rear of Feature box)
VHF/UHF
Cable
OUT
Cable box
To cable box and cable
(Rear of Feature box)
VHF/UHF AUX
75-ohm coaxial cable
(not supplied)
CATV cable
Pay cable TV systems use scrambled or encoded signals
requiring a cable box* in addition to the normal cable
connection.
* The cable box will be supplied by the cable company.
Note
You cannot watch the signal through AUX connector as a
window picture.
To cable and antenna
(Rear of Feature box)
VHF/UHF AUX
CATV cable
Antenna cable
I
