7 Assembly Instructions
Yield-Pro® Martin Fertilizer
Coulter Row Cleaner Installation
IMPORTANT: Before installing the
Yield-Pro® Martin Fertilizer Coulter
Row Cleaner, set height and offset for
the Martin Fertilizer Coulter.
Single Arm Row Cleaner
NOTE: For Twin Row - Order and install
either YP1225 or YP1625 Single Arm
Martin Row Cleaner. One kit will cover
the entire planter.
Refer to Figure 5
1. Remove both 1/2-13 x 1 3/4 bolts and
1/2-13 lock nuts from right-hand and
left-hand single arm row cleaners.
2. Attach left-hand row cleaner (2) to
mounting plate (4) for a left-hand
coulter.
3. Secure row cleaner (2) to mounting
plate (4) using bolts (3) and lock nuts
removed in step 1.
NOTE: Make sure bolts are inserted
from outside in.
4. Attach right-hand row cleaner (1) to
mounting plate for a right-hand coulter.
5. Secure row cleaner (1) to mounting
plate using bolts (3) and lock nuts re-
moved in step 1.
6. Repeat steps for all openers.

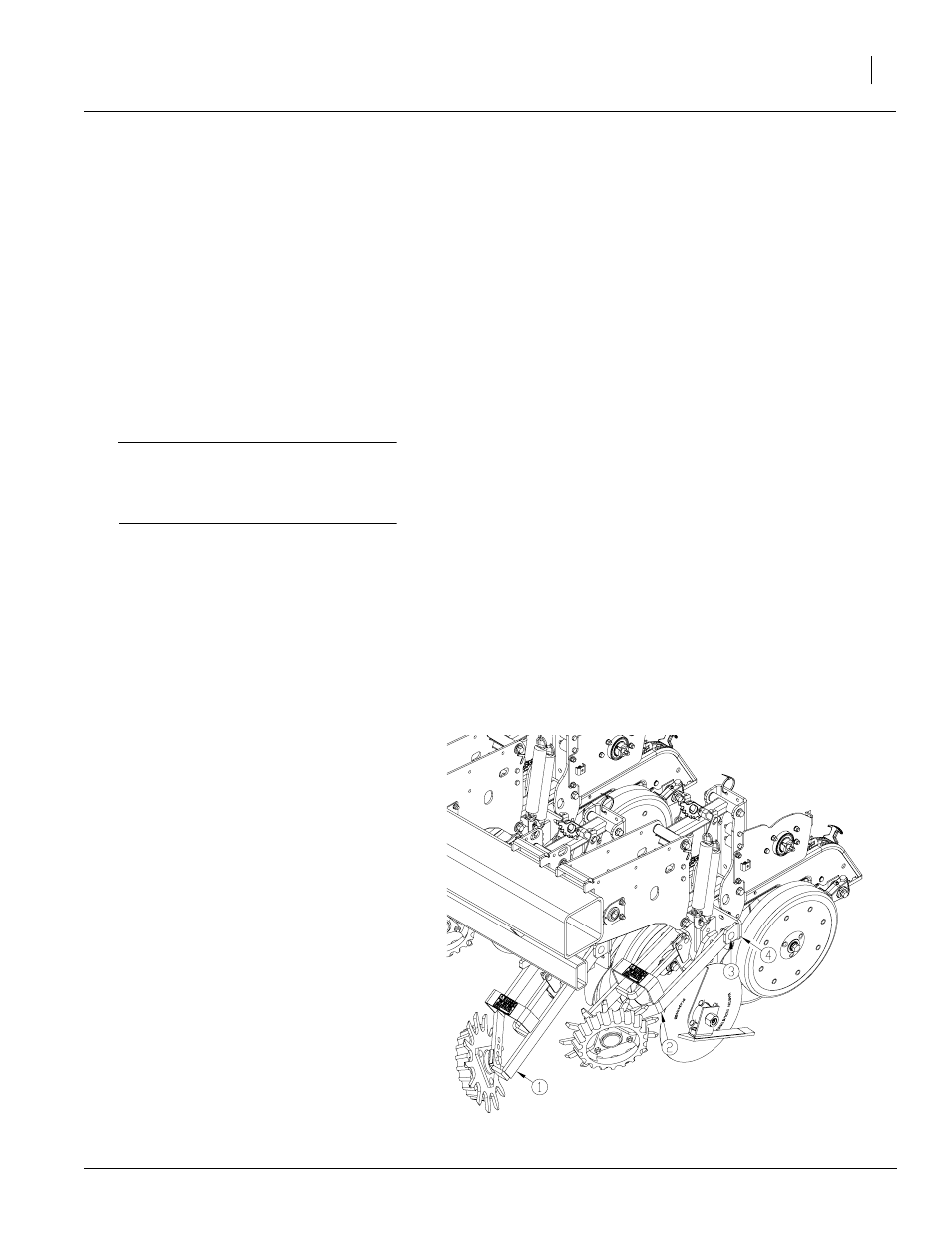

Figure 5
Single Arm Installation
12. Install equal number of left and right units
on planter.
13. To complete Martin Fertilizer Coulter in-
stallation, please refer to the Installation
and Adjustment Instructions included
with the Martin Fertilizer Coulter Kit.
NOTE: If needed, adjust furrow control lever
to match selected depth level. Refer to In-
stallation and Adjustment Instructions in-
cluded with the Martin Fertilizer Coulter Kit.
